Bilstein shocks, struts and kits for the 2020 Audi A5 Quattro (AWD)

Same parts as every 2018–2021 A5 Quattro (AWD), showing 2020. See the 2018–2021 page

Bilstein lists 19 parts for the 2020 Audi A5 Quattro (AWD), across 5 lines from the B4 OE Replacement to the B16 coilovers. Lowered setups are listed too.

Front, extended
500–533 mm19.7–21.0 in
Front, collapsed
354–400 mm13.9–15.7 in
Rear, extended
582–629 mm22.9–24.8 in
Rear, collapsed
376–420 mm14.8–16.5 in
Lowering options
10–50 mm

Narrow it to your A5 Quattro (AWD)

Submodel
Body

Good, better, best

One pick from each Bilstein tier that fits at stock height, compared side by side.

Front

Shocks

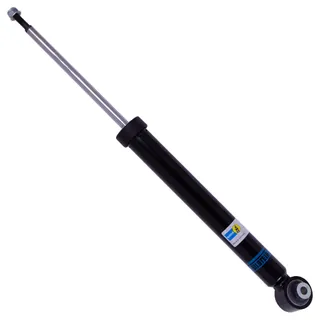

GoodB4 OE Replacement

19-262352

B4 OE Replacement Shock Absorber

Sold each · 2 per axle

  • Standard Suspension (53mm diameter strut) without Electronic Suspension

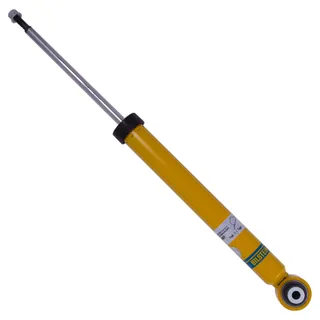

BetterB6 Performance

24-262286

B6 Performance Shock Absorber

Sold each · 2 per axle

  • Standard Suspension (53mm diameter strut) without Electronic Suspension

Rear

Shocks

Answer 1 quick question to compare

These shocks differ by version, so we need to know which A5 Quattro (AWD) you have.

Body

19 parts for the 2020 Audi A5 Quattro (AWD)

Grouped by where they go, then by Bilstein line. Parts made only for a lifted or lowered vehicle say so.

Front

Good B4 OE Replacement

Better B6 Performance

Better B8 Performance Plus

Rear

Good B4 OE Replacement

Better B6 Performance

Better B8 Performance Plus

Front and rear

Best B12 Pro-Kit & Sportline

46-275349 B12 Pro-Kit Suspension Kit

Sold eachFor lowered vehicles

  • Front Lowered Height: 30mm, up to 1080kg Axle Load
  • Rear Lowered Height: 30mm, up to 1180kg Axle Load
  • 53mm Outside Strut Diameter
  • Without Electronic Suspension
  • Check which applies to your vehicle

Best B16 coilovers

48-262316 B16 PSS10 Suspension Kit

Sold eachFor lowered vehicles

  • Front Lowered Height: 35-50mm, up to 1075kg Axle Load
  • Rear Lowered Height: 35-50mm, up to 1175kg Axle Load
  • 53mm Outside Strut Diameter
  • Without Electronic Suspension
  • Check which applies to your vehicle

48-275071 B16 PSS10 Suspension Kit

Sold eachFor lowered vehicles

  • Front Lowered Height: 30-50mm, up to 1260kg Axle Load
  • Rear Lowered Height: 30-50mm, up to 1250kg Axle Load
  • 49mm Outside Strut Diameter
  • Without Electronic Suspension
  • Check which applies to your vehicle

49-290868 B16 DampTronic Suspension Kit

Sold eachFor lowered vehicles

  • Front Lowered Height: 10-35mm, up to 1260kg Axle Load
  • Rear Lowered Height: 15-35mm, up to 1330kg Axle Load
  • With Electronic Suspension
  • Without Self-Leveling
  • Check which applies to your vehicle

Not sure which one is right?

Tell us how you use the A5 Quattro (AWD) and we'll pick with you.
