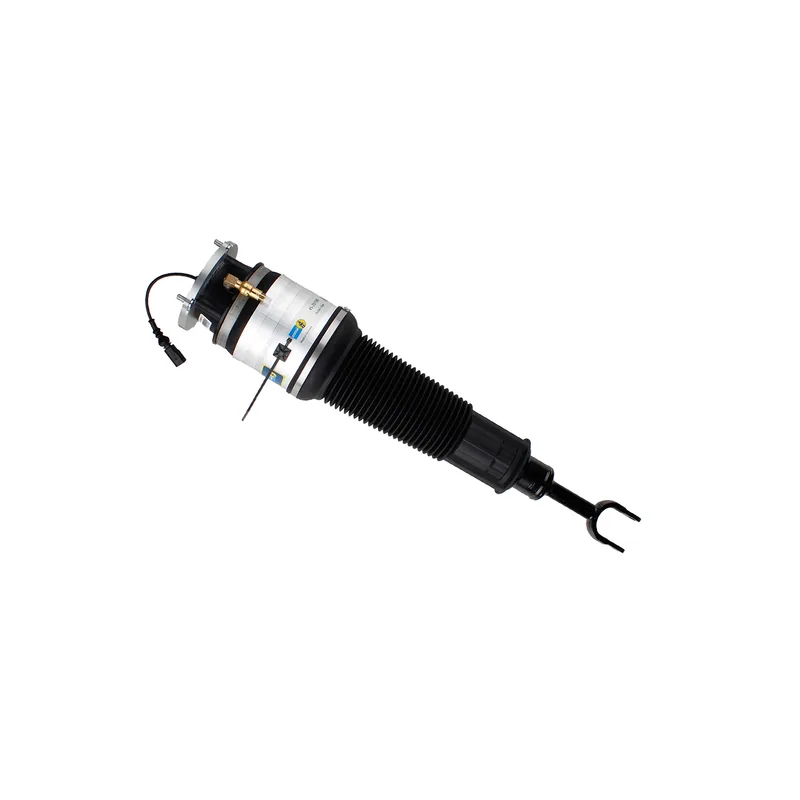

Bilstein 45-257186 B4 OE Replacement Air Air Suspension Strut
Sold each
Call (780) 473-2424
We reply to price requests within one business day.
Will it fit your vehicle?
Matching part for the other side
- 45-241994 B4 OE Replacement Air Air Suspension Strut (Front left)
- Replaces OE
Audi 3D0 616 040 AC, Audi 3D0 616 040 AD, Audi 4E0 616 040 AB, Audi 4E0 616 040 AF, Audi 4E0 616 040 AH, Audi 4E0 616 040 AL and 5 more
Audi 4E0 616 040 AM, Audi 4E0 616 040 T, Volkswagen 3D0 616 040 Q, Volkswagen 3D0 616 040 S, Volkswagen 3D0 616 040 T
- Country of origin
- Germany
- Box
- Ships in Bilstein's own box (about 81 × 22 × 22 cm, 9.1 kg)
100% genuine Bilstein, from authorized North American distribution.
Fitment
19 vehicles, newest years first
| Vehicle | Years | Submodels | Position | Drive / body / engine | Notes |
|---|---|---|---|---|---|
| Audi A8 Quattro (AWD) | 2010 | Base, L | Front right | All |
|
| Audi A8 Quattro (AWD) | 2005–2009 | Base, L | Front right | All |
|
| Audi A8 Quattro (AWD) | 2004 | L | Front right | All |
|
| Volkswagen Phaeton | 2004–2006 | V8, W12 | Front right | All | — |
Specifications
As Bilstein publishes them.
- Extended Length (in)
- 27.61
- Collapsed Length (in)
- 22.76
- Extended Length (mm)
- 701.2
- Collapsed Length (mm)
- 578.3
- Upper Mount Type
- Special
- Lower Mount Type
- Fork
- Internal Design
- Twintube
- Finish
- Black Paint
- Boot Included
- No
- Spring Seat Included
- No
Installation & warranty
Bilstein installation instructions (PDF)
Limited Lifetime Warranty · Warranty terms (PDF)
100% genuine Bilstein, from authorized North American distribution.
