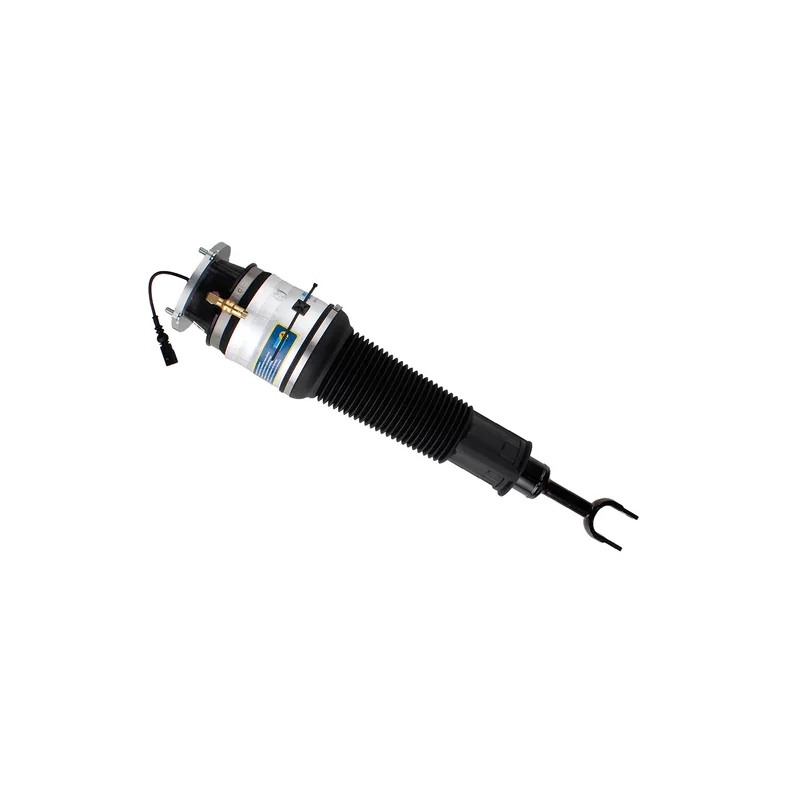

Bilstein 45-241994 B4 OE Replacement Air Air Suspension Strut
Sold each
Call (780) 473-2424
We reply to price requests within one business day.
Will it fit your vehicle?
Matching part for the other side
- 45-257186 B4 OE Replacement Air Air Suspension Strut (Front right)
- Replaces OE
Audi 3D0 616 039 AC, Audi 3D0 616 039 AD, Audi 4E0 616 039 AB, Audi 4E0 616 039 AF, Audi 4E0 616 039 AH, Audi 4E0 616 039 AL and 5 more
Audi 4E0 616 039 AM, Audi 4E0 616 039 T, Volkswagen 3D0 616 039 Q, Volkswagen 3D0 616 039 S, Volkswagen 3D0 616 039 T
- Country of origin
- Germany
- Box
- Ships in Bilstein's own box (about 81 × 22 × 22 cm, 9.1 kg)
100% genuine Bilstein, from authorized North American distribution.
Fitment
19 vehicles, newest years first
| Vehicle | Years | Submodels | Position | Drive / body / engine | Notes |
|---|---|---|---|---|---|
| Audi A8 Quattro (AWD) | 2010 | Base, L | Front left | All |
|
| Audi A8 Quattro (AWD) | 2005–2009 | Base, L | Front left | All |
|
| Audi A8 Quattro (AWD) | 2004 | L | Front left | All |
|
| Volkswagen Phaeton | 2004–2006 | V8, W12 | Front left | All | — |
Specifications
As Bilstein publishes them.
- Extended Length (in)
- 27.61
- Collapsed Length (in)
- 22.76
- Extended Length (mm)
- 701.2
- Collapsed Length (mm)
- 578.3
- Upper Mount Type
- Special
- Lower Mount Type
- Fork
- Internal Design
- Twintube
- Finish
- Black Paint
- Boot Included
- No
- Spring Seat Included
- No
Installation & warranty
Bilstein installation instructions (PDF)
Limited Lifetime Warranty · Warranty terms (PDF)
100% genuine Bilstein, from authorized North American distribution.
