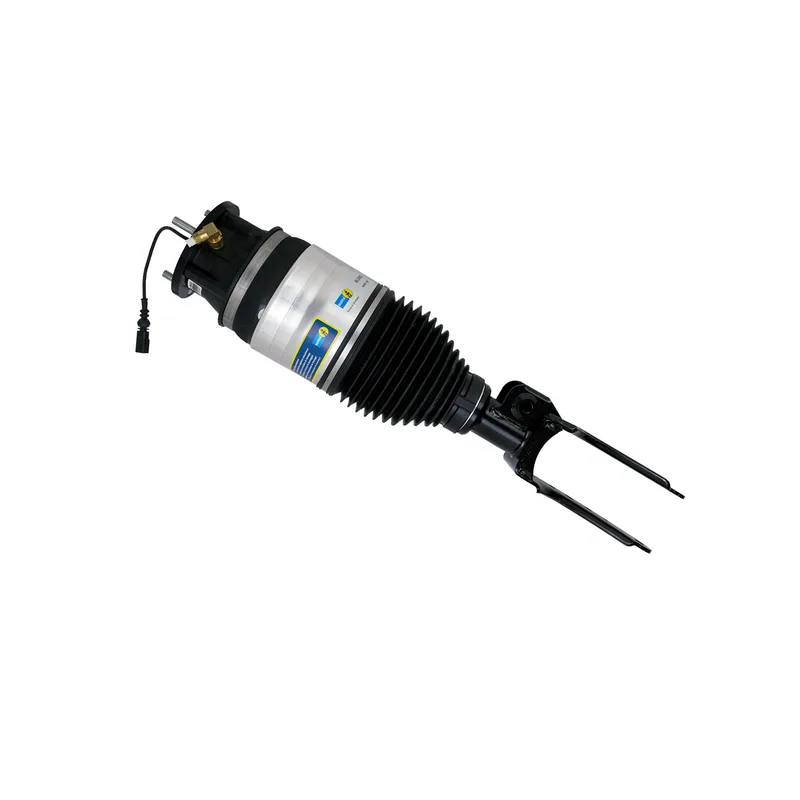

Bilstein 45-240263 B4 OE Replacement Air Air Suspension Strut

Sold each

Call (780) 473-2424

We reply to price requests within one business day.

Will it fit your vehicle?

Matching part for the other side

45-240256 B4 OE Replacement Air Air Suspension Strut (Front left)

Want it installed?Eskimo Auto Repair installs Bilstein suspension in Edmonton.

Replaces OE: Porsche 955 358 040 00, Porsche 958 343 044 50, Porsche 958 343 044 51, Porsche 958 343 046 50, Porsche 958 343 048 50, Porsche 958 343 048 51 and 12 more
Porsche 958 358 040 00, Porsche 958 358 040 01, Porsche 958 358 040 03, Porsche 958 358 040 04, Porsche 958 358 040 10, Porsche 958 358 040 11, Porsche 958 358 040 14, Porsche 958 358 040 20, Porsche 958 358 040 22, Porsche 958 358 040 40, Volkswagen 7P6 616 040 K, Volkswagen 7P6 616 040 N
Country of origin: Germany
Box: Ships in Bilstein's own box (about 79 × 22 × 22 cm, 10.2 kg)

100% genuine Bilstein, from authorized North American distribution.

Fitment

52 vehicles, newest years first

Vehicle	Years	Submodels	Position	Drive / body / engine	Notes
Porsche Cayenne	Years	2018	Submodels	Base, GTS, S, S E-Hybrid, S E-Hybrid Platinum Edition, Turbo, Turbo S	Position	Front right	Drive / body / engine	All	Notes	Spring type: Front: Air , Rear: Air With Air Suspension Check which applies
Porsche Cayenne	Years	2018	Submodels	Platinum Edition	Position	Front right	Drive / body / engine	All	Notes	With Air Suspension Check which applies
Porsche Cayenne	Years	2017	Submodels	Base, GTS, Platinum Edition, S, S E-Hybrid, S E-Hybrid Platinum Edition, Turbo, Turbo S	Position	Front right	Drive / body / engine	All	Notes	Spring type: Front: Air , Rear: Air
Porsche Cayenne	Years	2016	Submodels	Base, Diesel, S, S E-Hybrid	Position	Front right	Drive / body / engine	All	Notes	Spring type: Front: Air , Rear: Air
Porsche Cayenne	Years	2016	Submodels	GTS, Turbo, Turbo S	Position	Front right	Drive / body / engine	All	Notes	—
Porsche Cayenne	Years	2015	Submodels	Diesel, S, S E-Hybrid	Position	Front right	Drive / body / engine	All	Notes	Spring type: Front: Air , Rear: Air
Porsche Cayenne	Years	2015	Submodels	GTS, Turbo	Position	Front right	Drive / body / engine	All	Notes	—
Porsche Cayenne	Years	2014	Submodels	Base, Diesel, Diesel Platinum Edition, Platinum Edition, S, S Hybrid	Position	Front right	Drive / body / engine	All	Notes	Spring type: Front: Air , Rear: Air
Porsche Cayenne	Years	2013–2014	Submodels	GTS, Turbo, Turbo S	Position	Front right	Drive / body / engine	All	Notes	—
Porsche Cayenne	Years	2013	Submodels	Base, Diesel, S, S Hybrid	Position	Front right	Drive / body / engine	All	Notes	Spring type: Front: Air , Rear: Air
Porsche Cayenne	Years	2011–2012	Submodels	Base, S, S Hybrid	Position	Front right	Drive / body / engine	All	Notes	Spring type: Front: Air , Rear: Air
Porsche Cayenne	Years	2011–2012	Submodels	Turbo	Position	Front right	Drive / body / engine	All	Notes	—

Specifications

As Bilstein publishes them.

Extended Length (in): 27.10
Collapsed Length (in): 22.78
Extended Length (mm): 688.4
Collapsed Length (mm): 578.5
Upper Mount Type: Special
Lower Mount Type: Fork
Internal Design: Twintube
Finish: Black Paint
Boot Included: No
Spring Seat Included: No

Installation & warranty

Bilstein installation instructions 1 (PDF) Bilstein installation instructions 2 (PDF)

Limited Lifetime Warranty · Warranty terms (PDF)

100% genuine Bilstein, from authorized North American distribution.
