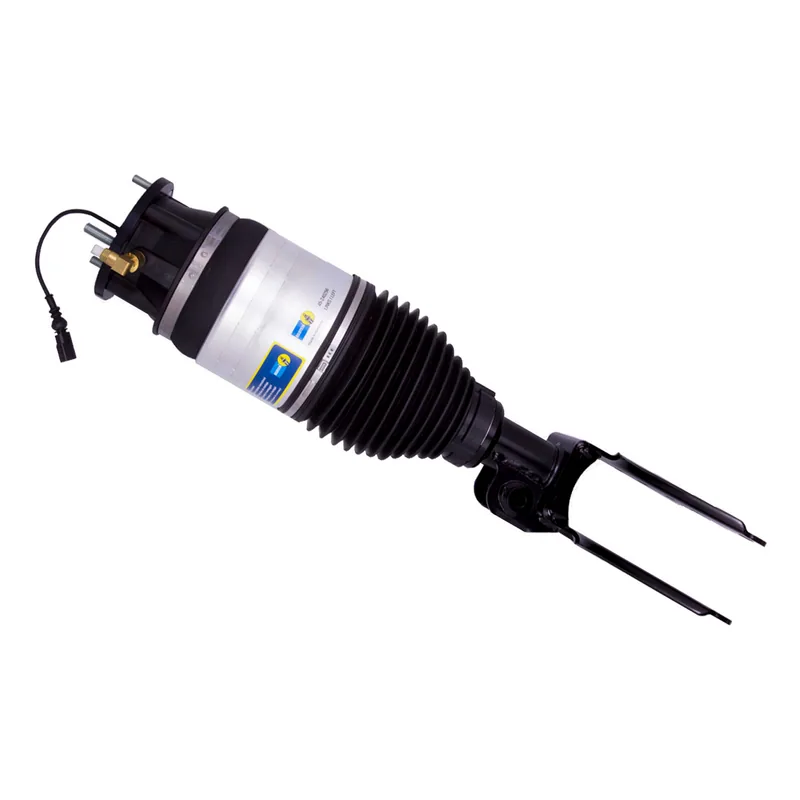

Bilstein 45-240256 B4 OE Replacement Air Air Suspension Strut

Sold each

Call (780) 473-2424

We reply to price requests within one business day.

Will it fit your vehicle?

Matching part for the other side

45-240263 B4 OE Replacement Air Air Suspension Strut (Front right)

Want it installed?Eskimo Auto Repair installs Bilstein suspension in Edmonton.

Replaces OE: Porsche 955 358 039 00, Porsche 958 343 043 50, Porsche 958 343 043 51, Porsche 958 343 045 50, Porsche 958 343 045 51, Porsche 958 343 047 50 and 15 more
Porsche 958 343 047 51, Porsche 958 358 039 00, Porsche 958 358 039 01, Porsche 958 358 039 03, Porsche 958 358 039 04, Porsche 958 358 039 06, Porsche 958 358 039 10, Porsche 958 358 039 11, Porsche 958 358 039 14, Porsche 958 358 039 15, Porsche 958 358 039 20, Porsche 958 358 039 22, Porsche 958 358 039 40, Volkswagen 7P6 616 039 K, Volkswagen 7P6 616 039 N
Country of origin: Germany
Box: Ships in Bilstein's own box (about 79 × 22 × 22 cm, 10.2 kg)

100% genuine Bilstein, from authorized North American distribution.

Fitment

52 vehicles, newest years first

Vehicle	Years	Submodels	Position	Drive / body / engine	Notes
Porsche Cayenne	Years	2018	Submodels	Base, GTS, S, S E-Hybrid, S E-Hybrid Platinum Edition, Turbo, Turbo S	Position	Front left	Drive / body / engine	All	Notes	Spring type: Front: Air , Rear: Air With Air Suspension Check which applies
Porsche Cayenne	Years	2018	Submodels	Platinum Edition	Position	Front left	Drive / body / engine	All	Notes	With Air Suspension Check which applies
Porsche Cayenne	Years	2017	Submodels	Base, GTS, Platinum Edition, S, S E-Hybrid, S E-Hybrid Platinum Edition, Turbo, Turbo S	Position	Front left	Drive / body / engine	All	Notes	Spring type: Front: Air , Rear: Air
Porsche Cayenne	Years	2016	Submodels	Base, Diesel, S, S E-Hybrid	Position	Front left	Drive / body / engine	All	Notes	Spring type: Front: Air , Rear: Air
Porsche Cayenne	Years	2016	Submodels	GTS, Turbo, Turbo S	Position	Front left	Drive / body / engine	All	Notes	—
Porsche Cayenne	Years	2015	Submodels	Diesel, S, S E-Hybrid	Position	Front left	Drive / body / engine	All	Notes	Spring type: Front: Air , Rear: Air
Porsche Cayenne	Years	2015	Submodels	GTS, Turbo	Position	Front left	Drive / body / engine	All	Notes	—
Porsche Cayenne	Years	2014	Submodels	Base, Diesel, Diesel Platinum Edition, Platinum Edition, S, S Hybrid	Position	Front left	Drive / body / engine	All	Notes	Spring type: Front: Air , Rear: Air
Porsche Cayenne	Years	2013–2014	Submodels	GTS, Turbo, Turbo S	Position	Front left	Drive / body / engine	All	Notes	—
Porsche Cayenne	Years	2013	Submodels	Base, Diesel, S, S Hybrid	Position	Front left	Drive / body / engine	All	Notes	Spring type: Front: Air , Rear: Air
Porsche Cayenne	Years	2011–2012	Submodels	Base, S, S Hybrid	Position	Front left	Drive / body / engine	All	Notes	Spring type: Front: Air , Rear: Air
Porsche Cayenne	Years	2011–2012	Submodels	Turbo	Position	Front left	Drive / body / engine	All	Notes	—

Specifications

As Bilstein publishes them.

Extended Length (in): 27.10
Collapsed Length (in): 22.78
Extended Length (mm): 688.4
Collapsed Length (mm): 578.5
Upper Mount Type: Special
Lower Mount Type: Fork
Internal Design: Twintube
Finish: Black Paint
Boot Included: No
Spring Seat Included: No

Installation & warranty

Bilstein installation instructions 1 (PDF) Bilstein installation instructions 2 (PDF)

Limited Lifetime Warranty · Warranty terms (PDF)

100% genuine Bilstein, from authorized North American distribution.

BILSTEIN is a trademark of thyssenkrupp Bilstein GmbH. Eskimo is an independent retailer.
