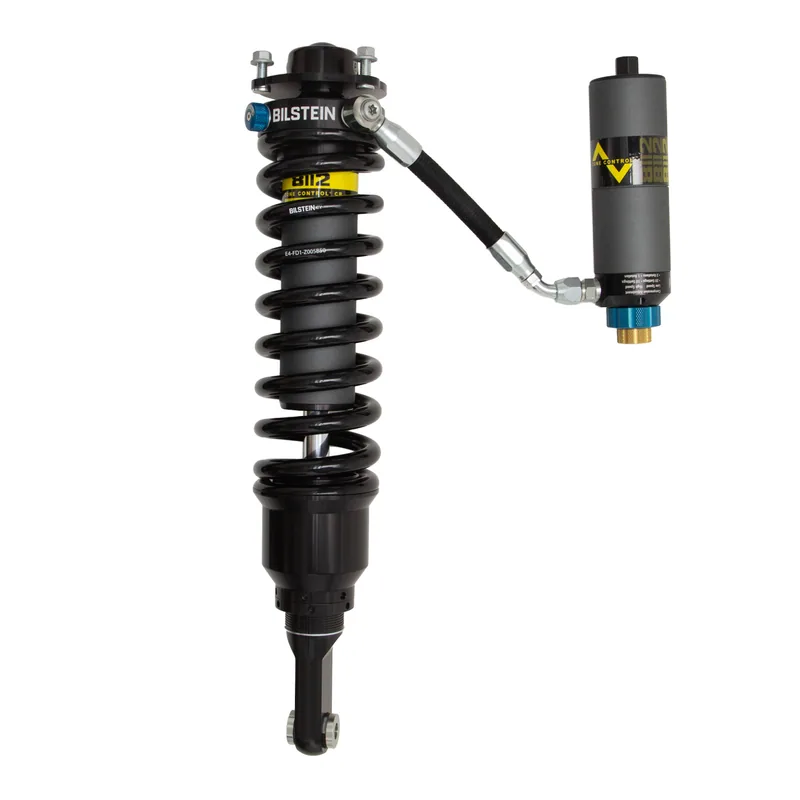

Bilstein 41-326251 B8 8112 ZoneControl CR DSA+ Coilover Assembly
BestB8 8112

Bilstein 41-326251 B8 8112 ZoneControl CR DSA+ Coilover Assembly

Sold each

Call (780) 473-2424

We reply to price requests within one business day.

Will it fit your vehicle?

Matching part for the other side

Want it installed?Eskimo Auto Repair installs Bilstein suspension in Edmonton.
Country of origin
United States
Box
Ships in Bilstein's own box (about 65 × 24 × 24 cm, 18.3 kg)

100% genuine Bilstein, from authorized North American distribution.

Fitment

55 vehicles, newest years first

Lexus GX4602023Base, Black Line Edition, Luxury, PremiumFront rightAll
  • Provides 1-3.2" Front Lift
Lexus GX4602010–2022Base, PremiumFront rightAll
  • Provides 1-3.2" Front Lift
Toyota 4Runner2023–2024TRD Off-Road, TRD Off-Road PremiumFront rightAll
  • Provides 1.2-3.5" Front Lift
  • With Kinetic Dynamic Suspension System (KDSS)
  • Check which applies
Toyota 4Runner2020–2022TRD Off-Road, TRD Off-Road Premium, VentureFront rightAll
  • Provides 1.2-3.5" Front Lift
  • With Kinetic Dynamic Suspension System (KDSS)
  • Check which applies
Toyota 4Runner2018–2019TRD Off-Road, TRD Off-Road PremiumFront rightAll
  • Provides 1.2-3.5" Front Lift
  • With Kinetic Dynamic Suspension System (KDSS)
  • Check which applies
Toyota 4Runner2017TRD Off-RoadFront rightAll
  • Provides 1.2-3.5" Front Lift
  • With Kinetic Dynamic Suspension System (KDSS)
  • Check which applies
Toyota 4Runner2010–2016TrailFront rightAll
  • Provides 1.2-3.5" Front Lift
  • With Kinetic Dynamic Suspension System (KDSS)
  • Check which applies

Specifications

As Bilstein publishes them.

Extended Length (in)
22.24
Collapsed Length (in)
17.43
Extended Length (mm)
564.8
Collapsed Length (mm)
442.6
Body Diameter (od)
2.65 in.
Piston Diameter
60mm
Upper Mount Type
Special
Lower Mount Type
Eye 14.1mm
Body Design
Smooth Body (Coilover)
Internal Design
Monotube
Finish
Dampers: EVO Grey/Springs: Black
Reservoir
Yes
Adjustable Damping
Click Adjusters for High and Low Speed Compression plus internal Bump Stop (JCO)
Boot Included
No
Spring Seat Included
Yes
Body Material
Steel
Front Main Spring Rate (lbs/in)
600
Shaft Diameter (mm)
22.0

Installation & warranty

Bilstein installation instructions (PDF)
Limited 2-Year Warranty · Warranty terms (PDF)

100% genuine Bilstein, from authorized North American distribution.

BILSTEIN is a trademark of thyssenkrupp Bilstein GmbH. Eskimo is an independent retailer.
