Bilstein 41-324158 B8 8112 ZoneControl CR Coilover Assembly
BestB8 8112

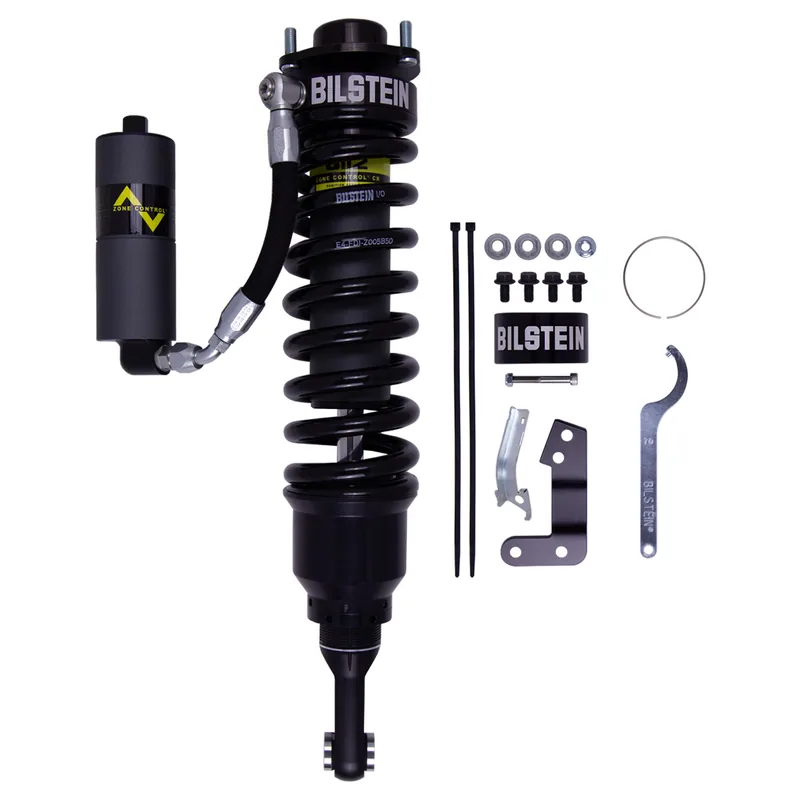

Bilstein 41-324158 B8 8112 ZoneControl CR Coilover Assembly

Sold each

Call (780) 473-2424

We reply to price requests within one business day.

Will it fit your vehicle?

Matching part for the other side

Want it installed?Eskimo Auto Repair installs Bilstein suspension in Edmonton.
Replaces Bilstein
41-298343
Country of origin
United States
Box
Ships in Bilstein's own box (about 66 × 24 × 24 cm, 14.2 kg)

100% genuine Bilstein, from authorized North American distribution.

Fitment

55 vehicles, newest years first

Lexus GX4602023Base, Black Line Edition, Luxury, PremiumFront leftAll
  • Provides 1-3.2" Front Lift
Lexus GX4602010–2022Base, PremiumFront leftAll
  • Provides 1-3.2" Front Lift
Toyota 4Runner2023–2024TRD Off-Road, TRD Off-Road PremiumFront leftAll
  • Provides 1.2-3.5" Front Lift
  • With Kinetic Dynamic Suspension System (KDSS)
  • Check which applies
Toyota 4Runner2020–2022TRD Off-Road, TRD Off-Road Premium, VentureFront leftAll
  • Provides 1.2-3.5" Front Lift
  • With Kinetic Dynamic Suspension System (KDSS)
  • Check which applies
Toyota 4Runner2018–2019TRD Off-Road, TRD Off-Road PremiumFront leftAll
  • Provides 1.2-3.5" Front Lift
  • With Kinetic Dynamic Suspension System (KDSS)
  • Check which applies
Toyota 4Runner2017TRD Off-RoadFront leftAll
  • Provides 1.2-3.5" Front Lift
  • With Kinetic Dynamic Suspension System (KDSS)
  • Check which applies
Toyota 4Runner2010–2016TrailFront leftAll
  • Provides 1.2-3.5" Front Lift
  • With Kinetic Dynamic Suspension System (KDSS)
  • Check which applies

Specifications

As Bilstein publishes them.

Extended Length (in)
22.80
Collapsed Length (in)
17.99
Extended Length (mm)
579.1
Collapsed Length (mm)
456.9
Body Diameter (od)
2.65 in.
Piston Diameter
60mm
Upper Mount Type
Special
Lower Mount Type
Eye 14.1mm
Body Design
Smooth Body (Coilover)
Internal Design
Monotube
Finish
Dampers: EVO Grey / Springs: Black
Reservoir
Yes
Adjustable Damping
Non-Adjustable
Boot Included
No
Spring Seat Included
Yes
Body Material
Steel
Front Main Spring Rate (lbs/in)
600 lbs
Shaft Diameter (mm)
22.0
Optional Heavy Load Springs
53-291387, 53-332837

Installation & warranty

Bilstein installation instructions (PDF)
Limited 2-Year Warranty · Warranty terms (PDF)

100% genuine Bilstein, from authorized North American distribution.
