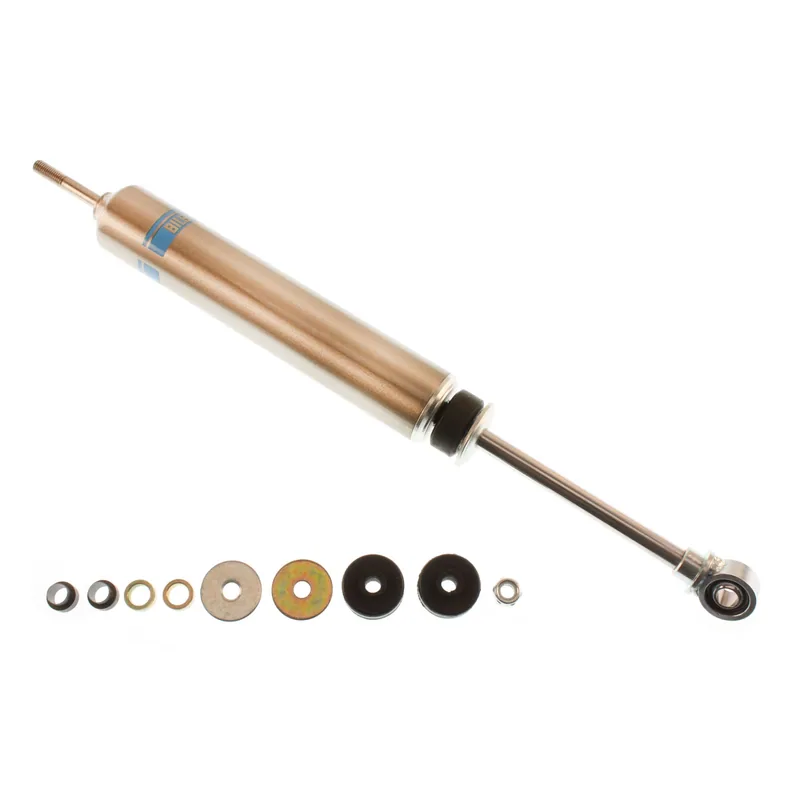

Bilstein F4-BOA-0000304 M 7100 Classic Shock Absorber
Sold each
Call (780) 473-2424
We reply to price requests within one business day.
Will it fit your vehicle?
- Country of origin
- United States
- Box
- Ships in Bilstein's own box (about 54 × 11 × 11 cm, 2.2 kg)
100% genuine Bilstein, from authorized North American distribution.
Fitment
A universal part with no vehicle list of its own. Tell us your vehicle and we'll confirm it suits.
Specifications
As Bilstein publishes them.
- Extended Length (in)
- 18.74
- Collapsed Length (in)
- 12.15
- Extended Length (mm)
- 476.0
- Collapsed Length (mm)
- 308.6
- Piston Diameter
- 46mm
- Upper Mount Type
- Stem
- Lower Mount Type
- 12mm Heim
- Body Design
- Smooth Body (Non-Coilover)
- Internal Design
- Monotube
- Finish
- Nickel Plated with Clear Powder Coat
- Reservoir
- No
- Spring Seat Included
- No
- Stroke/travel Length (in)
- 6.59
- Compression @0.52m/s
- 1150
- Rebound @0.52m/s
- 2200
- Mount Type
- Stem-to-Eye
- Optional Reservoir Clamp
- N/A
- Shaft Diameter (mm)
- 11.0
- Valving Type
- Medium
- Racing Type
- Off-Road
- Stroke/travel Length (in) Rounded
- 7
- Collapsed Length (in) Incremental
- 12-12.99
- Extended Length (in) Incremental
- 19-19.99
Installation & warranty
Bilstein installation instructions (PDF) Bilstein general installation instructions (PDF)
Limited 90-Day Warranty · Warranty terms (PDF)
100% genuine Bilstein, from authorized North American distribution.
