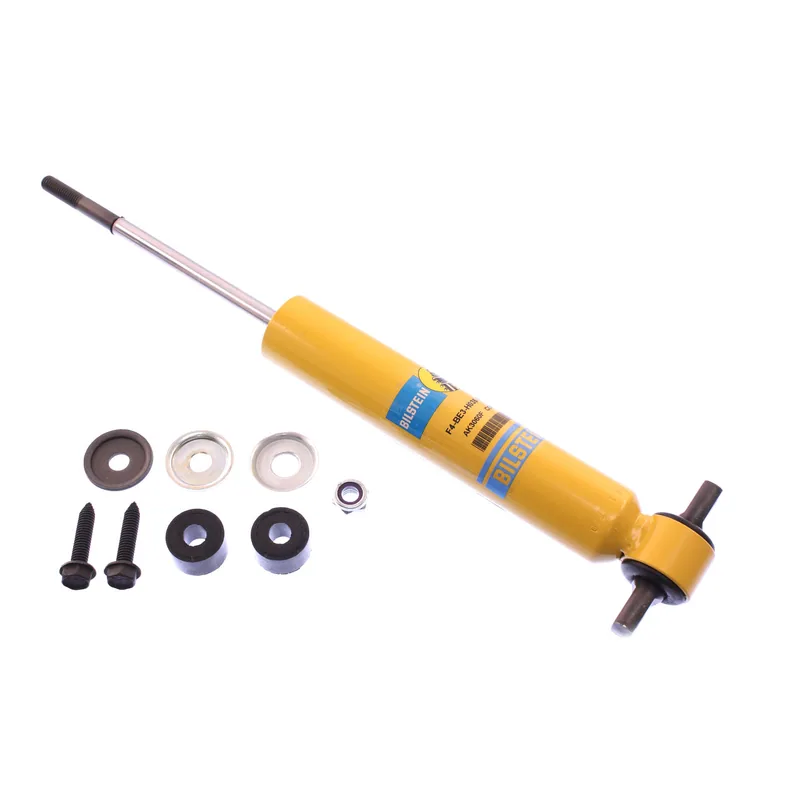

Bilstein F4-BE3-H035-M0 AK Series Shock Absorber
Sold each
Call (780) 473-2424
We reply to price requests within one business day.
Will it fit your vehicle?
- Country of origin
- United States
- Box
- Ships in Bilstein's own box (about 41 × 13 × 13 cm, 1.7 kg)
100% genuine Bilstein, from authorized North American distribution.
Fitment
A universal part with no vehicle list of its own. Tell us your vehicle and we'll confirm it suits.
Specifications
As Bilstein publishes them.
- Extended Length (in)
- 13.46
- Collapsed Length (in)
- 8.73
- Extended Length (mm)
- 342.0
- Collapsed Length (mm)
- 221.8
- Piston Diameter
- 36mm
- Shaft Diameter
- 11mm
- Upper Mount Type
- Stem
- Lower Mount Type
- Bar Pin
- Body Design
- Stock Mount Smooth Body
- Internal Design
- Monotube
- Finish
- Yellow Paint
- Adjustable Damping
- Non-Adjustable
- Boot Included
- No
- Spring Seat Included
- No
- Valve Code
- 110/233 COB
- Stroke/travel Length (in)
- 4.73
- Compression @0.26m/s
- 980
- Compression @0.52m/s
- 1150
- Rebound @0.26m/s
- 565
- Rebound @0.52m/s
- 770
- Body Material
- Steel
- Replacement Mounting Kit
- B4-KT1-Z228A00
- Piston Type
- Digressive
- Base Valve
- No
- Service Type
- Factory Rebuildable
- Racing Type
- Circle Track
- Racing Class
- Stock Car
- Stroke/travel Length (in) Rounded
- 5
Installation & warranty
Bilstein installation instructions (PDF) Bilstein general installation instructions (PDF)
Limited 90-Day Warranty · Warranty terms (PDF)
100% genuine Bilstein, from authorized North American distribution.
