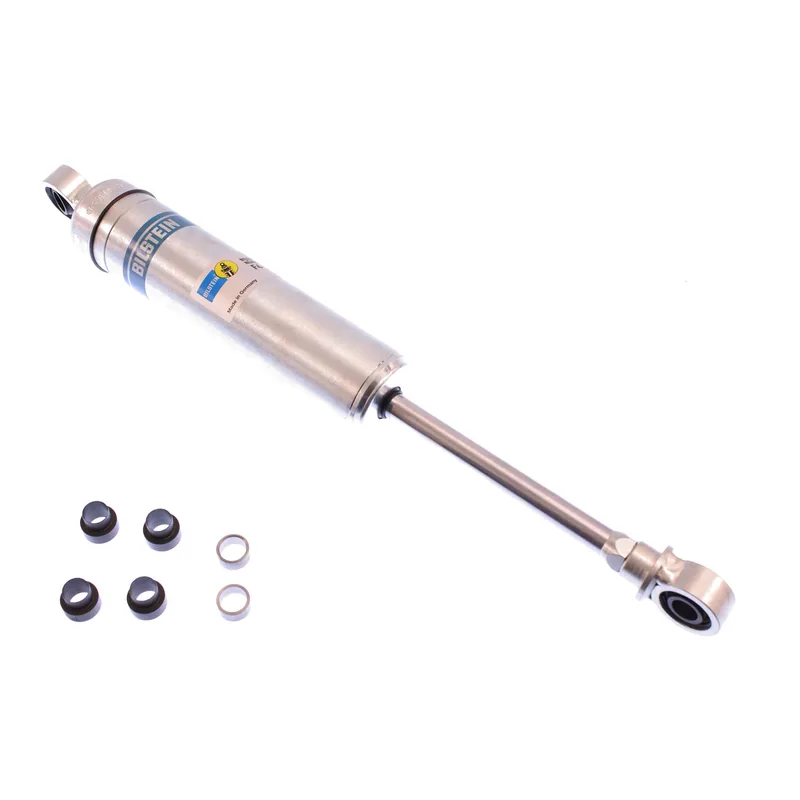

Bilstein F4-B46-0930-H0 M 7100 Classic Shock Absorber
Sold each
Call (780) 473-2424
We reply to price requests within one business day.
Will it fit your vehicle?
- Replaces Bilstein
- F4-B46-0930-H5
- Country of origin
- United States
- Box
- Ships in Bilstein's own box (about 48 × 11 × 11 cm, 1.9 kg)
100% genuine Bilstein, from authorized North American distribution.
Fitment
A universal part with no vehicle list of its own. Tell us your vehicle and we'll confirm it suits.
Specifications
As Bilstein publishes them.
- Extended Length (in)
- 16.24
- Collapsed Length (in)
- 11.24
- Extended Length (mm)
- 412.5
- Collapsed Length (mm)
- 285.5
- Piston Diameter
- 46mm
- Upper Mount Type
- 1/2in Heim
- Lower Mount Type
- 1/2in Heim
- Body Design
- Smooth Body (Coilover)
- Internal Design
- Monotube
- Finish
- Zinc Plated
- Reservoir
- No
- Spring Seat Included
- No
- Stroke/travel Length (in)
- 5.00
- Compression @0.52m/s
- 1600
- Rebound @0.52m/s
- 3500
- Mount Type
- Eye-to-Eye
- Optional Reservoir Clamp
- N/A
- Shaft Diameter (mm)
- 14.0
- Valving Type
- Firm
- Racing Type
- Off-Road
- Stroke/travel Length (in) Rounded
- 5
- Collapsed Length (in) Incremental
- 11-11.99
- Extended Length (in) Incremental
- 16-16.99
Installation & warranty
Bilstein general installation instructions (PDF)
Limited 90-Day Warranty · Warranty terms (PDF)
