ComponentMotorsport

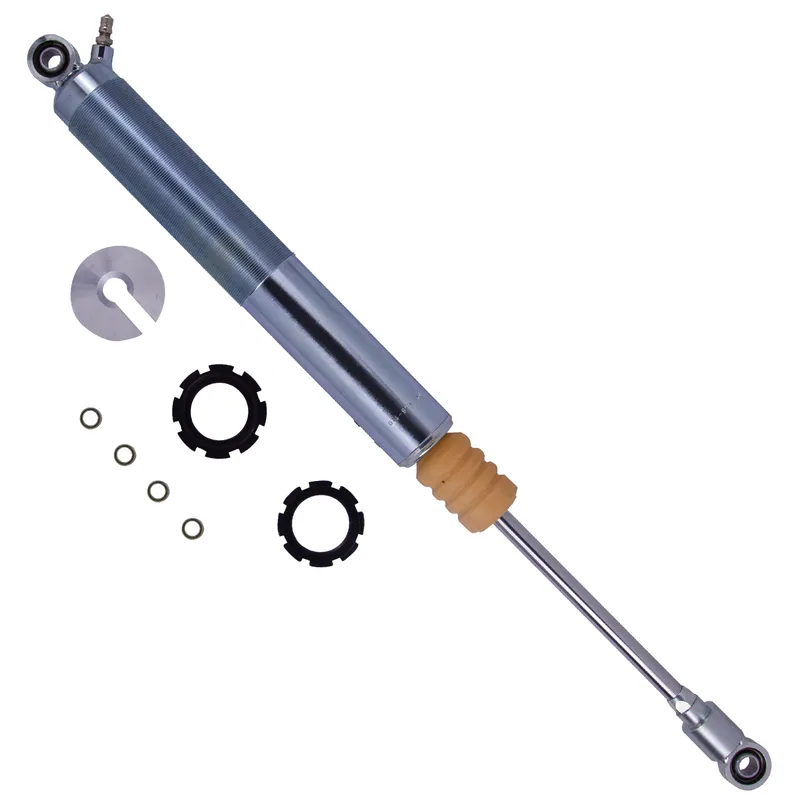

Bilstein B46-1103S M 7100 Coilover Shock Absorber
Sold each
Call (780) 473-2424
We reply to price requests within one business day.
Will it fit your vehicle?
- Country of origin
- United States
- Box
- Ships in Bilstein's own box (about 74 × 11 × 11 cm, 3.4 kg)
100% genuine Bilstein, from authorized North American distribution.
Fitment
A universal part with no vehicle list of its own. Tell us your vehicle and we'll confirm it suits.
Specifications
As Bilstein publishes them.
- Extended Length (in)
- 26.65
- Collapsed Length (in)
- 17.44
- Extended Length (mm)
- 676.9
- Collapsed Length (mm)
- 443.0
- Piston Diameter
- 46mm
- Upper Mount Type
- 1/2in Heim
- Lower Mount Type
- 1/2in Heim
- Body Design
- Threaded Body (Coilover)
- Internal Design
- Monotube
- Finish
- Nickel Plated with Clear Powder Coat
- Reservoir
- No
- Spring Seat Included
- Yes
- Stroke/travel Length (in)
- 9.21
- Compression @0.52m/s
- 1000
- Rebound @0.52m/s
- 2550
- Mount Type
- Eye-to-Eye
- Optional Reservoir Clamp
- N/A
- Shaft Diameter (mm)
- 14.0
- Spring Hardware
- Single Rate (2.5in)
- Valving Type
- Medium
- Racing Type
- Off-Road
- Stroke/travel Length (in) Rounded
- 9
- Collapsed Length (in) Incremental
- 17-17.99
- Extended Length (in) Incremental
- 27-27.99
Installation & warranty
Bilstein installation instructions (PDF)
Limited 90-Day Warranty · Warranty terms (PDF)
100% genuine Bilstein, from authorized North American distribution.
BILSTEIN is a trademark of thyssenkrupp Bilstein GmbH. Eskimo is an independent retailer.
