ComponentMotorsport

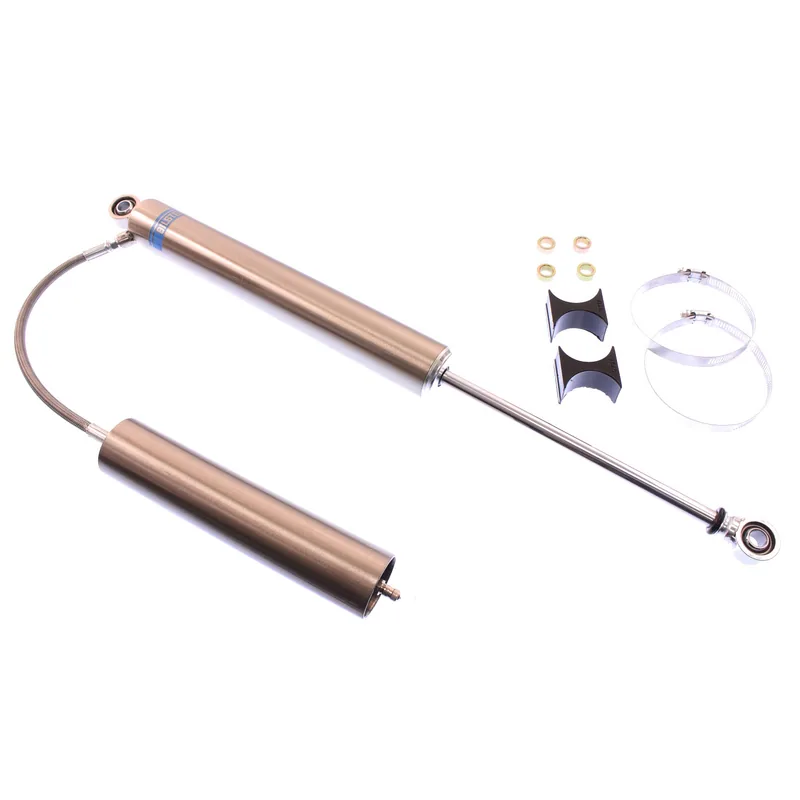

Bilstein B46-0360R M 7100 Shock Absorber
Sold each
Call (780) 473-2424
We reply to price requests within one business day.
Will it fit your vehicle?
- Country of origin
- United States
- Box
- Ships in Bilstein's own box (about 72 × 11 × 11 cm, 2.6 kg)
100% genuine Bilstein, from authorized North American distribution.
Fitment
A universal part with no vehicle list of its own. Tell us your vehicle and we'll confirm it suits.
Specifications
As Bilstein publishes them.
- Extended Length (in)
- 25.77
- Collapsed Length (in)
- 16.10
- Extended Length (mm)
- 654.6
- Collapsed Length (mm)
- 408.9
- Piston Diameter
- 46mm
- Upper Mount Type
- 1/2in Heim
- Lower Mount Type
- 1/2in Heim
- Body Design
- Smooth Body (Non-Coilover)
- Internal Design
- Monotube
- Finish
- Nickel Plated with Clear Powder Coat
- Reservoir
- No
- Spring Seat Included
- No
- Stroke/travel Length (in)
- 9.67
- Compression @0.52m/s
- 780
- Rebound @0.52m/s
- 2750
- Mount Type
- Eye-to-Eye
- Replacement Mounting Kit
- B4-KT0-Y019A00
- Optional Reservoir Clamp
- N/A
- Shaft Diameter (mm)
- 14.0
- Valving Type
- Medium
- Racing Type
- Off-Road
- Stroke/travel Length (in) Rounded
- 10
- Collapsed Length (in) Incremental
- 16-16.99
- Extended Length (in) Incremental
- 26-26.99
Installation & warranty
Bilstein general installation instructions (PDF)
Limited 90-Day Warranty · Warranty terms (PDF)
100% genuine Bilstein, from authorized North American distribution.
