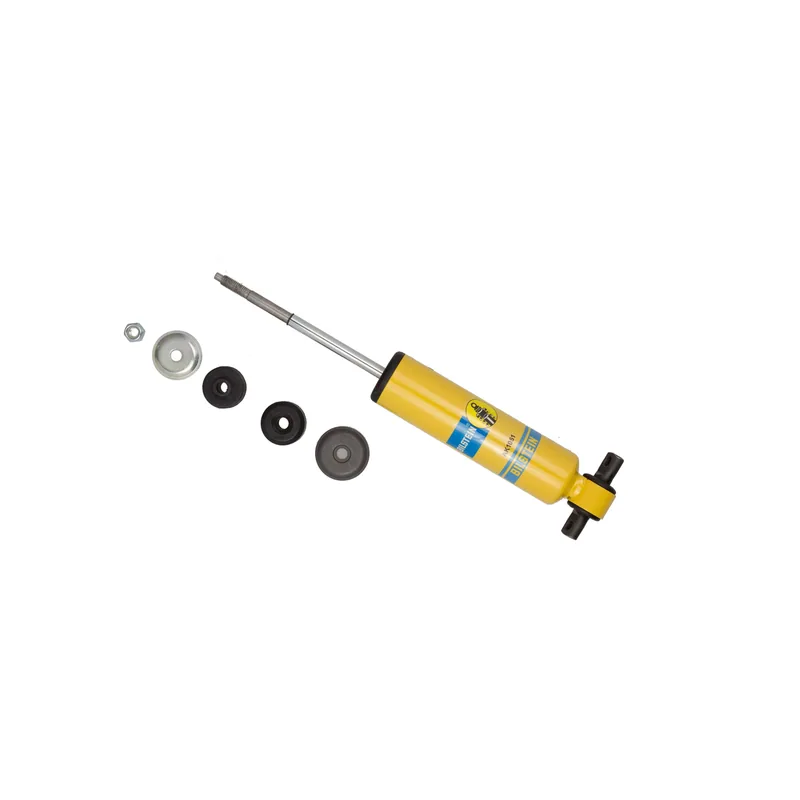

Bilstein AK1051 AK Series Shock Absorber
Sold each
Call (780) 473-2424
We reply to price requests within one business day.
Will it fit your vehicle?
- Country of origin
- United States
- Box
- Ships in Bilstein's own box (about 37 × 13 × 13 cm, 1.7 kg)
100% genuine Bilstein, from authorized North American distribution.
Fitment
A universal part with no vehicle list of its own. Tell us your vehicle and we'll confirm it suits.
Specifications
As Bilstein publishes them.
- Extended Length (in)
- 11.93
- Collapsed Length (in)
- 8.27
- Extended Length (mm)
- 303.0
- Collapsed Length (mm)
- 210.0
- Piston Diameter
- 46mm
- Shaft Diameter
- 11mm
- Upper Mount Type
- Stem
- Lower Mount Type
- Bar Pin
- Body Design
- Stock Mount Smooth Body
- Internal Design
- Monotube
- Finish
- Yellow Paint
- Adjustable Damping
- Non-Adjustable
- Boot Included
- No
- Spring Seat Included
- No
- Valve Code
- 393/172
- Stroke/travel Length (in)
- 3.66
- Compression @0.26m/s
- 1360
- Compression @0.52m/s
- 2100
- Rebound @0.26m/s
- 2800
- Rebound @0.52m/s
- 4800
- Body Material
- Steel
- Piston Type
- Linear
- Base Valve
- No
- Service Type
- Factory Rebuildable
- Racing Type
- Circle Track
- Racing Class
- Stock Car
- Stroke/travel Length (in) Rounded
- 4
Installation & warranty
Bilstein installation instructions (PDF) Bilstein general installation instructions (PDF)
Limited 90-Day Warranty · Warranty terms (PDF)
