ComponentB8 control arms

Bilstein 51-322335 B8 Control Arms Control Arm Kit

Sold each

Call (780) 473-2424

We reply to price requests within one business day.

Will it fit your vehicle?

Want it installed?Eskimo Auto Repair installs Bilstein suspension in Edmonton.

Country of origin: United States
Box: Ships in Bilstein's own box (about 60 × 35 × 15 cm, 9.3 kg)

100% genuine Bilstein, from authorized North American distribution.

Fitment

117 vehicles, newest years first

Vehicle	Years	Submodels	Position	Drive / body / engine	Notes
Chevrolet Silverado 1500	Years	2019–2026	Submodels	Custom, Custom Trail Boss, High Country, LT, LT Trail Boss, LTZ, RST, WT	Position	Front upper	Drive / body / engine	All	Notes	Compatible with direct fit lift shocks or coilovers only Compatible with OEM spindles only Not for use with lift spacers Requires wheels with maximum 4.75" backspacing Check which applies
Chevrolet Silverado 1500 LTD	Years	2022	Submodels	Custom, Custom Trail Boss, High Country, LT, LT Trail Boss, LTZ, RST, WT	Position	Front upper	Drive / body / engine	All	Notes	Compatible with direct fit lift shocks or coilovers only Compatible with OEM spindles only Not for use with lift spacers Requires wheels with maximum 4.75" backspacing Check which applies
GMC Sierra 1500	Years	2022–2026	Submodels	AT4, Elevation, Pro, SLE, SLT	Position	Front upper	Drive / body / engine	All	Notes	Compatible with direct fit lift shocks or coilovers only Compatible with OEM spindles only Not for use with lift spacers Requires wheels with maximum 4.75" backspacing Check which applies
GMC Sierra 1500	Years	2019–2021	Submodels	AT4, Base, Elevation, SLE, SLT	Position	Front upper	Drive / body / engine	All	Notes	Compatible with direct fit lift shocks or coilovers only Compatible with OEM spindles only Not for use with lift spacers Requires wheels with maximum 4.75" backspacing Check which applies
GMC Sierra 1500 Limited	Years	2022	Submodels	AT4, Elevation, Pro, SLE, SLT	Position	Front upper	Drive / body / engine	All	Notes	Compatible with direct fit lift shocks or coilovers only Compatible with OEM spindles only Not for use with lift spacers Requires wheels with maximum 4.75" backspacing Check which applies

Specifications

As Bilstein publishes them.

Finish: Powder-Coated Black

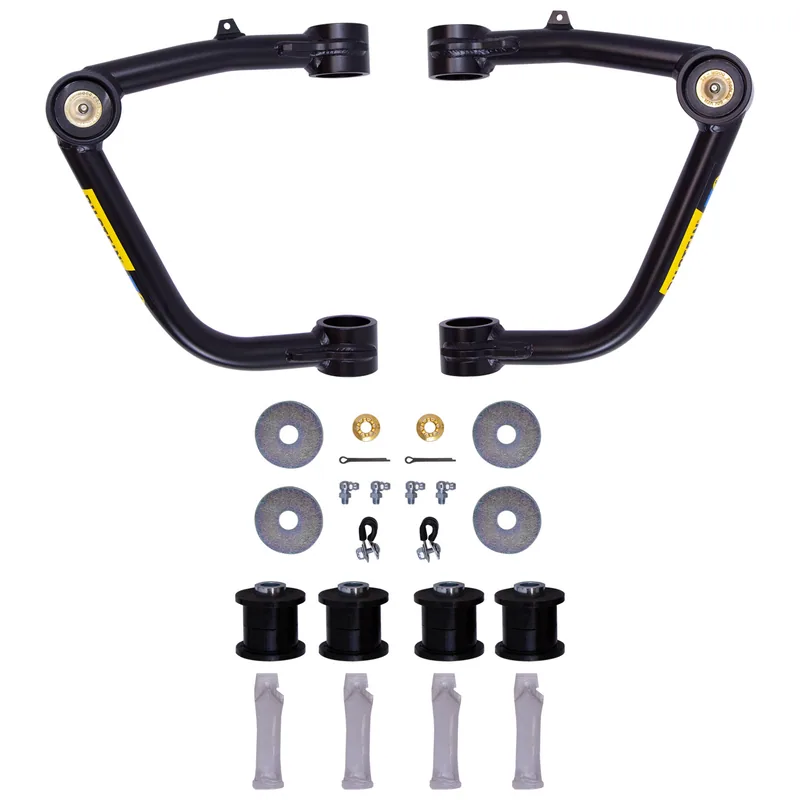

Kit Contents: Pair of upper control arms with ball joints, mounting hardware, bushings, grease fittings, instructions
Arm Design: Tubular
Arm Material: 4130 Chromoly Tubing
Arm Inner Pivot Type: Greasable Black Urethane Bushings
Arm Outer Pivot Type: Greasable Sealed Ball Joint
Arm Bushing Lubricant: Prothane Super Grease
Replacement Ball Joint Kit: 13-100117
Replacement Bushing Kit: B4-KT1-Z458A00
Replacement Bushing Washer Kit: B4-KT1-Z478A00
Replacement Grease Fitting Kit: B4-KT1-Z439A00

Installation & warranty

Bilstein installation instructions (PDF)

Limited Lifetime Warranty · Warranty terms (PDF)

100% genuine Bilstein, from authorized North American distribution.

BILSTEIN is a trademark of thyssenkrupp Bilstein GmbH. Eskimo is an independent retailer.
