ComponentB8 control arms

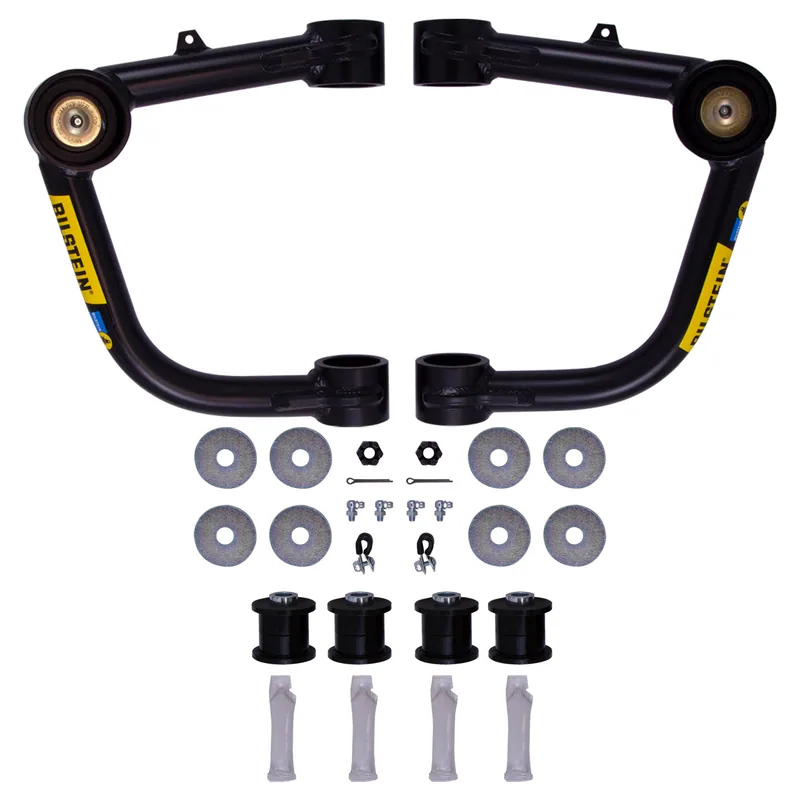

Bilstein 51-304683 B8 Control Arms Control Arm Kit

Sold each

Call (780) 473-2424

We reply to price requests within one business day.

Will it fit your vehicle?

Want it installed?Eskimo Auto Repair installs Bilstein suspension in Edmonton.

Country of origin: United States
Box: Ships in Bilstein's own box (about 60 × 35 × 15 cm, 9.6 kg)

100% genuine Bilstein, from authorized North American distribution.

Fitment

74 vehicles, newest years first

Vehicle	Years	Submodels	Position	Drive / body / engine	Notes
Toyota Tacoma	Years	2023	Submodels	Limited, SR, SR5, TRD Off-Road, TRD Pro, TRD Sport, Trail Special Edition	Position	Front upper	Drive / body / engine	All	Notes	Compatible with direct fit lift shocks or coilovers only Compatible with OEM spindles only Not for use with lift spacers Requires wheels with maximum 5" backspacing Check which applies
Toyota Tacoma	Years	2022	Submodels	Limited, Nightshade, SR, SR5, TRD Off-Road, TRD Pro, TRD Sport	Position	Front upper	Drive / body / engine	All	Notes	Compatible with direct fit lift shocks or coilovers only Compatible with OEM spindles only Not for use with lift spacers Requires wheels with maximum 5" backspacing Check which applies
Toyota Tacoma	Years	2021	Submodels	Limited, Nightshade, SR, SR5, TRD Off-Road, TRD Pro, TRD Sport, Trail	Position	Front upper	Drive / body / engine	All	Notes	Compatible with direct fit lift shocks or coilovers only Compatible with OEM spindles only Not for use with lift spacers Requires wheels with maximum 5" backspacing Check which applies
Toyota Tacoma	Years	2017–2020	Submodels	Limited, SR, SR5, TRD Off-Road, TRD Pro, TRD Sport	Position	Front upper	Drive / body / engine	All	Notes	Compatible with direct fit lift shocks or coilovers only Compatible with OEM spindles only Not for use with lift spacers Requires wheels with maximum 5" backspacing Check which applies
Toyota Tacoma	Years	2016	Submodels	Limited, SR, SR5, TRD Off-Road, TRD Sport	Position	Front upper	Drive / body / engine	All	Notes	Compatible with direct fit lift shocks or coilovers only Compatible with OEM spindles only Not for use with lift spacers Requires wheels with maximum 5" backspacing Check which applies
Toyota Tacoma	Years	2015	Submodels	Pre Runner, TRD Pro	Position	Front upper	Drive / body / engine	All	Notes	Compatible with direct fit lift shocks or coilovers only Compatible with OEM spindles only Not for use with lift spacers Requires wheels with maximum 5" backspacing Check which applies
Toyota Tacoma	Years	2005–2015	Submodels	Base	Position	Front upper	Drive / body / engine	4WD	Notes	Compatible with direct fit lift shocks or coilovers only Compatible with OEM spindles only Not for use with lift spacers Requires wheels with maximum 5" backspacing Check which applies
Toyota Tacoma	Years	2005–2014	Submodels	Pre Runner	Position	Front upper	Drive / body / engine	All	Notes	Compatible with direct fit lift shocks or coilovers only Compatible with OEM spindles only Not for use with lift spacers Requires wheels with maximum 5" backspacing Check which applies

Specifications

As Bilstein publishes them.

Finish: Powder-Coated Black
Kit Contents: Pair of upper control arms with ball joints, mounting hardware, bushings, grease fittings, instructions
Arm Design: Tubular
Arm Material: 4130 Chromoly Tubing
Arm Inner Pivot Type: Greasable Black Urethane Bushings
Arm Outer Pivot Type: Greasable Sealed Ball Joint
Arm Bushing Lubricant: Prothane Super Grease
Replacement Ball Joint Kit: 13-100131
Replacement Bushing Kit: B4-KT1-Z458A00
Replacement Bushing Washer Kit: B4-KT1-Z459A00
Replacement Grease Fitting Kit: B4-KT1-Z439A00

Installation & warranty

Bilstein installation instructions (PDF)

Limited Lifetime Warranty · Warranty terms (PDF)

100% genuine Bilstein, from authorized North American distribution.

BILSTEIN is a trademark of thyssenkrupp Bilstein GmbH. Eskimo is an independent retailer.
