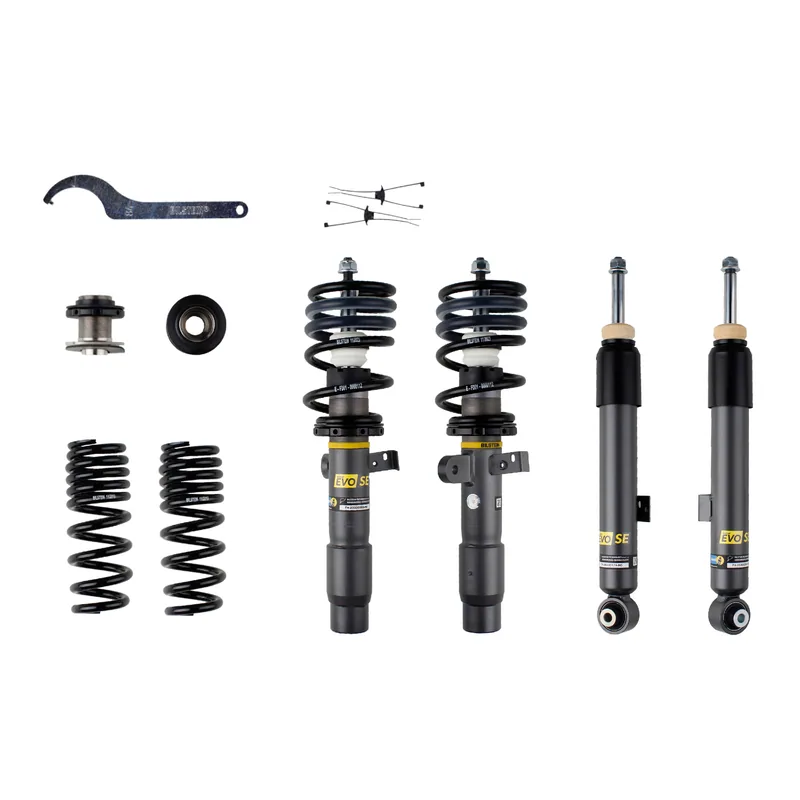

Bilstein 49-309119 EVO SE Suspension Kit

Sold each

Call (780) 473-2424

We reply to price requests within one business day.

Will it fit your vehicle?

Want it installed?Eskimo Auto Repair installs Bilstein suspension in Edmonton.

Country of origin: Germany
Box: Ships in Bilstein's own box (about 66 × 33 × 33 cm, 33.3 kg)

100% genuine Bilstein, from authorized North American distribution.

Fitment

25 vehicles, newest years first

Vehicle	Years	Submodels	Position	Drive / body / engine	Notes
BMW M2	Years	2023–2025	Submodels	Base	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 10-25mm, up to 1085kg Axle Load Rear Lowered Height: 5-20mm, up to 1185kg Axle Load With Electronic Suspension Check which applies
BMW M3	Years	2021–2025	Submodels	Base, Competition	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 10-25mm, up to 1085kg Axle Load Rear Lowered Height: 5-20mm, up to 1185kg Axle Load With Electronic Suspension Check which applies
BMW M4	Years	2025	Submodels	CS	Position	Front and rear	Drive / body / engine	RWD	Notes	Front Lowered Height: 10-25mm, up to 1085kg Axle Load Rear Lowered Height: 5-20mm, up to 1185kg Axle Load With Electronic Suspension Check which applies
BMW M4	Years	2024–2025	Submodels	Base, Competition	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 10-25mm, up to 1085kg Axle Load Rear Lowered Height: 5-20mm, up to 1185kg Axle Load With Electronic Suspension Check which applies
BMW M4	Years	2023	Submodels	Base, CSL, Competition	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 10-25mm, up to 1085kg Axle Load Rear Lowered Height: 5-20mm, up to 1185kg Axle Load With Electronic Suspension Check which applies
BMW M4	Years	2021–2022	Submodels	Base, Competition	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 10-25mm, up to 1085kg Axle Load Rear Lowered Height: 5-20mm, up to 1185kg Axle Load With Electronic Suspension Check which applies

Specifications

As Bilstein publishes them.

Internal Design: Twintube/Monotube
Finish: Dampers: Grey/Springs: Black
Front Main Spring Rate (lbs/in): 488.2
Front Main Spring Type: Progressive
Rear Main Spring Rate (lbs/in): 912.67
Rear Main Spring Type: Progressive
Front Tender Spring Rate (lbs/in): N/A
Rear Tender Spring Rate (lbs/in): N/A
Spanner Wrench Set: E4-XS1-Z001A00

Installation & warranty

Bilstein installation instructions (PDF)

Limited 5-Year Warranty · Warranty terms (PDF)

100% genuine Bilstein, from authorized North American distribution.

BILSTEIN is a trademark of thyssenkrupp Bilstein GmbH. Eskimo is an independent retailer.
