BestB16 coilovers

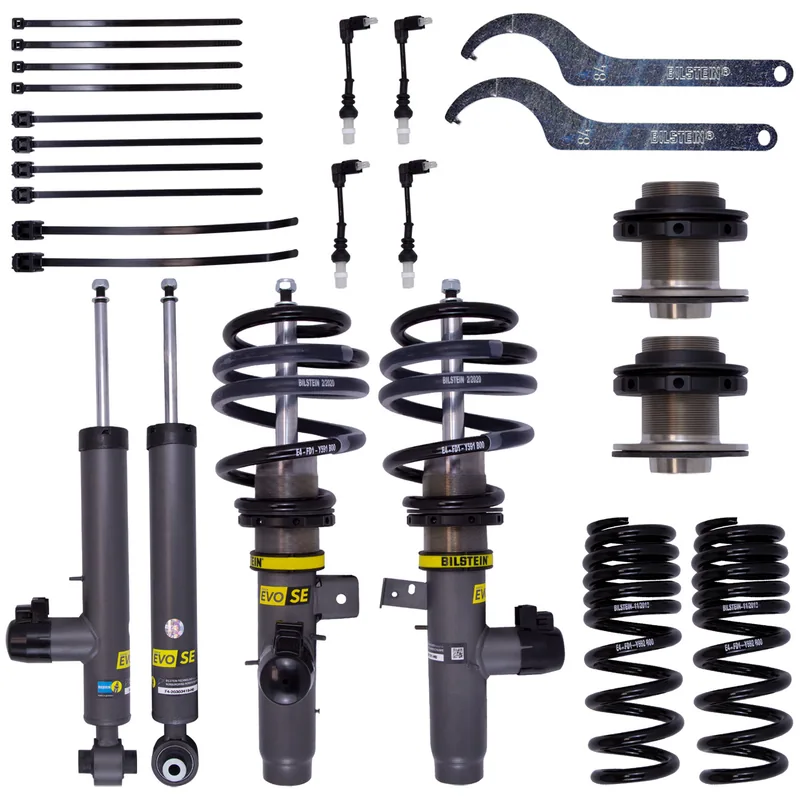

Bilstein 49-305135 EVO SE Suspension Kit

Sold each

Call (780) 473-2424

We reply to price requests within one business day.

Will it fit your vehicle?

Want it installed?Eskimo Auto Repair installs Bilstein suspension in Edmonton.

Country of origin: Germany
Box: Ships in Bilstein's own box (about 66 × 33 × 33 cm, 32.6 kg)

100% genuine Bilstein, from authorized North American distribution.

Fitment

16 vehicles, newest years first

Vehicle	Years	Submodels	Position	Drive / body / engine	Notes
BMW 330e xDrive	Years	2021–2022	Submodels	Base	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 15-35mm, up to 1115kg Axle Load Rear Lowered Height: 30-45mm, up to 1345kg Axle Load With Electronic Suspension Check which applies
BMW 330i xDrive	Years	2021	Submodels	Base	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 15-35mm, up to 1115kg Axle Load Rear Lowered Height: 25-45mm, up to 1345kg Axle Load With Electronic Suspension Check which applies
BMW 330i xDrive	Years	2020	Submodels	Base	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 25-45mm, up to 1075kg Axle Load Rear Lowered Height: 20-45mm, up to 1210kg Axle Load With Electronic Suspension Check which applies
BMW 330i xDrive	Years	2019	Submodels	Base	Position	Front and rear	Drive / body / engine	Sedan	Notes	Front Lowered Height: 25-45mm, up to 1075kg Axle Load Rear Lowered Height: 20-45mm, up to 1210kg Axle Load With Electronic Suspension Check which applies
BMW 430i xDrive	Years	2021–2025	Submodels	Base	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 15-35mm, up to 1115kg Axle Load Rear Lowered Height: 30-45mm, up to 1345kg Axle Load With Electronic Suspension Check which applies
BMW M340i xDrive	Years	2020–2025	Submodels	Base	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 15-35mm, up to 1060kg Axle Load Rear Lowered Height: 30-45mm, up to 1200kg Axle Load With Electronic Suspension Check which applies

Specifications

As Bilstein publishes them.

Internal Design: Twintube
Finish: Dampers: Grey Springs: Black
Front Main Spring Rate (lbs/in): 405
Front Main Spring Type: Progressive
Rear Main Spring Rate (lbs/in): 756
Rear Main Spring Type: Progressive
Front Tender Spring Rate (lbs/in): N/A
Rear Tender Spring Rate (lbs/in): N/A
Spanner Wrench Set: E4-XS1-Z001A00

Installation & warranty

Bilstein installation instructions (PDF)

Limited 5-Year Warranty · Warranty terms (PDF)
