BestB16 coilovers

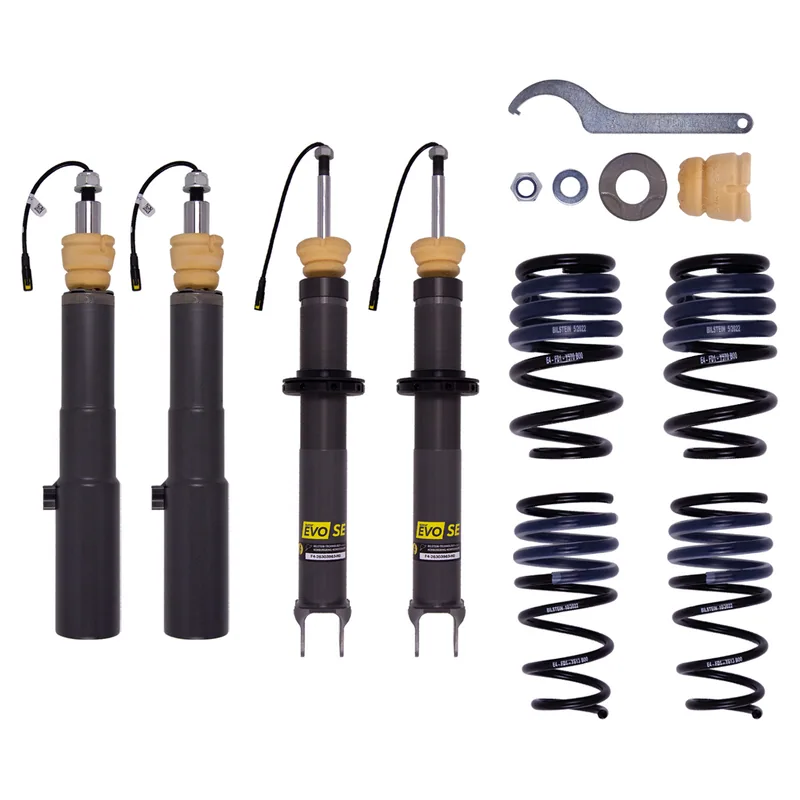

Bilstein 49-300581 EVO SE Suspension Kit

Sold each

Call (780) 473-2424

We reply to price requests within one business day.

Will it fit your vehicle?

Want it installed?Eskimo Auto Repair installs Bilstein suspension in Edmonton.

Country of origin: Germany
Box: Ships in Bilstein's own box (about 60 × 30 × 30 cm, 25 kg)

100% genuine Bilstein, from authorized North American distribution.

Fitment

35 vehicles, newest years first

Vehicle	Years	Submodels	Position	Drive / body / engine	Notes
Porsche 911	Years	2025	Submodels	Carrera, Carrera S, Carrera T	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 35mm, up to 875kg Axle Load Rear Lowered Height: 20-35mm, up to 1340kg Axle Load With Standard Suspension With Electronic Suspension (PASM) With Front Axle Lift Suspension Check which applies
Porsche 911	Years	2024	Submodels	Carrera, Carrera 4, Carrera 4S, Carrera S, Carrera T, Targa 4, Targa 4S	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 35mm, up to 875kg Axle Load Rear Lowered Height: 20-35mm, up to 1340kg Axle Load With Standard Suspension With Electronic Suspension (PASM) With Front Axle Lift Suspension Check which applies
Porsche 911	Years	2023	Submodels	Carrera, Carrera 4, Carrera 4S, Carrera S, Carrera T, Sport Classic, Targa 4, Targa 4S	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 35mm, up to 875kg Axle Load Rear Lowered Height: 20-35mm, up to 1340kg Axle Load With Standard Suspension With Electronic Suspension (PASM) With Front Axle Lift Suspension Check which applies
Porsche 911	Years	2022	Submodels	Carrera, Carrera 4, Carrera 4S, Carrera S, Targa 4, Targa 4S	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 35mm, up to 875kg Axle Load Rear Lowered Height: 20-35mm, up to 1340kg Axle Load With Standard Suspension With Electronic Suspension (PASM) With Front Axle Lift Suspension Check which applies
Porsche 911	Years	2021	Submodels	Carrera, Carrera 4, Carrera 4S, Carrera S, Targa 4, Targa 4S, Targa 4S Heritage Design Edition	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 35mm, up to 875kg Axle Load Rear Lowered Height: 20-35mm, up to 1340kg Axle Load With Standard Suspension With Electronic Suspension (PASM) With Front Axle Lift Suspension Check which applies
Porsche 911	Years	2020	Submodels	Carrera, Carrera 4, Carrera 4S, Carrera S	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 35mm, up to 875kg Axle Load Rear Lowered Height: 20-35mm, up to 1340kg Axle Load With Standard Suspension With Electronic Suspension (PASM) With Front Axle Lift Suspension Check which applies

Specifications

As Bilstein publishes them.

Internal Design: Twintube/Monotube
Finish: Dampers: Grey/Springs: Black
Front Main Spring Rate (lbs/in): 279.8
Front Main Spring Type: Progressive
Rear Main Spring Rate (lbs/in): 742.32
Rear Main Spring Type: Progressive
Front Tender Spring Rate (lbs/in): N/A
Rear Tender Spring Rate (lbs/in): N/A
Spanner Wrench Set: E4-XS1-Z001A00

Installation & warranty

Bilstein installation instructions (PDF)

Limited 5-Year Warranty · Warranty terms (PDF)

100% genuine Bilstein, from authorized North American distribution.

BILSTEIN is a trademark of thyssenkrupp Bilstein GmbH. Eskimo is an independent retailer.
