BestB16 coilovers

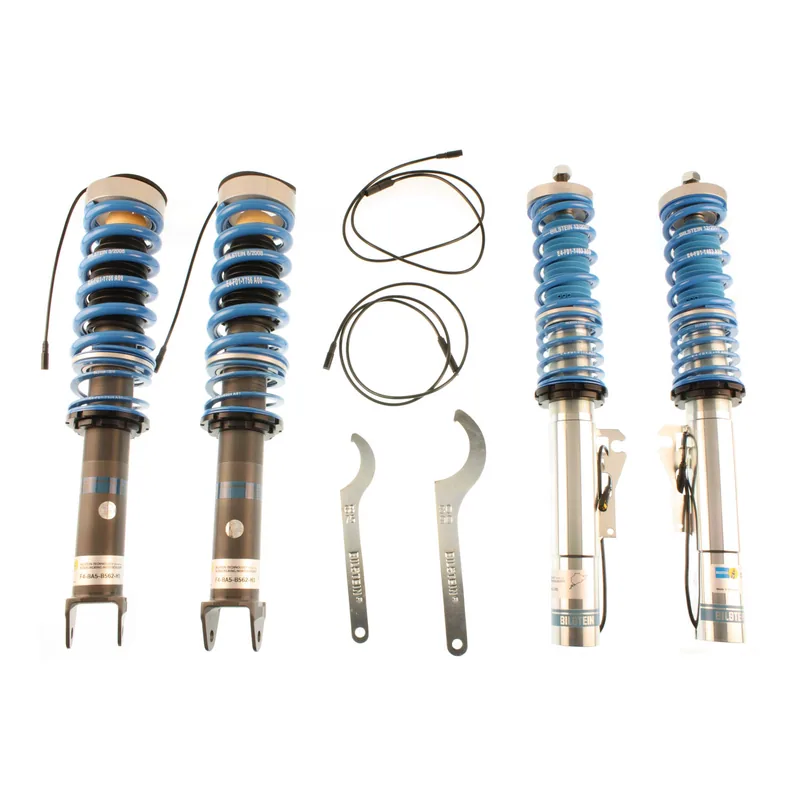

Bilstein 49-115604 B16 DampTronic Suspension Kit

Sold each

Call (780) 473-2424

We reply to price requests within one business day.

Will it fit your vehicle?

Want it installed?Eskimo Auto Repair installs Bilstein suspension in Edmonton.

Country of origin: Germany
Box: Ships in Bilstein's own box (about 58 × 29 × 29 cm, 22 kg)

100% genuine Bilstein, from authorized North American distribution.

Fitment

17 vehicles, newest years first

Vehicle	Years	Submodels	Position	Drive / body / engine	Notes
Porsche 911	Years	2012	Submodels	Carrera GTS	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 15-35mm, up to 775kg Axle Load Rear Lowered Height: 15-35mm, up to 1180kg Axle Load With Electronic Suspension (PASM) Check which applies
Porsche 911	Years	2011	Submodels	Carrera, Carrera GTS, Carrera S, Speedster	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 15-35mm, up to 775kg Axle Load Rear Lowered Height: 15-35mm, up to 1180kg Axle Load With Electronic Suspension (PASM) Check which applies
Porsche 911	Years	2006–2010	Submodels	Carrera, Carrera S	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 15-35mm, up to 775kg Axle Load Rear Lowered Height: 15-35mm, up to 1180kg Axle Load With Electronic Suspension (PASM) Check which applies
Porsche 911	Years	2005	Submodels	Carrera	Position	Front and rear	Drive / body / engine	Convertible	Notes	Body code: 997 Front Lowered Height: 15-35mm, up to 775kg Axle Load Rear Lowered Height: 15-35mm, up to 1180kg Axle Load With Electronic Suspension (PASM) Front Lowered Height: 15-35mm, up to 775kg Axle Load Rear Lowered Height: 15-35mm, up to 1220kg Axle Load With Electronic Suspension (PASM) Check which applies
Porsche 911	Years	2005	Submodels	Carrera S	Position	Front and rear	Drive / body / engine	Convertible	Notes	Front Lowered Height: 15-35mm, up to 775kg Axle Load Rear Lowered Height: 15-35mm, up to 1180kg Axle Load With Electronic Suspension (PASM) Front Lowered Height: 15-35mm, up to 775kg Axle Load Rear Lowered Height: 15-35mm, up to 1220kg Axle Load With Electronic Suspension (PASM) Check which applies
Porsche 911	Years	2005	Submodels	Carrera	Position	Front and rear	Drive / body / engine	Coupe	Notes	Body code: 996 Front Lowered Height: 15-35mm, up to 775kg Axle Load Rear Lowered Height: 15-35mm, up to 1180kg Axle Load With Electronic Suspension (PASM) Front Lowered Height: 15-35mm, up to 775kg Axle Load Rear Lowered Height: 15-35mm, up to 1220kg Axle Load With Electronic Suspension (PASM) Check which applies
Porsche 911	Years	2005	Submodels	Carrera S	Position	Front and rear	Drive / body / engine	Coupe	Notes	Front Lowered Height: 15-35mm, up to 775kg Axle Load Rear Lowered Height: 15-35mm, up to 1180kg Axle Load With Electronic Suspension (PASM) Front Lowered Height: 15-35mm, up to 775kg Axle Load Rear Lowered Height: 15-35mm, up to 1220kg Axle Load With Electronic Suspension (PASM) Check which applies

Specifications

As Bilstein publishes them.

Internal Design: Monotube
Finish: Dampers: Zinc Plated Front Clear Anodized Rear/Springs: Blue
Front Main Spring Rate (lbs/in): 289
Front Main Spring Type: Linear
Rear Main Spring Rate (lbs/in): 637
Rear Main Spring Type: Linear
Front Tender Spring Rate (lbs/in): 114
Rear Tender Spring Rate (lbs/in): 79
Spanner Wrench Set: E4-XS1-Z001A00

Installation & warranty

Bilstein installation instructions (PDF)

Limited 5-Year Warranty · Warranty terms (PDF)

100% genuine Bilstein, from authorized North American distribution.
