BestB16 coilovers

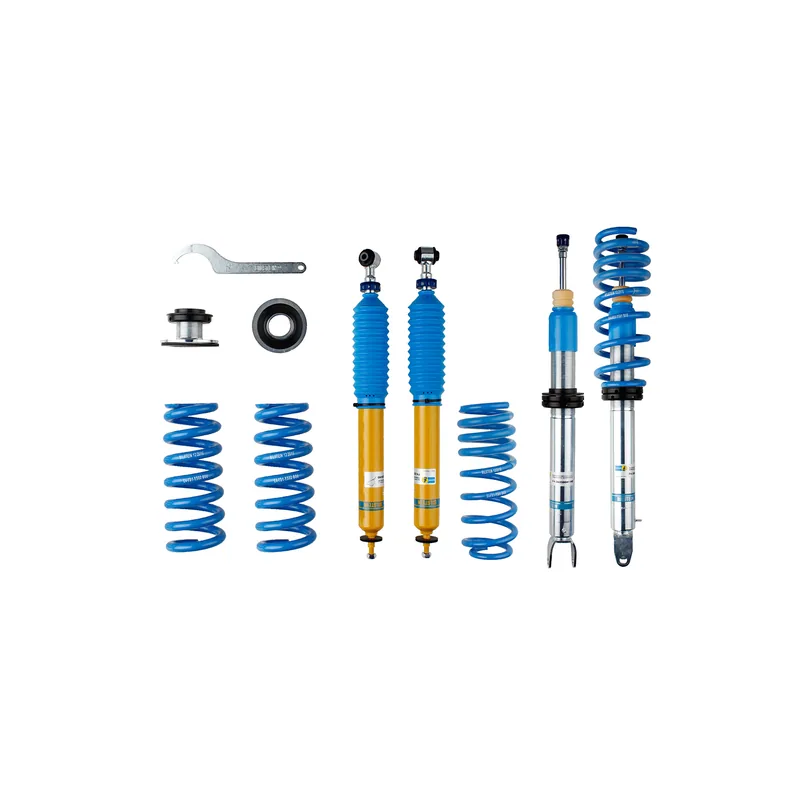

Bilstein 48-258067 B16 PSS10 Suspension Kit

Sold each

Call (780) 473-2424

We reply to price requests within one business day.

Will it fit your vehicle?

Want it installed?Eskimo Auto Repair installs Bilstein suspension in Edmonton.

Country of origin: Germany
Box: Ships in Bilstein's own box (about 64 × 32 × 32 cm, 30.1 kg)

100% genuine Bilstein, from authorized North American distribution.

Fitment

9 vehicles, newest years first

Vehicle	Years	Submodels	Position	Drive / body / engine	Notes
Mercedes-Benz E300	Years	2017–2019	Submodels	Base	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 30-50mm Rear Lowered Height: 30-50mm Without Electronic or Self-Leveling Suspension Check which applies
Mercedes-Benz E350	Years	2020–2021	Submodels	Base	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 30-50mm Rear Lowered Height: 30-50mm Without Electronic or Self-Leveling Suspension Check which applies
Mercedes-Benz E400	Years	2018	Submodels	Base	Position	Front and rear	Drive / body / engine	Convertible	Notes	Front Lowered Height: 20-40mm, up to 1275kg Axle Load Rear Lowered Height: 20-40mm, up to 1255kg Axle Load Without Electronic Suspension Without Self-Leveling Suspension Front Lowered Height: 20-40mm, up to 1275kg Axle Load Rear Lowered Height: 20-40mm, up to 1340kg Axle Load Without Electronic Suspension Without Self-Leveling Suspension Check which applies
Mercedes-Benz E400	Years	2018	Submodels	Base	Position	Front and rear	Drive / body / engine	Coupe	Notes	Front Lowered Height: 20-40mm, up to 1275kg Axle Load Rear Lowered Height: 20-40mm, up to 1255kg Axle Load Without Electronic Suspension Without Self-Leveling Suspension Front Lowered Height: 20-40mm, up to 1275kg Axle Load Rear Lowered Height: 20-40mm, up to 1340kg Axle Load Without Electronic Suspension Without Self-Leveling Suspension Check which applies
Mercedes-Benz E450	Years	2019–2021	Submodels	Base	Position	Front and rear	Drive / body / engine	Convertible	Notes	Front Lowered Height: 20-40mm, up to 1275kg Axle Load Rear Lowered Height: 20-40mm, up to 1255kg Axle Load Without Electronic Suspension Without Self-Leveling Suspension Front Lowered Height: 20-40mm, up to 1275kg Axle Load Rear Lowered Height: 20-40mm, up to 1340kg Axle Load Without Electronic Suspension Without Self-Leveling Suspension Check which applies
Mercedes-Benz E450	Years	2019–2021	Submodels	Base	Position	Front and rear	Drive / body / engine	Coupe	Notes	Front Lowered Height: 20-40mm, up to 1275kg Axle Load Rear Lowered Height: 20-40mm, up to 1255kg Axle Load Without Electronic Suspension Without Self-Leveling Suspension Front Lowered Height: 20-40mm, up to 1275kg Axle Load Rear Lowered Height: 20-40mm, up to 1340kg Axle Load Without Electronic Suspension Without Self-Leveling Suspension Check which applies

Specifications

As Bilstein publishes them.

Internal Design: Monotube
Finish: Dampers: Zinc Front Yellow Rear/Springs: Blue
Front Main Spring Rate (lbs/in): 400
Front Main Spring Type: Progressive
Rear Main Spring Rate (lbs/in): 800
Rear Main Spring Type: Linear
Front Tender Spring Rate (lbs/in): N/A
Rear Tender Spring Rate (lbs/in): N/A
Spanner Wrench Set: E4-XS1-Z001A00

Installation & warranty

Bilstein installation instructions (PDF)

Limited 5-Year Warranty · Warranty terms (PDF)

100% genuine Bilstein, from authorized North American distribution.

BILSTEIN is a trademark of thyssenkrupp Bilstein GmbH. Eskimo is an independent retailer.
