BestB16 coilovers

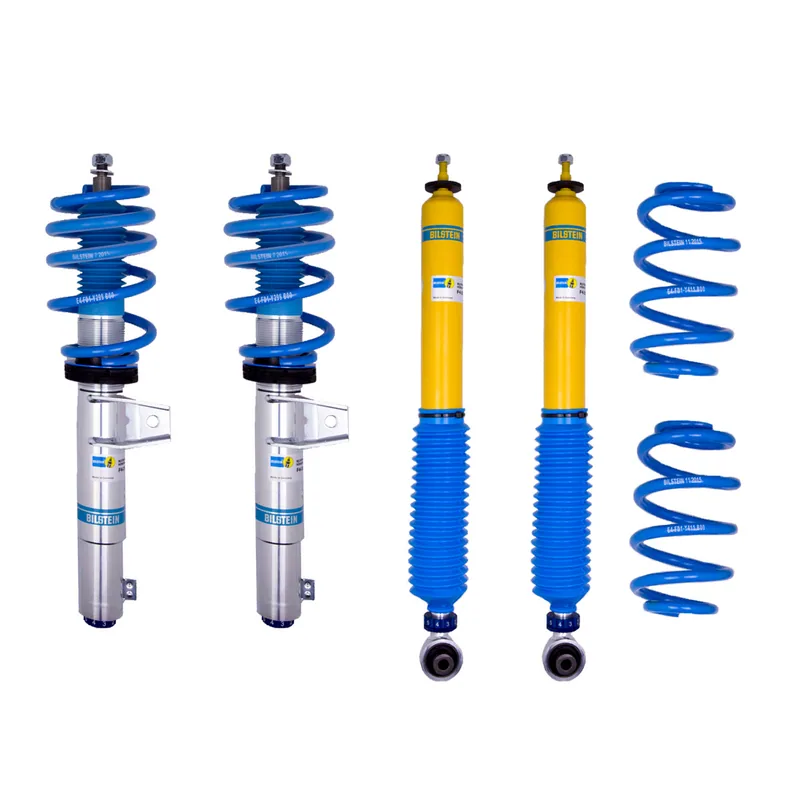

Bilstein 48-254960 B16 PSS10 Suspension Kit

Sold each

Call (780) 473-2424

We reply to price requests within one business day.

Will it fit your vehicle?

Want it installed?Eskimo Auto Repair installs Bilstein suspension in Edmonton.

Replaces Bilstein: 48-230056
Country of origin: Germany
Box: Ships in Bilstein's own box (about 60 × 30 × 30 cm, 24.6 kg)

100% genuine Bilstein, from authorized North American distribution.

Fitment

30 vehicles, newest years first

Vehicle	Years	Submodels	Position	Drive / body / engine	Notes
Volkswagen Golf	Years	2020–2021	Submodels	TSi	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 30-50mm Rear Lowered Height: 30-50mm With 50mm Outside Strut Diameter With Independent Rear Suspension Check which applies
Volkswagen Golf	Years	2018–2019	Submodels	S, SE	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 30-50mm Rear Lowered Height: 30-50mm With 50mm Outside Strut Diameter With Independent Rear Suspension Check which applies
Volkswagen Golf	Years	2017	Submodels	S, Wolfsburg Edition	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 30-50mm Rear Lowered Height: 30-50mm With 50mm Outside Strut Diameter With Independent Rear Suspension Check which applies
Volkswagen Golf	Years	2016	Submodels	Base, S, SE, SEL	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 30-50mm Rear Lowered Height: 30-50mm With 50mm Outside Strut Diameter With Independent Rear Suspension Check which applies
Volkswagen Golf	Years	2015	Submodels	Launch Edition, S, SE, SEL	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 30-50mm Rear Lowered Height: 30-50mm With 50mm Outside Strut Diameter With Independent Rear Suspension Check which applies
Volkswagen Golf SportWagen	Years	2019	Submodels	S, SE	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 30-50mm Rear Lowered Height: 30-50mm With 50mm Outside Strut Diameter With Independent Rear Suspension Check which applies
Volkswagen Golf SportWagen	Years	2017–2018	Submodels	S, SE, SEL	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 30-50mm Rear Lowered Height: 30-50mm With 50mm Outside Strut Diameter With Independent Rear Suspension Check which applies
Volkswagen Golf SportWagen	Years	2015–2016	Submodels	S, SE, SEL	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 30-50mm Rear Lowered Height: 30-50mm Without Electronic Suspension With Independent Rear Suspension With 50mm Outside Strut Diameter Check which applies

Specifications

As Bilstein publishes them.

Internal Design: Monotube
Finish: Dampers: Zinc Front Yellow Rear/Springs: Blue
Front Main Spring Rate (lbs/in): 400
Front Main Spring Type: Progressive
Rear Main Spring Rate (lbs/in): 302
Rear Main Spring Type: Linear
Front Tender Spring Rate (lbs/in): N/A
Rear Tender Spring Rate (lbs/in): N/A
Spanner Wrench Set: E4-XS1-Z001A00

Installation & warranty

Bilstein installation instructions (PDF)

Limited 5-Year Warranty · Warranty terms (PDF)

100% genuine Bilstein, from authorized North American distribution.

BILSTEIN is a trademark of thyssenkrupp Bilstein GmbH. Eskimo is an independent retailer.
