BestB16 coilovers

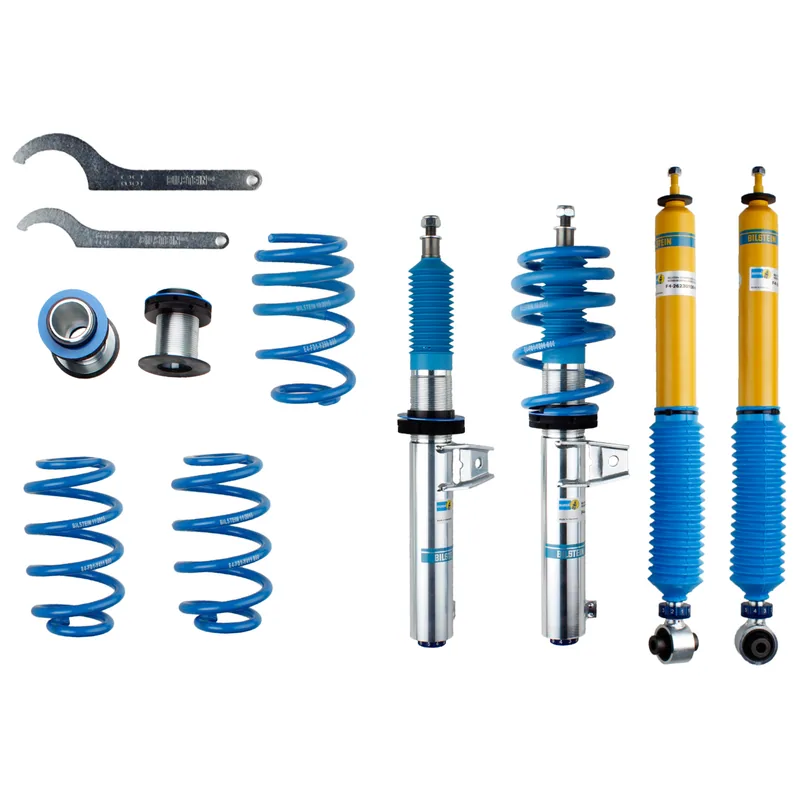

Bilstein 48-251570 B16 PSS10 Suspension Kit

Sold each

Call (780) 473-2424

We reply to price requests within one business day.

Will it fit your vehicle?

Want it installed?Eskimo Auto Repair installs Bilstein suspension in Edmonton.

Replaces Bilstein: 48-230063
Country of origin: Germany
Box: Ships in Bilstein's own box (about 60 × 30 × 30 cm, 24.9 kg)

100% genuine Bilstein, from authorized North American distribution.

Fitment

102 vehicles, newest years first

Vehicle	Years	Submodels	Position	Drive / body / engine	Notes
Audi A3	Years	2020	Submodels	Premium, Premium Plus	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 30-50mm Rear Lowered Height: 30-50mm Without Electronic Suspension With Independent Rear Suspension With 55mm Outside Strut Diameter Check which applies
Audi A3	Years	2017–2019	Submodels	Premium, Premium Plus, Prestige	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 30-50mm Rear Lowered Height: 30-50mm Without Electronic Suspension With Independent Rear Suspension With 55mm Outside Strut Diameter Check which applies
Audi A3	Years	2015–2016	Submodels	Premium, Premium Plus, Prestige, TDI Premium, TDI Premium Plus, TDI Prestige	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 30-50mm Rear Lowered Height: 30-50mm Without Electronic Suspension With Independent Rear Suspension With 55mm Outside Strut Diameter Check which applies
Audi A3 Quattro (AWD)	Years	2015–2019	Submodels	Premium, Premium Plus, Prestige	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 30-50mm Rear Lowered Height: 30-50mm Without Electronic Suspension With Independent Rear Suspension With 55mm Outside Strut Diameter Check which applies
Audi RS3	Years	2017–2020	Submodels	Base	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 15-30mm, up to 1090kg Axle Load Rear Lowered Height: 15-30mm, up to 1065kg Axle Load Without Electronic Suspension With 55mm Outside Strut Diameter Check which applies
Audi S3	Years	2020	Submodels	Premium, Premium Plus	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 30-50mm Rear Lowered Height: 30-50mm Without Electronic Suspension With 55mm Outside Strut Diameter Check which applies
Audi S3	Years	2015–2019	Submodels	Premium Plus, Prestige	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 30-50mm Rear Lowered Height: 30-50mm Without Electronic Suspension With 55mm Outside Strut Diameter Check which applies
Volkswagen Arteon	Years	2021	Submodels	SE, SEL Premium R-Line, SEL R-Line	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 30-50mm, up to 1160kg Axle Load Rear Lowered Height: 30-50mm, up to 1220kg Axle Load Check which applies
Volkswagen Arteon	Years	2019–2020	Submodels	SE, SEL, SEL Premium R-Line, SEL R-Line	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 30-50mm, up to 1160kg Axle Load Rear Lowered Height: 30-50mm, up to 1220kg Axle Load Check which applies
Volkswagen Golf Alltrack	Years	2017–2019	Submodels	S, SE, SEL	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 30-50mm, up to 1200kg Axle Load Rear Lowered Height: 30-50mm, up to 1253kg Axle Load Check which applies
Volkswagen Golf R	Years	2015–2019	Submodels	Base	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 15-35mm, up to 1160kg Axle Load Rear Lowered Height: 15-35mm, up to 1220kg Axle Load Without Electronic Suspension Check which applies
Volkswagen GTI	Years	2020–2021	Submodels	Autobahn, S, SE	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 15-35mm Rear Lowered Height: 15-35mm Without Electronic Suspension With Independent Rear Suspension With 55mm Outside Strut Diameter Check which applies
Volkswagen GTI	Years	2019	Submodels	Autobahn, Rabbit Edition, S, SE	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 15-35mm Rear Lowered Height: 15-35mm Without Electronic Suspension With Independent Rear Suspension With 55mm Outside Strut Diameter Check which applies
Volkswagen GTI	Years	2018	Submodels	Autobahn, S, SE	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 15-35mm Rear Lowered Height: 15-35mm Without Electronic Suspension With Independent Rear Suspension With 55mm Outside Strut Diameter Check which applies
Volkswagen GTI	Years	2017	Submodels	Autobahn, S, SE, Sport	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 15-35mm Rear Lowered Height: 15-35mm Without Electronic Suspension With Independent Rear Suspension With 55mm Outside Strut Diameter Check which applies
Volkswagen GTI	Years	2015–2016	Submodels	Autobahn, S, SE	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 15-35mm Rear Lowered Height: 15-35mm Without Electronic Suspension With Independent Rear Suspension With 55mm Outside Strut Diameter Check which applies

Specifications

As Bilstein publishes them.

Internal Design: Monotube
Finish: Dampers: Zinc Front Yellow Rear/Springs: Blue
Front Main Spring Rate (lbs/in): 399
Front Main Spring Type: Progressive
Rear Main Spring Rate (lbs/in): 302
Rear Main Spring Type: Linear
Front Tender Spring Rate (lbs/in): N/A
Rear Tender Spring Rate (lbs/in): N/A
Spanner Wrench Set: E4-XS1-Z001A00

Installation & warranty

Bilstein installation instructions (PDF)

Limited 5-Year Warranty · Warranty terms (PDF)

100% genuine Bilstein, from authorized North American distribution.

BILSTEIN is a trademark of thyssenkrupp Bilstein GmbH. Eskimo is an independent retailer.
