BestB16 coilovers

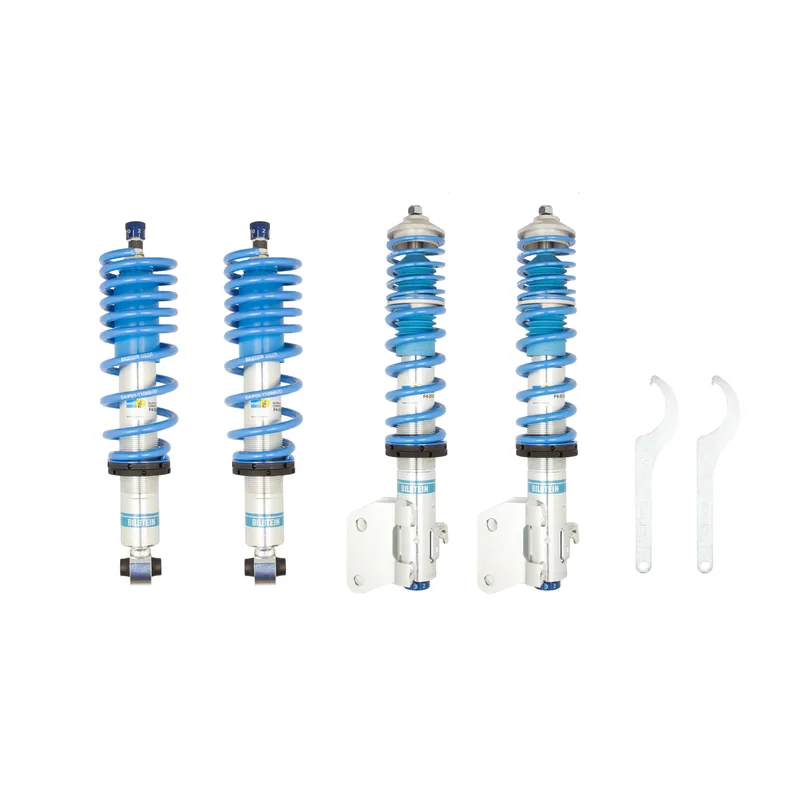

Bilstein 48-249546 B16 PSS10 Suspension Kit

Sold each

Call (780) 473-2424

We reply to price requests within one business day.

Will it fit your vehicle?

Want it installed?Eskimo Auto Repair installs Bilstein suspension in Edmonton.

Country of origin: Germany
Box: Ships in Bilstein's own box (about 60 × 30 × 30 cm, 23.6 kg)

100% genuine Bilstein, from authorized North American distribution.

Fitment

43 vehicles, newest years first

Vehicle	Years	Submodels	Position	Drive / body / engine	Notes
Subaru WRX	Years	2019–2021	Submodels	Base, Limited, Premium	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 15-20mm, up to 1075kg Axle Load Rear Lowered Height: 15-25mm, up to 1040kg Axle Load Wheel spacers may be required for some wheel/tire combinations Check which applies
Subaru WRX	Years	2017–2018	Submodels	Base, Limited, Premium, Sport, Sport-tech	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 15-20mm, up to 1075kg Axle Load Rear Lowered Height: 15-25mm, up to 1040kg Axle Load Wheel spacers may be required for some wheel/tire combinations Check which applies
Subaru WRX	Years	2015–2016	Submodels	Base, Limited, Premium	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 15-20mm, up to 1075kg Axle Load Rear Lowered Height: 15-25mm, up to 1040kg Axle Load Wheel spacers may be required for some wheel/tire combinations Check which applies
Subaru WRX STI	Years	2020–2021	Submodels	Base, Limited	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 15-20mm, up to 1075kg Axle Load Rear Lowered Height: 15-25mm, up to 1040kg Axle Load Wheel spacers may be required for some wheel/tire combinations Check which applies
Subaru WRX STI	Years	2019	Submodels	Base, Limited, S209	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 15-20mm, up to 1075kg Axle Load Rear Lowered Height: 15-25mm, up to 1040kg Axle Load Wheel spacers may be required for some wheel/tire combinations Check which applies
Subaru WRX STI	Years	2018	Submodels	Base, Limited, Type RA	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 15-20mm, up to 1075kg Axle Load Rear Lowered Height: 15-25mm, up to 1040kg Axle Load Wheel spacers may be required for some wheel/tire combinations Check which applies
Subaru WRX STI	Years	2017	Submodels	Base, Limited	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 15-20mm, up to 1075kg Axle Load Rear Lowered Height: 15-25mm, up to 1040kg Axle Load Wheel spacers may be required for some wheel/tire combinations Check which applies
Subaru WRX STI	Years	2016	Submodels	Base, Limited, Series.HyperBlue	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 15-20mm, up to 1075kg Axle Load Rear Lowered Height: 15-25mm, up to 1040kg Axle Load Wheel spacers may be required for some wheel/tire combinations Check which applies
Subaru WRX STI	Years	2015	Submodels	Base, Launch Edition, Limited	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 15-20mm, up to 1075kg Axle Load Rear Lowered Height: 15-25mm, up to 1040kg Axle Load Wheel spacers may be required for some wheel/tire combinations Check which applies

Specifications

As Bilstein publishes them.

Internal Design: Monotube
Finish: Dampers: Zinc/Springs: Blue
Front Main Spring Rate (lbs/in): 405.69
Front Main Spring Type: Linear
Rear Main Spring Rate (lbs/in): 285.7
Rear Main Spring Type: Double Linear
Front Tender Spring Rate (lbs/in): 114.28
Rear Tender Spring Rate (lbs/in): N/A
Spanner Wrench Set: E4-XS1-Z001A00

Installation & warranty

Bilstein installation instructions (PDF)

Limited 5-Year Warranty · Warranty terms (PDF)

100% genuine Bilstein, from authorized North American distribution.

BILSTEIN is a trademark of thyssenkrupp Bilstein GmbH. Eskimo is an independent retailer.
