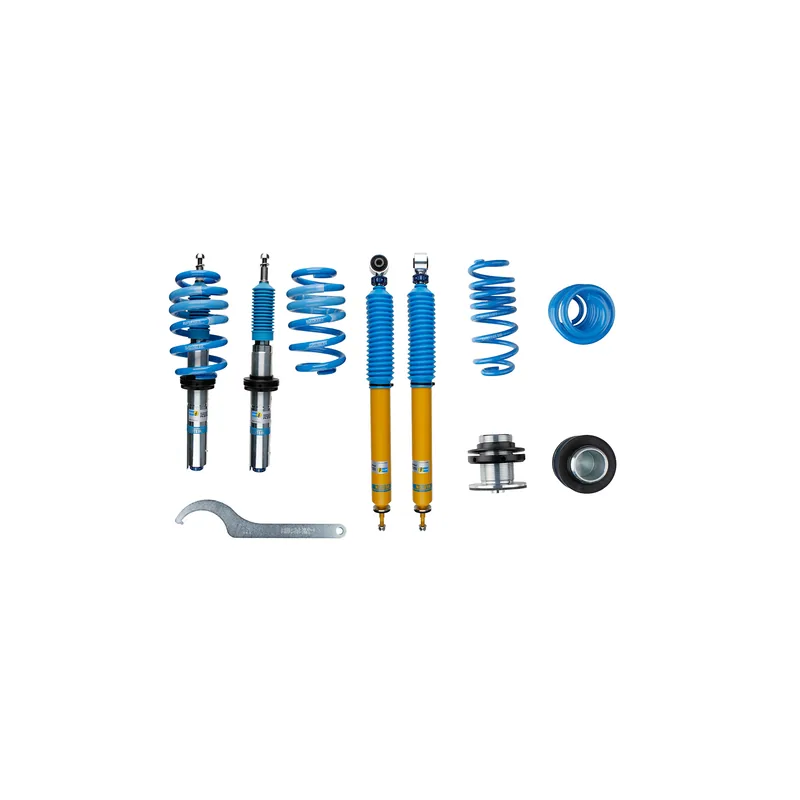

Bilstein 48-246125 B16 PSS10 Suspension Kit

Sold each

Call (780) 473-2424

We reply to price requests within one business day.

Will it fit your vehicle?

Want it installed?Eskimo Auto Repair installs Bilstein suspension in Edmonton.

Country of origin: Germany
Box: Ships in Bilstein's own box (about 66 × 33 × 33 cm, 31.2 kg)

100% genuine Bilstein, from authorized North American distribution.

Fitment

27 vehicles, newest years first

Vehicle	Years	Submodels	Position	Drive / body / engine	Notes
Porsche Macan	Years	2024	Submodels	Base, S	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 30-50mm Rear Lowered Height: 30-50mm Without Electronic Suspension Check which applies
Porsche Macan	Years	2022–2023	Submodels	Base, S	Position	Front and rear	Drive / body / engine	All	Notes	Spring type: Front: Coil , Rear: Coil Front Lowered Height: 30-50mm Rear Lowered Height: 30-50mm Without Electronic Suspension Check which applies
Porsche Macan	Years	2020–2021	Submodels	Base, S, Turbo	Position	Front and rear	Drive / body / engine	All	Notes	Spring type: Front: Coil , Rear: Coil Front Lowered Height: 30-50mm Rear Lowered Height: 30-50mm Without Electronic Suspension Check which applies
Porsche Macan	Years	2020	Submodels	GTS	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 30-50mm Rear Lowered Height: 30-50mm Without Electronic Suspension Check which applies
Porsche Macan	Years	2019	Submodels	Base, S	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 30-50mm Rear Lowered Height: 30-50mm Without Electronic Suspension Check which applies
Porsche Macan	Years	2017–2018	Submodels	Base, GTS, S, Turbo	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 30-50mm Rear Lowered Height: 30-50mm Without Electronic Suspension Check which applies
Porsche Macan	Years	2015–2016	Submodels	S, Turbo	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 30-50mm Rear Lowered Height: 30-50mm Without Electronic Suspension Check which applies

Specifications

As Bilstein publishes them.

Internal Design: Monotube
Finish: Dampers: Zinc Front Yellow Rear/Springs: Blue
Front Main Spring Rate (lbs/in): 629
Front Main Spring Type: Progressive
Rear Main Spring Rate (lbs/in): 343
Rear Main Spring Type: Progressive
Front Tender Spring Rate (lbs/in): N/A
Rear Tender Spring Rate (lbs/in): N/A
Spanner Wrench Set: E4-XS1-Z001A00

Installation & warranty

Bilstein installation instructions (PDF)

Limited 5-Year Warranty · Warranty terms (PDF)

100% genuine Bilstein, from authorized North American distribution.
