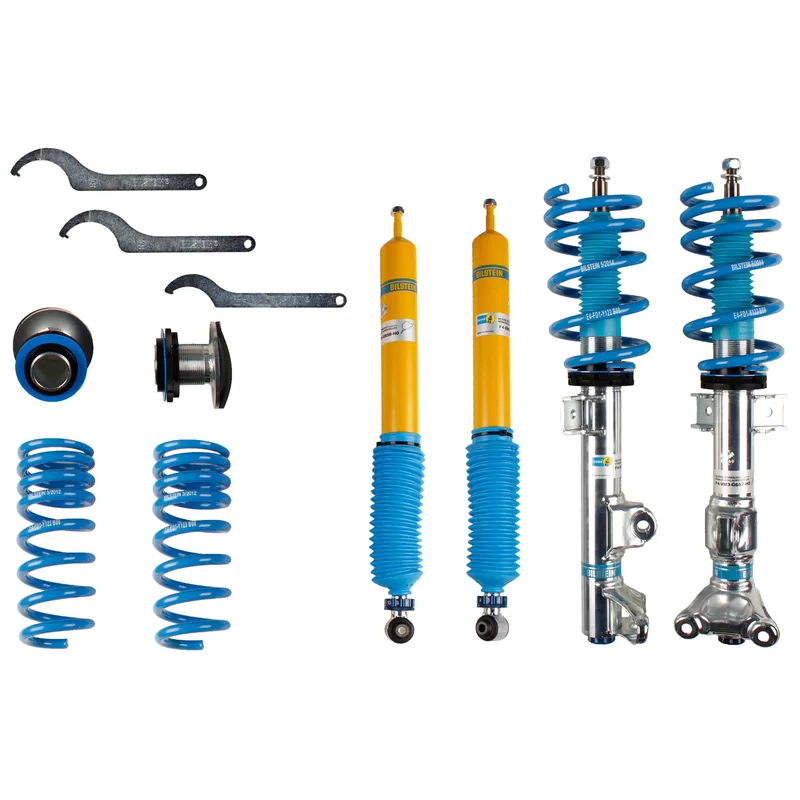

Bilstein 48-166560 B16 PSS10 Suspension Kit

Bilstein 48-166560 B16 PSS10 Suspension Kit

Sold each

Call (780) 473-2424

We reply to price requests within one business day.

Will it fit your vehicle?

Country of origin
Germany
Box
Ships in Bilstein's own box (about 64 × 32 × 32 cm, 30.7 kg)

100% genuine Bilstein, from authorized North American distribution.

Fitment

17 vehicles, newest years first

Mercedes-Benz E2502014–2016BluetecFront and rearAll
  • Front Lowered Height: 30-55mm
  • Rear Lowered Height: 30-50mm
  • Without Air Suspension
  • Check which applies
Mercedes-Benz E3502015–2016BaseFront and rearAll
  • Front Lowered Height: 30-55mm
  • Rear Lowered Height: 30-50mm
  • Without Air Suspension
  • Check which applies
Mercedes-Benz E3502010–2014BaseFront and rearSedan
  • Front Lowered Height: 30-55mm
  • Rear Lowered Height: 30-50mm
  • Without Air Suspension
  • Check which applies
Mercedes-Benz E3502011–2013BluetecFront and rearAll
  • Front Lowered Height: 30-55mm
  • Rear Lowered Height: 30-50mm
  • Without Air Suspension
  • Check which applies
Mercedes-Benz E4002015–2016BaseFront and rearSedan
  • Front Lowered Height: 30-55mm
  • Rear Lowered Height: 30-50mm
  • Without Air Suspension
  • Check which applies
Mercedes-Benz E5502010–2011BaseFront and rearSedan
  • Front Lowered Height: 30-55mm
  • Rear Lowered Height: 30-50mm
  • Without Air Suspension
  • Check which applies

Specifications

As Bilstein publishes them.

Internal Design
Monotube
Finish
Dampers: Zinc Plated Front Yellow Rear/Springs: Blue
Front Main Spring Rate (lbs/in)
389
Front Main Spring Type
Progressive
Rear Main Spring Rate (lbs/in)
743
Rear Main Spring Type
Progressive
Front Tender Spring Rate (lbs/in)
N/A
Rear Tender Spring Rate (lbs/in)
N/A
Spanner Wrench Set
E4-XS1-Z001A00

Installation & warranty

100% genuine Bilstein, from authorized North American distribution.

BILSTEIN is a trademark of thyssenkrupp Bilstein GmbH. Eskimo is an independent retailer.
