BestB16 coilovers

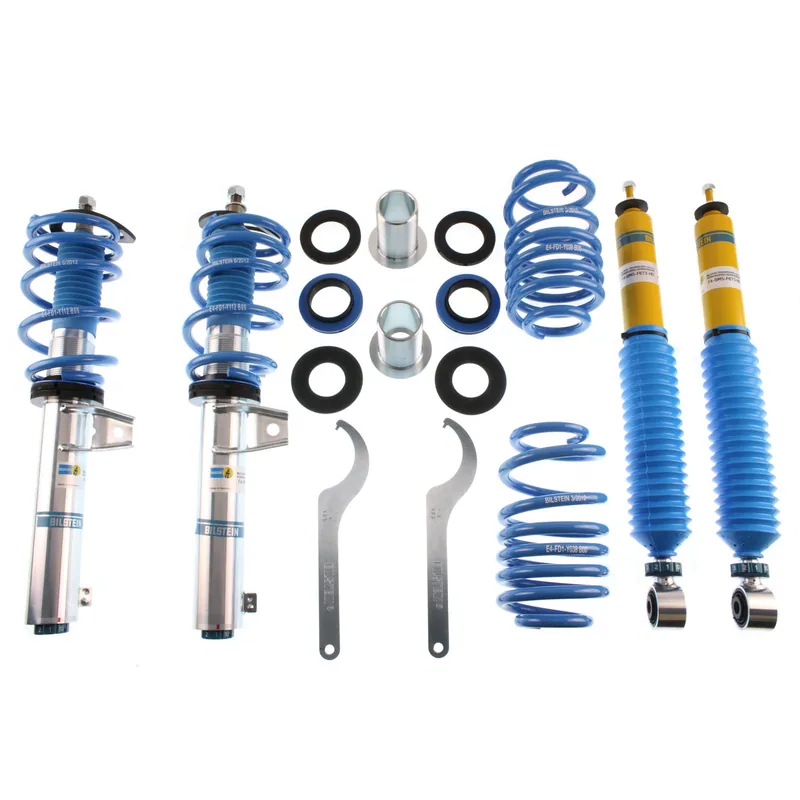

Bilstein 48-158176 B16 PSS10 Suspension Kit

Sold each

Call (780) 473-2424

We reply to price requests within one business day.

Will it fit your vehicle?

Want it installed?Eskimo Auto Repair installs Bilstein suspension in Edmonton.

Country of origin: Germany
Box: Ships in Bilstein's own box (about 62 × 31 × 31 cm, 25.9 kg)

100% genuine Bilstein, from authorized North American distribution.

Fitment

54 vehicles, newest years first

Vehicle	Years	Submodels	Position	Drive / body / engine	Notes
Volkswagen Beetle	Years	2019	Submodels	Final Edition SE, Final Edition SEL, S, SE	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 20-30mm, up to 1140kg Axle Load Rear Lowered Height: 10-30mm, up to 880kg Axle Load Check which applies
Volkswagen Beetle	Years	2018	Submodels	Coast, S, SE	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 20-30mm, up to 1140kg Axle Load Rear Lowered Height: 10-30mm, up to 880kg Axle Load Check which applies
Volkswagen Beetle	Years	2017	Submodels	#PinkBeetle, Classic, R-Line SEL, S, SE, SEL	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 20-30mm, up to 1140kg Axle Load Rear Lowered Height: 10-30mm, up to 880kg Axle Load Check which applies
Volkswagen Beetle	Years	2016	Submodels	Denim, Fleet Edition, R-Line S, R-Line SE, R-Line SEL, S, SE, SEL, Wolfsburg Edition	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 20-30mm, up to 1140kg Axle Load Rear Lowered Height: 10-30mm, up to 880kg Axle Load Check which applies
Volkswagen Beetle	Years	2015	Submodels	Base, Classic, Fleet Edition, R-Line, TDI	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 20-30mm, up to 1140kg Axle Load Rear Lowered Height: 10-30mm, up to 880kg Axle Load Check which applies
Volkswagen Beetle	Years	2014	Submodels	Base, GSR, R-Line, TDI	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 20-30mm, up to 1140kg Axle Load Rear Lowered Height: 10-30mm, up to 880kg Axle Load Check which applies
Volkswagen Beetle	Years	2013	Submodels	Base, R-Line, TDI, Turbo	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 20-30mm, up to 1140kg Axle Load Rear Lowered Height: 10-30mm, up to 880kg Axle Load Check which applies
Volkswagen Beetle	Years	2012	Submodels	Turbo	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 20-30mm, up to 1140kg Axle Load Rear Lowered Height: 10-30mm, up to 880kg Axle Load Check which applies
Volkswagen Golf	Years	2010–2014	Submodels	Base, TDI	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 20-40mm, up to 1140kg Axle Load Rear Lowered Height: 20-40mm, up to 1040kg Axle Load Without Electronic Suspension With 55mm Outside Strut Diameter Check which applies
Volkswagen Golf R	Years	2013	Submodels	Base	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 20-40mm, up to 1140kg Axle Load Rear Lowered Height: 20-40mm, up to 1040kg Axle Load Without Electronic Suspension With 55mm Outside Strut Diameter Check which applies
Volkswagen Golf R	Years	2012	Submodels	Base	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 10-30mm, up to 1140kg Axle Load Rear Lowered Height: 10-30mm, up to 1040kg Axle Load Without Electronic Suspension With 55mm Outside Strut Diameter Check which applies
Volkswagen GTI	Years	2014	Submodels	Drivers Edition, Wolfsburg Edition	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 20-40mm, up to 1140kg Axle Load Rear Lowered Height: 20-40mm, up to 1040kg Axle Load Without Electronic Suspension With 55mm Outside Strut Diameter Check which applies
Volkswagen GTI	Years	2010–2013	Submodels	Base	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 20-40mm, up to 1140kg Axle Load Rear Lowered Height: 20-40mm, up to 1040kg Axle Load Without Electronic Suspension With 55mm Outside Strut Diameter Check which applies

Specifications

As Bilstein publishes them.

Internal Design: Monotube
Finish: Dampers: Zinc Plated Front Yellow Rear/Springs: Blue
Front Main Spring Rate (lbs/in): 342
Front Main Spring Type: Progressive
Rear Main Spring Rate (lbs/in): 423
Rear Main Spring Type: Progressive
Front Tender Spring Rate (lbs/in): N/A
Rear Tender Spring Rate (lbs/in): N/A
Spanner Wrench Set: E4-XS1-Z001A00

Installation & warranty

Bilstein installation instructions (PDF)

Limited 5-Year Warranty · Warranty terms (PDF)

100% genuine Bilstein, from authorized North American distribution.

BILSTEIN is a trademark of thyssenkrupp Bilstein GmbH. Eskimo is an independent retailer.
