BestB16 coilovers

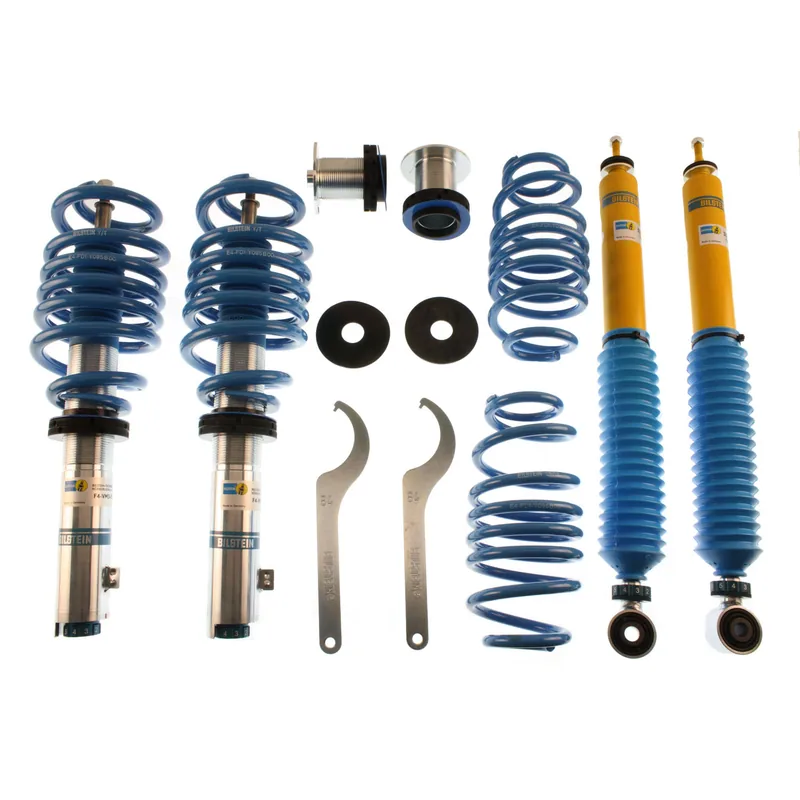

Bilstein 48-147231 B16 PSS10 Suspension Kit

Sold each

Call (780) 473-2424

We reply to price requests within one business day.

Will it fit your vehicle?

Want it installed?Eskimo Auto Repair installs Bilstein suspension in Edmonton.

Country of origin: Germany
Box: Ships in Bilstein's own box (about 64 × 32 × 32 cm, 29.5 kg)

100% genuine Bilstein, from authorized North American distribution.

Fitment

80 vehicles, newest years first

Vehicle	Years	Submodels	Position	Drive / body / engine	Notes
Audi A4	Years	2016	Submodels	Premium, Premium Plus	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 20-50mm, up to 1245kg Axle Load Rear Lowered Height: 30-50mm, up to 1225kg Axle Load Without Electronic Suspension Check which applies
Audi A4	Years	2015	Submodels	Premium, Premium Plus, Prestige	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 20-50mm, up to 1245kg Axle Load Rear Lowered Height: 30-50mm, up to 1225kg Axle Load Without Electronic Suspension Check which applies
Audi A4	Years	2009–2014	Submodels	Base	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 20-50mm, up to 1245kg Axle Load Rear Lowered Height: 30-50mm, up to 1225kg Axle Load Without Electronic Suspension Check which applies
Audi A4 Quattro (AWD)	Years	2016	Submodels	Premium, Premium Plus	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 20-50mm, up to 1245kg Axle Load Rear Lowered Height: 30-50mm, up to 1225kg Axle Load Without Electronic Suspension Check which applies
Audi A4 Quattro (AWD)	Years	2015	Submodels	Premium, Premium Plus, Prestige	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 20-50mm, up to 1245kg Axle Load Rear Lowered Height: 30-50mm, up to 1225kg Axle Load Without Electronic Suspension Check which applies
Audi A4 Quattro (AWD)	Years	2013–2014	Submodels	Base	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 20-50mm, up to 1245kg Axle Load Rear Lowered Height: 30-50mm, up to 1225kg Axle Load Without Electronic Suspension Check which applies
Audi A4 Quattro (AWD)	Years	2009–2012	Submodels	Avant, Base	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 20-50mm, up to 1245kg Axle Load Rear Lowered Height: 30-50mm, up to 1225kg Axle Load Without Electronic Suspension Check which applies
Audi A5	Years	2010–2014	Submodels	Cabriolet	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 20-50mm, up to 1245kg Axle Load Rear Lowered Height: 30-50mm, up to 1225kg Axle Load Without Electronic Suspension Check which applies
Audi A5 Quattro (AWD)	Years	2017	Submodels	Sport	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 20-50mm, up to 1245kg Axle Load Rear Lowered Height: 30-50mm, up to 1225kg Axle Load Without Electronic Suspension Check which applies
Audi A5 Quattro (AWD)	Years	2016	Submodels	Premium, Premium Plus	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 20-50mm, up to 1245kg Axle Load Rear Lowered Height: 30-50mm, up to 1225kg Axle Load Without Electronic Suspension Check which applies
Audi A5 Quattro (AWD)	Years	2015	Submodels	Premium, Premium Plus, Prestige	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 20-50mm, up to 1245kg Axle Load Rear Lowered Height: 30-50mm, up to 1225kg Axle Load Without Electronic Suspension Check which applies
Audi A5 Quattro (AWD)	Years	2010–2014	Submodels	Base, Cabriolet	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 20-50mm, up to 1245kg Axle Load Rear Lowered Height: 30-50mm, up to 1225kg Axle Load Without Electronic Suspension Check which applies
Audi A5 Quattro (AWD)	Years	2008–2009	Submodels	Base	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 20-50mm, up to 1245kg Axle Load Rear Lowered Height: 30-50mm, up to 1225kg Axle Load Without Electronic Suspension Check which applies
Audi RS5	Years	2015	Submodels	Base, Cabriolet	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 10-30mm, up to 1215kg Axle Load Rear Lowered Height: 10-20mm, up to 1215kg Axle Load Without Electronic Suspension Check which applies
Audi RS5	Years	2013–2014	Submodels	Base	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 10-30mm, up to 1215kg Axle Load Rear Lowered Height: 10-20mm, up to 1215kg Axle Load Without Electronic Suspension Check which applies
Audi S4	Years	2014–2016	Submodels	Premium Plus, Prestige	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 20-50mm, up to 1245kg Axle Load Rear Lowered Height: 30-50mm, up to 1225kg Axle Load Without Electronic Suspension Check which applies
Audi S4	Years	2010–2013	Submodels	Base	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 10-30mm, up to 1245kg Axle Load Rear Lowered Height: 10-20mm, up to 1225kg Axle Load Without Electronic Suspension Check which applies
Audi S5	Years	2017	Submodels	Base	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 20-50mm, up to 1245kg Axle Load Rear Lowered Height: 30-50mm, up to 1225kg Axle Load Without Electronic Suspension Check which applies
Audi S5	Years	2014–2016	Submodels	Premium Plus, Prestige	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 20-50mm, up to 1245kg Axle Load Rear Lowered Height: 30-50mm, up to 1225kg Axle Load Without Electronic Suspension Check which applies
Audi S5	Years	2010–2013	Submodels	Base, Cabriolet	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 10-30mm, up to 1215kg Axle Load Rear Lowered Height: 10-20mm, up to 1215kg Axle Load Without Electronic Suspension Check which applies
Audi S5	Years	2008–2009	Submodels	Base	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 10-30mm, up to 1215kg Axle Load Rear Lowered Height: 10-20mm, up to 1215kg Axle Load Without Electronic Suspension Check which applies

Specifications

As Bilstein publishes them.

Internal Design: Monotube
Finish: Dampers: Zinc Plated Front Yellow Rear/Springs: Blue
Front Main Spring Rate (lbs/in): 566
Front Main Spring Type: Linear
Rear Main Spring Rate (lbs/in): 285
Rear Main Spring Type: Linear
Front Tender Spring Rate (lbs/in): N/A
Rear Tender Spring Rate (lbs/in): N/A
Spanner Wrench Set: E4-XS1-Z001A00

Installation & warranty

Bilstein installation instructions (PDF)

Limited 5-Year Warranty · Warranty terms (PDF)

100% genuine Bilstein, from authorized North American distribution.

BILSTEIN is a trademark of thyssenkrupp Bilstein GmbH. Eskimo is an independent retailer.
