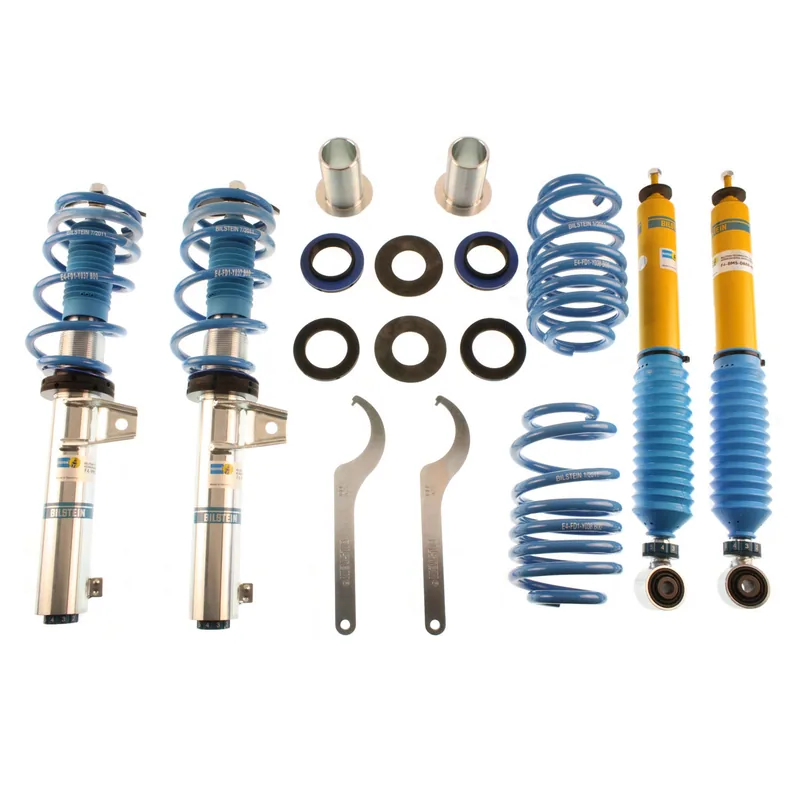

Bilstein 48-138864 B16 PSS10 Suspension Kit
BestB16 coilovers

Bilstein 48-138864 B16 PSS10 Suspension Kit

Sold each

Call (780) 473-2424

We reply to price requests within one business day.

Will it fit your vehicle?

Want it installed?Eskimo Auto Repair installs Bilstein suspension in Edmonton.
Country of origin
Germany
Box
Ships in Bilstein's own box (about 60 × 30 × 30 cm, 25.5 kg)

100% genuine Bilstein, from authorized North American distribution.

Fitment

8 vehicles, newest years first

Audi TT2008–2009BaseFront and rearAll
  • Front Lowered Height: 20-40mm, up to 1040kg Axle Load
  • Rear Lowered Height: 20-40mm, up to 1040kg Axle Load
  • Without Electronic Suspension
  • Check which applies
Audi TT Quattro (AWD)2014–2015BaseFront and rearAll
  • Front Lowered Height: 20-40mm, up to 1040kg Axle Load
  • Rear Lowered Height: 20-40mm, up to 1040kg Axle Load
  • Without Electronic Suspension
  • Check which applies
Audi TT Quattro (AWD)2008–2011BaseFront and rearAll
  • Front Lowered Height: 20-40mm, up to 1040kg Axle Load
  • Rear Lowered Height: 20-40mm, up to 1040kg Axle Load
  • Without Electronic Suspension
  • Check which applies

Specifications

As Bilstein publishes them.

Internal Design
Monotube
Finish
Dampers: Zinc Plated Front Yellow Rear/Springs: Blue
Front Main Spring Rate (lbs/in)
274
Front Main Spring Type
Progressive
Rear Main Spring Rate (lbs/in)
423
Rear Main Spring Type
Progressive
Front Tender Spring Rate (lbs/in)
N/A
Rear Tender Spring Rate (lbs/in)
N/A
Spanner Wrench Set
E4-XS1-Z001A00

Installation & warranty

Bilstein installation instructions (PDF)
Limited 5-Year Warranty · Warranty terms (PDF)

100% genuine Bilstein, from authorized North American distribution.

BILSTEIN is a trademark of thyssenkrupp Bilstein GmbH. Eskimo is an independent retailer.
