BestB16 coilovers

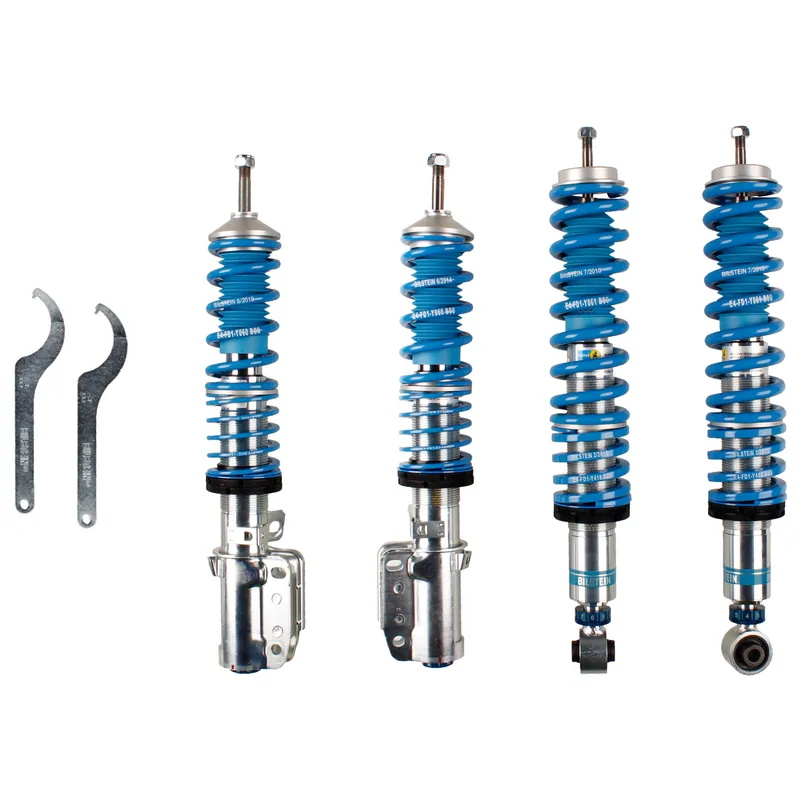

Bilstein 48-137539 B16 PSS10 Suspension Kit

Sold each

Call (780) 473-2424

We reply to price requests within one business day.

Will it fit your vehicle?

Want it installed?Eskimo Auto Repair installs Bilstein suspension in Edmonton.

Country of origin: Germany
Box: Ships in Bilstein's own box (about 64 × 32 × 32 cm, 29.5 kg)

100% genuine Bilstein, from authorized North American distribution.

Fitment

14 vehicles, newest years first

Vehicle	Years	Submodels	Position	Drive / body / engine	Notes
Porsche 911	Years	1993–1994	Submodels	Carrera 2, Carrera 4, RS America, Turbo 3.6	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 20-40mm Rear Lowered Height: 20-40mm Euro RS Version Check which applies
Porsche 911	Years	1992	Submodels	Carrera 2, Carrera 4, Turbo	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 20-40mm Rear Lowered Height: 20-40mm Euro RS Version Check which applies
Porsche 911	Years	1991	Submodels	Turbo	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 20-40mm Rear Lowered Height: 20-40mm Euro RS Version Front Lowered Height: 20-40mm Rear Lowered Height: 20-40mm Euro RS Version From Chassis/VIN MS4 01468, MS4 10519 Front Lowered Height: 20-40mm Rear Lowered Height: 20-40mm Euro RS Version From Chassis/VIN MS4 30300, MS4 40241 Front Lowered Height: 20-40mm Rear Lowered Height: 20-40mm Euro RS Version From Chassis/VIN MS4 50778, MS4 60467 Check which applies
Porsche 911	Years	1991	Submodels	Carrera 2, Carrera 4	Position	Front and rear	Drive / body / engine	Convertible	Notes	Front Lowered Height: 20-40mm Rear Lowered Height: 20-40mm Euro RS Version Front Lowered Height: 20-40mm Rear Lowered Height: 20-40mm Euro RS Version From Chassis/VIN MS4 01468, MS4 10519 Front Lowered Height: 20-40mm Rear Lowered Height: 20-40mm Euro RS Version From Chassis/VIN MS4 30300, MS4 40241 Front Lowered Height: 20-40mm Rear Lowered Height: 20-40mm Euro RS Version From Chassis/VIN MS4 50778, MS4 60467 Check which applies
Porsche 911	Years	1991	Submodels	Carrera 2, Carrera 4	Position	Front and rear	Drive / body / engine	Coupe	Notes	Front Lowered Height: 20-40mm Rear Lowered Height: 20-40mm Euro RS Version Front Lowered Height: 20-40mm Rear Lowered Height: 20-40mm Euro RS Version From Chassis/VIN MS4 01468, MS4 10519 Front Lowered Height: 20-40mm Rear Lowered Height: 20-40mm Euro RS Version From Chassis/VIN MS4 30300, MS4 40241 Front Lowered Height: 20-40mm Rear Lowered Height: 20-40mm Euro RS Version From Chassis/VIN MS4 50778, MS4 60467 Check which applies
Porsche 911	Years	1991	Submodels	Carrera 2, Carrera 4	Position	Front and rear	Drive / body / engine	Targa	Notes	Front Lowered Height: 20-40mm Rear Lowered Height: 20-40mm Euro RS Version Front Lowered Height: 20-40mm Rear Lowered Height: 20-40mm Euro RS Version From Chassis/VIN MS4 01468, MS4 10519 Front Lowered Height: 20-40mm Rear Lowered Height: 20-40mm Euro RS Version From Chassis/VIN MS4 30300, MS4 40241 Front Lowered Height: 20-40mm Rear Lowered Height: 20-40mm Euro RS Version From Chassis/VIN MS4 50778, MS4 60467 Check which applies

Specifications

As Bilstein publishes them.

Internal Design: Monotube
Finish: Dampers: Zinc Plated/Springs: Blue
Front Main Spring Rate (lbs/in): 289
Front Main Spring Type: Linear
Rear Main Spring Rate (lbs/in): 514
Rear Main Spring Type: Linear
Front Tender Spring Rate (lbs/in): 114
Rear Tender Spring Rate (lbs/in): 69
Spanner Wrench Set: E4-XS1-Z001A00

Installation & warranty

Bilstein installation instructions (PDF)

Limited 5-Year Warranty · Warranty terms (PDF)

100% genuine Bilstein, from authorized North American distribution.

BILSTEIN is a trademark of thyssenkrupp Bilstein GmbH. Eskimo is an independent retailer.
