BestB16 coilovers

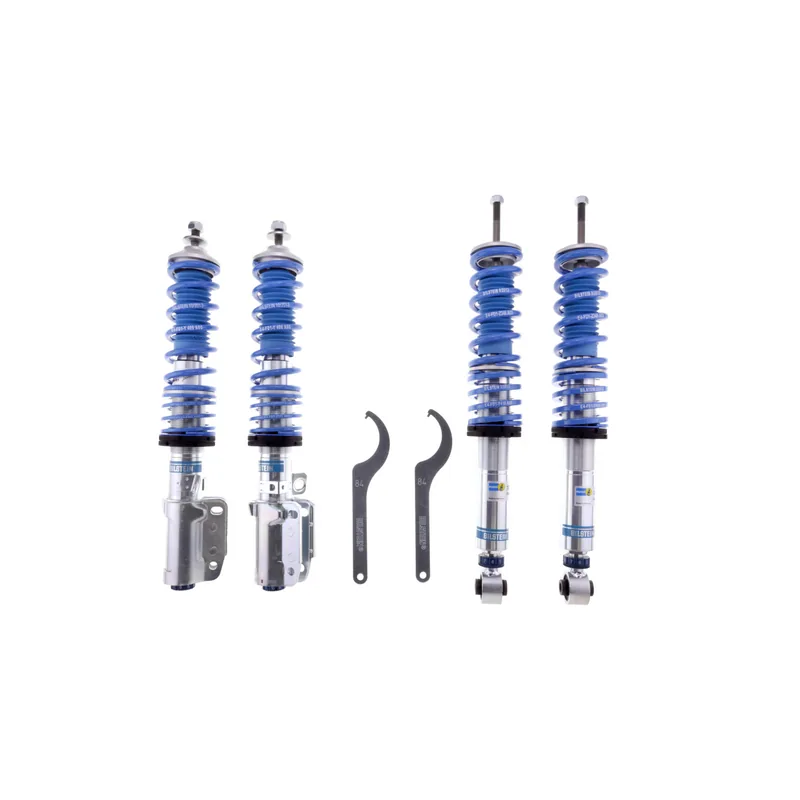

Bilstein 48-132626 B16 PSS10 Suspension Kit

Sold each

Call (780) 473-2424

We reply to price requests within one business day.

Will it fit your vehicle?

Want it installed?Eskimo Auto Repair installs Bilstein suspension in Edmonton.

Country of origin: Germany
Box: Ships in Bilstein's own box (about 62 × 31 × 31 cm, 26.6 kg)

100% genuine Bilstein, from authorized North American distribution.

Fitment

5 vehicles, newest years first

Vehicle	Years	Submodels	Position	Drive / body / engine	Notes
Porsche 911	Years	1991	Submodels	Carrera 2, Carrera 4	Position	Front and rear	Drive / body / engine	Convertible	Notes	Front Lowered Height: 20-40mm, up to 780kg Axle Load Rear Lowered Height: 20-40mm, up to 1150kg Axle Load To Chassis/VIN MS4 01467, MS4 10518 Front Lowered Height: 20-40mm, up to 780kg Axle Load Rear Lowered Height: 20-40mm, up to 1150kg Axle Load To Chassis/VIN MS4 30299, MS4 40240 Front Lowered Height: 20-40mm, up to 780kg Axle Load Rear Lowered Height: 20-40mm, up to 1150kg Axle Load To Chassis/VIN MS4 50777, MS4 60466 Check which applies
Porsche 911	Years	1991	Submodels	Carrera 2, Carrera 4	Position	Front and rear	Drive / body / engine	Coupe	Notes	Front Lowered Height: 20-40mm, up to 780kg Axle Load Rear Lowered Height: 20-40mm, up to 1150kg Axle Load To Chassis/VIN MS4 01467, MS4 10518 Front Lowered Height: 20-40mm, up to 780kg Axle Load Rear Lowered Height: 20-40mm, up to 1150kg Axle Load To Chassis/VIN MS4 30299, MS4 40240 Front Lowered Height: 20-40mm, up to 780kg Axle Load Rear Lowered Height: 20-40mm, up to 1150kg Axle Load To Chassis/VIN MS4 50777, MS4 60466 Check which applies
Porsche 911	Years	1991	Submodels	Carrera 2, Carrera 4	Position	Front and rear	Drive / body / engine	Targa	Notes	Front Lowered Height: 20-40mm, up to 780kg Axle Load Rear Lowered Height: 20-40mm, up to 1150kg Axle Load To Chassis/VIN MS4 01467, MS4 10518 Front Lowered Height: 20-40mm, up to 780kg Axle Load Rear Lowered Height: 20-40mm, up to 1150kg Axle Load To Chassis/VIN MS4 30299, MS4 40240 Front Lowered Height: 20-40mm, up to 780kg Axle Load Rear Lowered Height: 20-40mm, up to 1150kg Axle Load To Chassis/VIN MS4 50777, MS4 60466 Check which applies
Porsche 911	Years	1990	Submodels	Carrera 2, Carrera 4	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 20-40mm, up to 780kg Axle Load Rear Lowered Height: 20-40mm, up to 1150kg Axle Load Check which applies
Porsche 911	Years	1989	Submodels	Carrera 4	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 20-40mm, up to 780kg Axle Load Rear Lowered Height: 20-40mm, up to 1150kg Axle Load To Chassis # 96MS4_01467, 96MS4_10518 Check which applies

Specifications

As Bilstein publishes them.

Internal Design: Monotube
Finish: Dampers: Zinc Plated/Springs: Blue
Front Main Spring Rate (lbs/in): 229
Front Main Spring Type: Linear
Rear Main Spring Rate (lbs/in): 406
Rear Main Spring Type: Linear
Front Tender Spring Rate (lbs/in): 257
Rear Tender Spring Rate (lbs/in): 69
Spanner Wrench Set: E4-XS1-Z001A00

Installation & warranty

Bilstein installation instructions (PDF)

Limited 5-Year Warranty · Warranty terms (PDF)

100% genuine Bilstein, from authorized North American distribution.

BILSTEIN is a trademark of thyssenkrupp Bilstein GmbH. Eskimo is an independent retailer.
