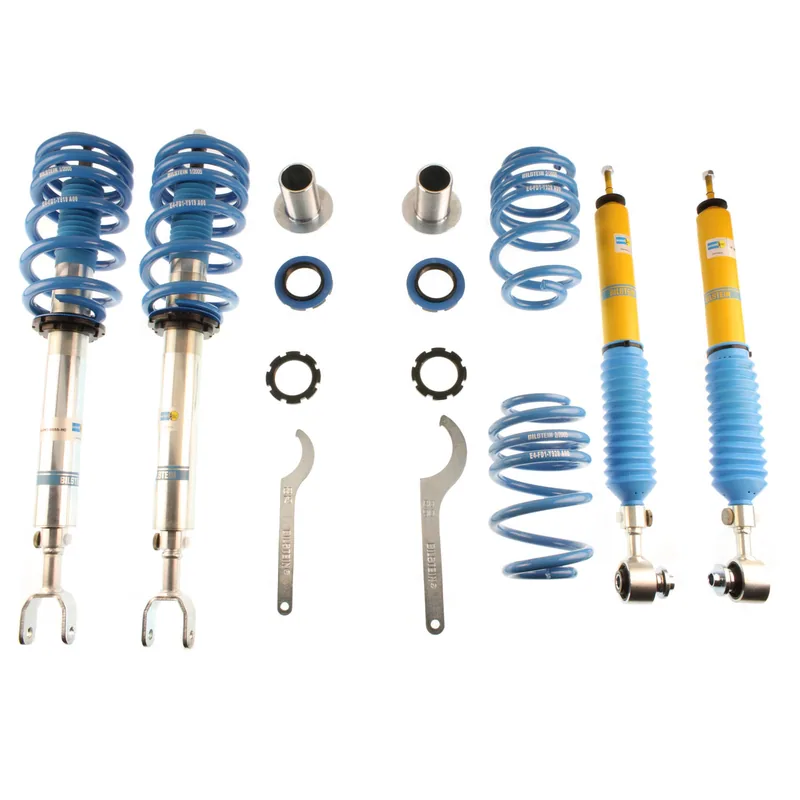

Bilstein 48-116541 B16 PSS9 Suspension Kit

Bilstein 48-116541 B16 PSS9 Suspension Kit

Sold each

Call (780) 473-2424

We reply to price requests within one business day.

Will it fit your vehicle?

Country of origin
Germany
Box
Ships in Bilstein's own box (about 64 × 32 × 32 cm, 31 kg)

100% genuine Bilstein, from authorized North American distribution.

Fitment

24 vehicles, newest years first

Audi A62006–2011BaseFront and rearAll
  • Front Lowered Height: 40-60mm, up to 1410kg Axle Load
  • Rear Lowered Height: 40-60mm, up to 1380kg Axle Load
  • Check which applies
Audi A6 Quattro (AWD)2006–2011Avant, BaseFront and rearAll
  • Front Lowered Height: 40-60mm, up to 1410kg Axle Load
  • Rear Lowered Height: 40-60mm, up to 1380kg Axle Load
  • Check which applies
Audi A6 Quattro (AWD)2005BaseFront and rearAll
  • Front Lowered Height: 40-60mm, up to 1410kg Axle Load
  • Rear Lowered Height: 40-60mm, up to 1380kg Axle Load
  • Check which applies
Audi S62007–2011BaseFront and rearAll
  • Front Lowered Height: 40-60mm, up to 1410kg Axle Load
  • Rear Lowered Height: 40-60mm, up to 1380kg Axle Load
  • Check which applies

Specifications

As Bilstein publishes them.

Internal Design
Monotube
Finish
Dampers: Zinc Plated Front Yellow Rear/Springs: Blue
Front Main Spring Rate (lbs/in)
417
Front Main Spring Type
Progressive
Rear Main Spring Rate (lbs/in)
571
Rear Main Spring Type
Progressive
Front Tender Spring Rate (lbs/in)
N/A
Rear Tender Spring Rate (lbs/in)
N/A
Spanner Wrench Set
E4-XS1-Z001A00
