Bilstein 48-115674 B16 PSS9 Suspension Kit
BestB16 coilovers

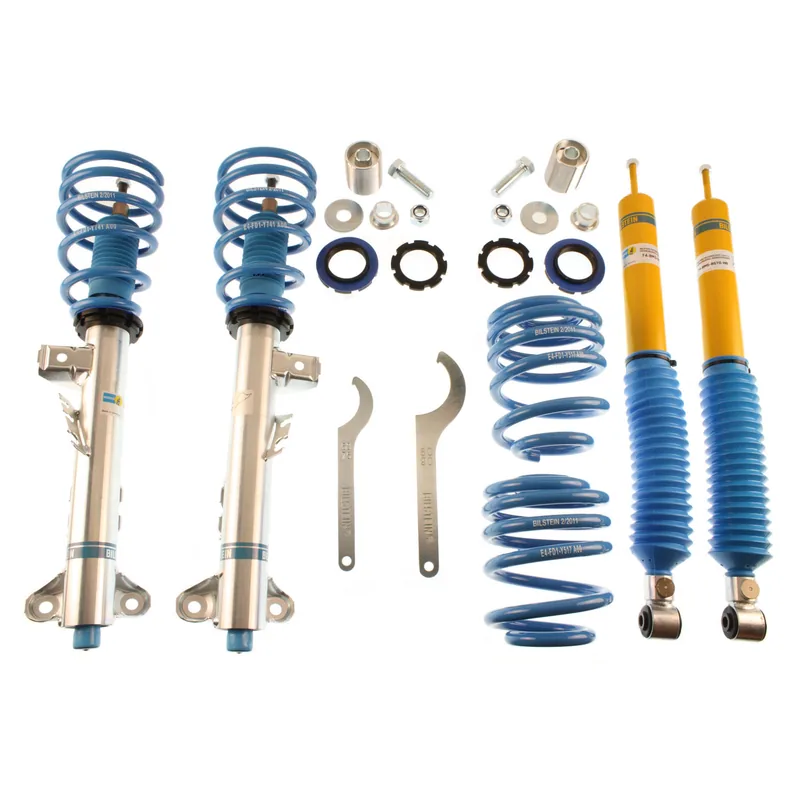

Bilstein 48-115674 B16 PSS9 Suspension Kit

Sold each

Call (780) 473-2424

We reply to price requests within one business day.

Will it fit your vehicle?

Want it installed?Eskimo Auto Repair installs Bilstein suspension in Edmonton.
Country of origin
Germany
Box
Ships in Bilstein's own box (about 64 × 32 × 32 cm, 28.3 kg)

100% genuine Bilstein, from authorized North American distribution.

Fitment

4 vehicles, newest years first

BMW M31996–1999BaseFront and rearAll
  • Front Lowered Height: 30-40mm, up to 930kg Axle Load
  • Rear Lowered Height: 30-40mm, up to 1130kg Axle Load
  • Certain wheel and tire combinations could require wheels spacers to clear spring plate
  • Check which applies

Specifications

As Bilstein publishes them.

Internal Design
Monotube
Finish
Dampers: Zinc Plated Front Yellow Rear/Springs: Blue
Front Main Spring Rate (lbs/in)
457
Front Main Spring Type
Progressive
Rear Main Spring Rate (lbs/in)
586
Rear Main Spring Type
Progressive
Front Tender Spring Rate (lbs/in)
N/A
Rear Tender Spring Rate (lbs/in)
N/A
Spanner Wrench Set
E4-XS1-Z001A00

Installation & warranty

Bilstein installation instructions (PDF)
Limited 5-Year Warranty · Warranty terms (PDF)

100% genuine Bilstein, from authorized North American distribution.

BILSTEIN is a trademark of thyssenkrupp Bilstein GmbH. Eskimo is an independent retailer.
