Bilstein 48-105958 B16 PSS9 Suspension Kit
BestB16 coilovers

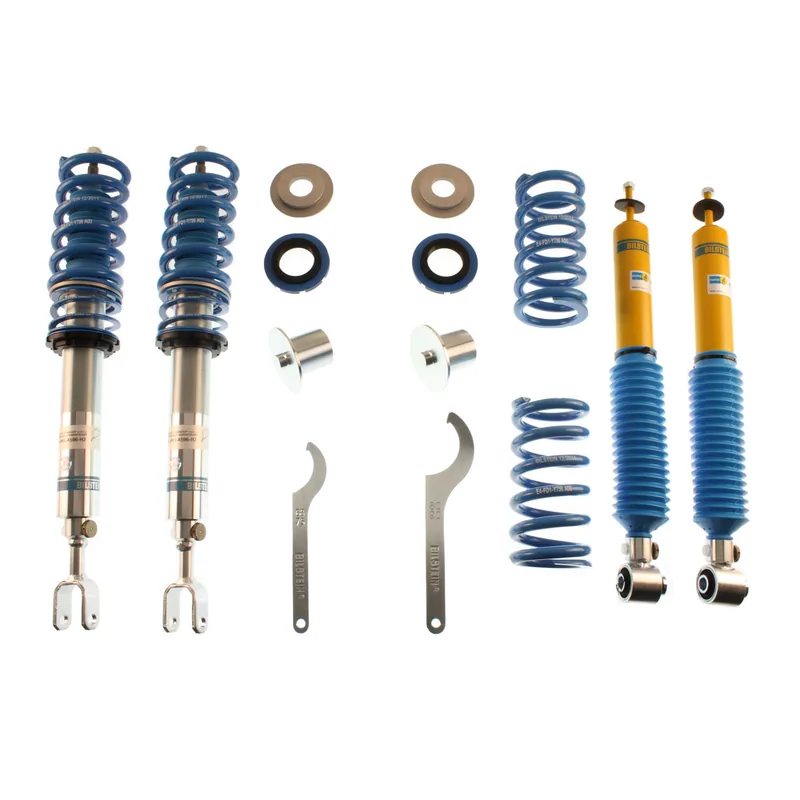

Bilstein 48-105958 B16 PSS9 Suspension Kit

Sold each

Call (780) 473-2424

We reply to price requests within one business day.

Will it fit your vehicle?

Want it installed?Eskimo Auto Repair installs Bilstein suspension in Edmonton.
Country of origin
Germany
Box
Ships in Bilstein's own box (about 62 × 31 × 31 cm, 26 kg)

100% genuine Bilstein, from authorized North American distribution.

Fitment

19 vehicles, newest years first

Audi RS42008Base, CabrioletFront and rearAll
  • Front Lowered Height: 10-30mm, up to 1250kg Axle Load
  • Rear Lowered Height: 10-30mm, up to 1170kg Axle Load
  • For proper installation, may require redesigned OE front top mount. Part number 8E0412377C.
  • Dynamic Ride Control (DRC) must be removed
  • Check which applies
Audi RS42007BaseFront and rearAll
  • Front Lowered Height: 10-30mm, up to 1250kg Axle Load
  • Rear Lowered Height: 10-30mm, up to 1170kg Axle Load
  • For proper installation, may require redesigned OE front top mount. Part number 8E0412377C.
  • Dynamic Ride Control (DRC) must be removed
  • Check which applies
Audi S42009CabrioletFront and rearAll
  • Front Lowered Height: 10-30mm, up to 1250kg Axle Load
  • Rear Lowered Height: 10-30mm, up to 1170kg Axle Load
  • For proper installation, may require redesigned OE front top mount. Part number 8E0412377C.
  • Check which applies
Audi S42004–2008Avant, Base, CabrioletFront and rearAll
  • Front Lowered Height: 10-30mm, up to 1250kg Axle Load
  • Rear Lowered Height: 10-30mm, up to 1170kg Axle Load
  • For proper installation, may require redesigned OE front top mount. Part number 8E0412377C.
  • Check which applies

Specifications

As Bilstein publishes them.

Internal Design
Monotube
Finish
Dampers: Zinc Plated Front Yellow Rear/Springs: Blue
Front Main Spring Rate (lbs/in)
637
Front Main Spring Type
Linear
Rear Main Spring Rate (lbs/in)
637
Rear Main Spring Type
Linear
Front Tender Spring Rate (lbs/in)
79
Rear Tender Spring Rate (lbs/in)
N/A
Spanner Wrench Set
E4-XS1-Z001A00

Installation & warranty

Bilstein installation instructions (PDF)
Limited 5-Year Warranty · Warranty terms (PDF)

100% genuine Bilstein, from authorized North American distribution.

BILSTEIN is a trademark of thyssenkrupp Bilstein GmbH. Eskimo is an independent retailer.
