BestB16 coilovers

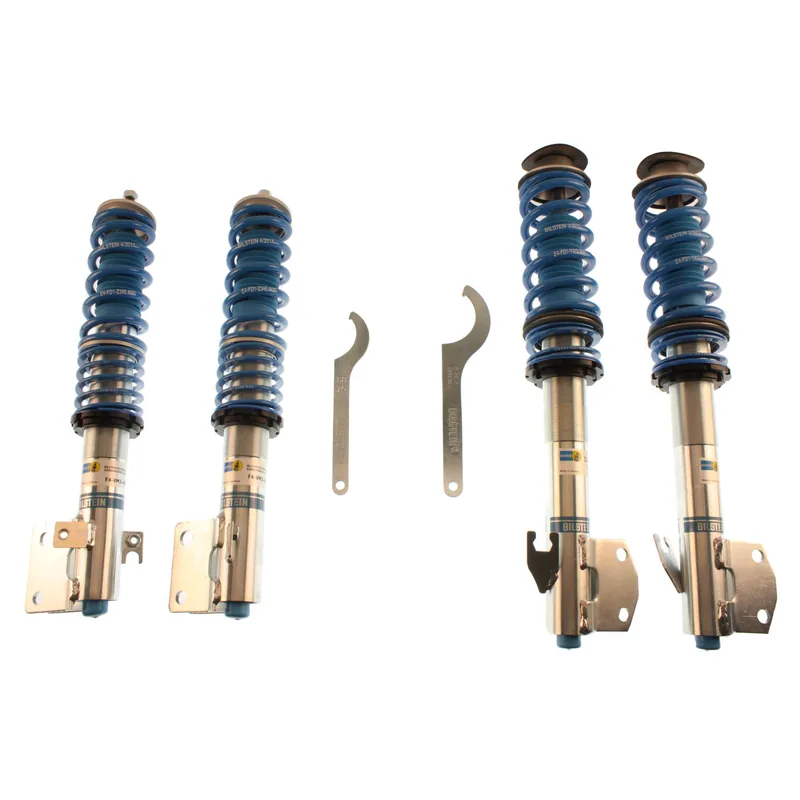

Bilstein 48-101288 B16 PSS9 Suspension Kit

Sold each

Call (780) 473-2424

We reply to price requests within one business day.

Will it fit your vehicle?

Want it installed?Eskimo Auto Repair installs Bilstein suspension in Edmonton.

Country of origin: Germany
Box: Ships in Bilstein's own box (about 62 × 31 × 31 cm, 26.1 kg)

100% genuine Bilstein, from authorized North American distribution.

Fitment

28 vehicles, newest years first

Vehicle	Years	Submodels	Position	Drive / body / engine	Notes
Subaru Impreza	Years	2006–2007	Submodels	2.5i, Outback Sport, WRX, WRX Limited, WRX TR	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 25-45mm Rear Lowered Height: 20-40mm Front Lowered Height: 25-45mm Rear Lowered Height: 20-40mm Requires 2001-2003 rear upper mounts Requires 15mm rear wheel spacers Check which applies
Subaru Impreza	Years	2005	Submodels	Outback Sport, RS, WRX	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 25-45mm Rear Lowered Height: 20-40mm Front Lowered Height: 25-45mm Rear Lowered Height: 20-40mm Requires 15mm rear wheel spacers Check which applies
Subaru Impreza	Years	2004	Submodels	Outback, RS, TS, WRX, WRX STI	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 25-45mm Rear Lowered Height: 20-40mm Front Lowered Height: 25-45mm Rear Lowered Height: 20-40mm Requires 2001-2003 rear upper mounts Requires 15mm rear wheel spacers Check which applies
Subaru Impreza	Years	2003	Submodels	Outback, RS, TS, WRX	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 25-45mm Rear Lowered Height: 20-40mm Check which applies
Subaru Impreza	Years	2002	Submodels	Outback, RS, TS, WRX	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 25-45mm Front Lowered Height: 25-45mm Rear Lowered Height: 20-40mm Requires 15mm rear wheel spacers Check which applies
Subaru Impreza	Years	2001	Submodels	L, Outback	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 25-45mm

Specifications

As Bilstein publishes them.

Internal Design: Monotube
Finish: Dampers: Zinc Plated/Springs: Blue
Front Main Spring Rate (lbs/in): 405
Front Main Spring Type: Linear
Rear Main Spring Rate (lbs/in): 371
Rear Main Spring Type: Linear
Front Tender Spring Rate (lbs/in): 114
Rear Tender Spring Rate (lbs/in): 142
Spanner Wrench Set: E4-XS1-Z001A00

Installation & warranty

Bilstein installation instructions (PDF)

Limited 5-Year Warranty · Warranty terms (PDF)

100% genuine Bilstein, from authorized North American distribution.

BILSTEIN is a trademark of thyssenkrupp Bilstein GmbH. Eskimo is an independent retailer.
