BestB16 coilovers

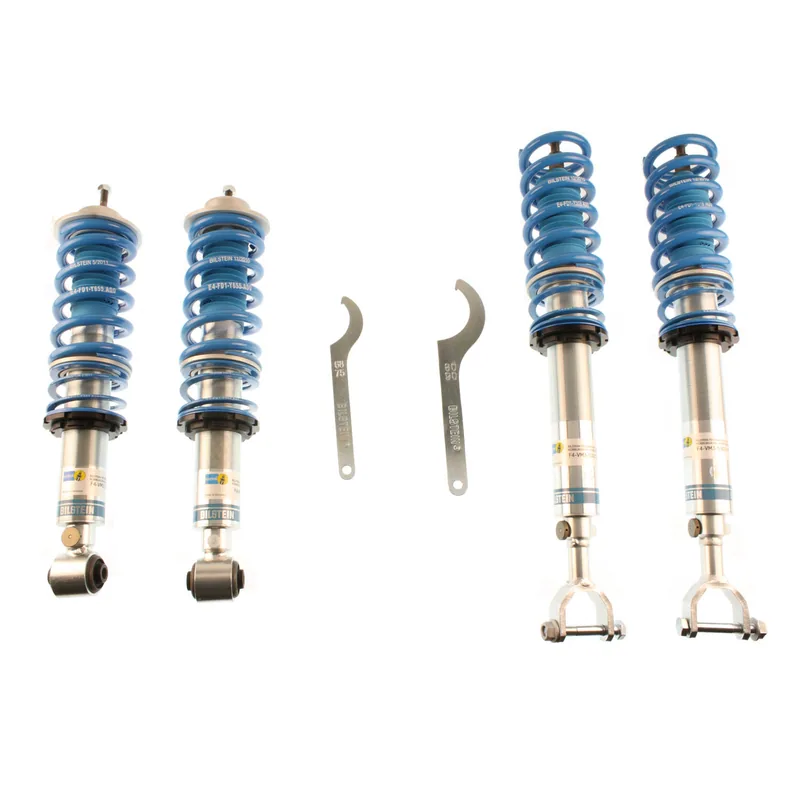

Bilstein 48-088688 B16 PSS9 Suspension Kit

Sold each

Call (780) 473-2424

We reply to price requests within one business day.

Will it fit your vehicle?

Want it installed?Eskimo Auto Repair installs Bilstein suspension in Edmonton.

Country of origin: Germany
Box: Ships in Bilstein's own box (about 62 × 31 × 31 cm, 26.2 kg)

100% genuine Bilstein, from authorized North American distribution.

Fitment

29 vehicles, newest years first

Vehicle	Years	Submodels	Position	Drive / body / engine	Notes
Audi A6 Quattro (AWD)	Years	2004	Submodels	Avant, Base	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 25-45mm, up to 1260kg Axle Load Front Lowered Height: 25-45mm, up to 1260kg Axle Load Rear Lowered Height: 20-40mm, up to 1200kg Axle Load Dynamic Ride Control (DRC) must be removed Check which applies
Audi A6 Quattro (AWD)	Years	1999–2003	Submodels	Avant, Base	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 25-45mm, up to 1260kg Axle Load Rear Lowered Height: 20-40mm, up to 1200kg Axle Load Dynamic Ride Control (DRC) must be removed Check which applies
Audi A6 Quattro (AWD)	Years	1998	Submodels	Base	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 25-45mm, up to 1260kg Axle Load Rear Lowered Height: 20-40mm, up to 1200kg Axle Load Dynamic Ride Control (DRC) must be removed Check which applies
Audi RS6	Years	2003	Submodels	Base	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 25-45mm, up to 1260kg Axle Load Rear Lowered Height: 20-40mm, up to 1200kg Axle Load Dynamic Ride Control (DRC) must be removed Check which applies
Audi S6	Years	2002–2003	Submodels	Avant	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 25-45mm, up to 1260kg Axle Load Rear Lowered Height: 20-40mm, up to 1200kg Axle Load Dynamic Ride Control (DRC) must be removed Check which applies
Volkswagen Passat	Years	2005	Submodels	GLS 4 Motion, GLX 4 Motion	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 25-45mm, up to 1260kg Axle Load Rear Lowered Height: 20-40mm, up to 1200kg Axle Load Dynamic Ride Control (DRC) must be removed Check which applies
Volkswagen Passat	Years	2004	Submodels	GLS 4 Motion, GLX 4 Motion, W8	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 25-45mm, up to 1260kg Axle Load Rear Lowered Height: 20-40mm, up to 1200kg Axle Load Dynamic Ride Control (DRC) must be removed Check which applies
Volkswagen Passat	Years	2003	Submodels	GLX 4 Motion, W8	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 25-45mm, up to 1260kg Axle Load Rear Lowered Height: 20-40mm, up to 1200kg Axle Load Dynamic Ride Control (DRC) must be removed Check which applies
Volkswagen Passat	Years	2002	Submodels	GLS 4 Motion, GLX 4 Motion, W8	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 25-45mm, up to 1260kg Axle Load Rear Lowered Height: 20-40mm, up to 1200kg Axle Load Dynamic Ride Control (DRC) must be removed Check which applies
Volkswagen Passat	Years	2001	Submodels	GLS 4 Motion, GLX 4 Motion	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 25-45mm, up to 1260kg Axle Load Rear Lowered Height: 20-40mm, up to 1200kg Axle Load Dynamic Ride Control (DRC) must be removed Check which applies
Volkswagen Passat	Years	2000	Submodels	4 Motion	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 25-45mm, up to 1260kg Axle Load Rear Lowered Height: 20-40mm, up to 1200kg Axle Load Dynamic Ride Control (DRC) must be removed Check which applies

Specifications

As Bilstein publishes them.

Internal Design: Monotube
Finish: Dampers: Zinc Plated/Springs: Blue
Front Main Spring Rate (lbs/in): 514
Front Main Spring Type: Linear
Rear Main Spring Rate (lbs/in): 571
Rear Main Spring Type: Linear
Front Tender Spring Rate (lbs/in): 79
Rear Tender Spring Rate (lbs/in): 79
Spanner Wrench Set: E4-XS1-Z001A00

Installation & warranty

Bilstein installation instructions (PDF)

Limited 5-Year Warranty · Warranty terms (PDF)

100% genuine Bilstein, from authorized North American distribution.
