BestB16 coilovers

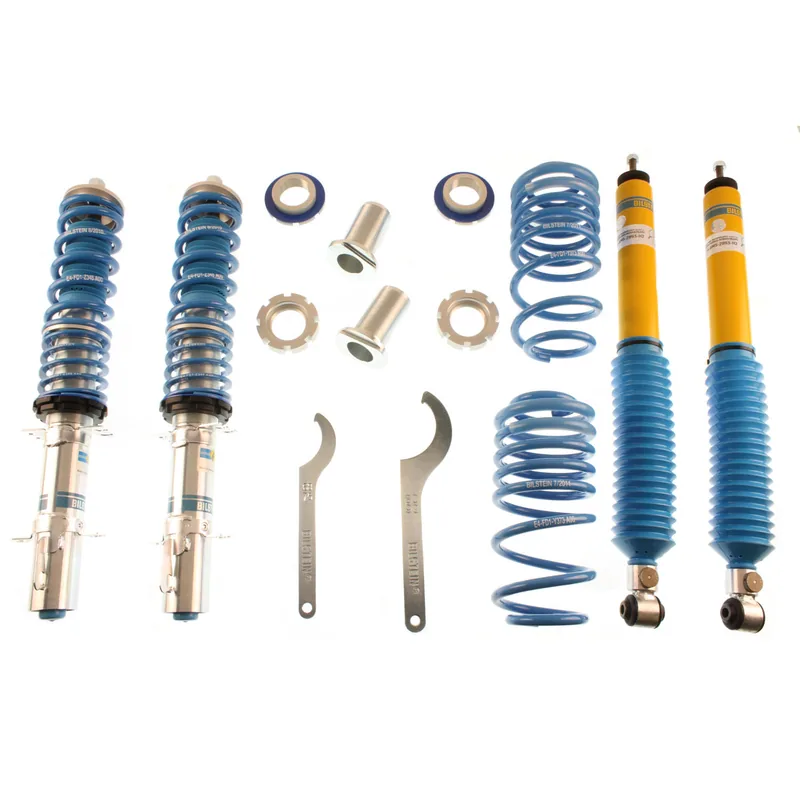

Bilstein 48-080651 B16 PSS9 Suspension Kit

Sold each

Call (780) 473-2424

We reply to price requests within one business day.

Will it fit your vehicle?

Want it installed?Eskimo Auto Repair installs Bilstein suspension in Edmonton.

Country of origin: Germany
Box: Ships in Bilstein's own box (about 60 × 30 × 30 cm, 23.5 kg)

100% genuine Bilstein, from authorized North American distribution.

Fitment

104 vehicles, newest years first

Vehicle	Years	Submodels	Position	Drive / body / engine	Notes
Volkswagen Beetle	Years	2010	Submodels	Base	Position	Front and rear	Drive / body / engine	All	Notes	—
Volkswagen Beetle	Years	2009	Submodels	Base	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 25-45mm, up to 1060kg Axle Load Rear Lowered Height: 20-40mm, up to 1010kg Axle Load Wheel spacers may be required for some wheel/tire combinations Check which applies
Volkswagen Beetle	Years	2008	Submodels	S, SE	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 25-45mm, up to 1060kg Axle Load Rear Lowered Height: 20-40mm, up to 1010kg Axle Load Wheel spacers may be required for some wheel/tire combinations Check which applies
Volkswagen Beetle	Years	2007	Submodels	2.5	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 25-45mm, up to 1060kg Axle Load Rear Lowered Height: 20-40mm, up to 1010kg Axle Load Wheel spacers may be required for some wheel/tire combinations Check which applies
Volkswagen Beetle	Years	2006	Submodels	2.5, TDI	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 25-45mm, up to 1060kg Axle Load Rear Lowered Height: 20-40mm, up to 1010kg Axle Load Wheel spacers may be required for some wheel/tire combinations Check which applies
Volkswagen Beetle	Years	2005	Submodels	GL, GLS, GLS TDI	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 25-45mm, up to 1060kg Axle Load Rear Lowered Height: 20-40mm, up to 1010kg Axle Load Wheel spacers may be required for some wheel/tire combinations Check which applies
Volkswagen Beetle	Years	2003–2004	Submodels	GL, GLS, GLX, Turbo S	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 25-45mm, up to 1060kg Axle Load Rear Lowered Height: 20-40mm, up to 1010kg Axle Load Wheel spacers may be required for some wheel/tire combinations Check which applies
Volkswagen Beetle	Years	2002	Submodels	GL, GLS, GLX, Sport, Turbo S	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 25-45mm, up to 1060kg Axle Load Rear Lowered Height: 20-40mm, up to 1010kg Axle Load Wheel spacers may be required for some wheel/tire combinations Check which applies
Volkswagen Beetle	Years	2001	Submodels	GL, GLS, GLX, Sport	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 25-45mm, up to 1060kg Axle Load Rear Lowered Height: 20-40mm, up to 1010kg Axle Load Wheel spacers may be required for some wheel/tire combinations Check which applies
Volkswagen Beetle	Years	2000	Submodels	GL, GLS, GLX	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 25-45mm, up to 1060kg Axle Load Rear Lowered Height: 20-40mm, up to 1010kg Axle Load Wheel spacers may be required for some wheel/tire combinations Check which applies
Volkswagen Beetle	Years	1999	Submodels	GL, GLS	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 25-45mm, up to 1060kg Axle Load Rear Lowered Height: 20-40mm, up to 1010kg Axle Load Wheel spacers may be required for some wheel/tire combinations Check which applies
Volkswagen Beetle	Years	1998	Submodels	Base, TDI	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 25-45mm, up to 1060kg Axle Load Rear Lowered Height: 20-40mm, up to 1010kg Axle Load Wheel spacers may be required for some wheel/tire combinations Check which applies
Volkswagen Golf	Years	2006	Submodels	GL, GLS, GLS TDI, GTI 1.8T	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 25-45mm, up to 1060kg Axle Load Rear Lowered Height: 20-40mm, up to 1010kg Axle Load Wheel spacers may be required for some wheel/tire combinations Check which applies
Volkswagen Golf	Years	2005	Submodels	GL, GLS, GTI 1.8T, GTI VR6, TDI	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 25-45mm, up to 1060kg Axle Load Rear Lowered Height: 20-40mm, up to 1010kg Axle Load Wheel spacers may be required for some wheel/tire combinations Check which applies
Volkswagen Golf	Years	2004	Submodels	GL, GL TDI, GLS, GLS TDI, GTI 1.8T, GTI VR6	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 25-45mm, up to 1060kg Axle Load Rear Lowered Height: 20-40mm, up to 1010kg Axle Load Wheel spacers may be required for some wheel/tire combinations Check which applies
Volkswagen Golf	Years	2003	Submodels	GL, GLS, GTI 1.8T, GTI 20th Anniversary, GTI VR6	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 25-45mm, up to 1060kg Axle Load Rear Lowered Height: 20-40mm, up to 1010kg Axle Load Wheel spacers may be required for some wheel/tire combinations Check which applies
Volkswagen Golf	Years	2002	Submodels	GL, GLS, GTI 1.8T, GTI 337, GTI VR6	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 25-45mm, up to 1060kg Axle Load Rear Lowered Height: 20-40mm, up to 1010kg Axle Load Wheel spacers may be required for some wheel/tire combinations Check which applies
Volkswagen Golf	Years	2000–2001	Submodels	GL, GLS, GTI GLS, GTI GLX	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 25-45mm, up to 1060kg Axle Load Rear Lowered Height: 20-40mm, up to 1010kg Axle Load Wheel spacers may be required for some wheel/tire combinations Check which applies
Volkswagen Golf	Years	1999	Submodels	GL	Position	Front and rear	Drive / body / engine	All	Notes	Body code: A4 Front Lowered Height: 25-45mm, up to 1060kg Axle Load Rear Lowered Height: 20-40mm, up to 1010kg Axle Load Wheel spacers may be required for some wheel/tire combinations Check which applies
Volkswagen Golf	Years	1999	Submodels	GLS, GTI, TDI	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 25-45mm, up to 1060kg Axle Load Rear Lowered Height: 20-40mm, up to 1010kg Axle Load Wheel spacers may be required for some wheel/tire combinations Check which applies
Volkswagen Jetta	Years	2005	Submodels	GL, GL TDI, GLI, GLS, GLS TDI	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 25-45mm, up to 1060kg Axle Load Rear Lowered Height: 20-40mm, up to 1010kg Axle Load Wheel spacers may be required for some wheel/tire combinations Check which applies
Volkswagen Jetta	Years	2004	Submodels	GL, GLI, GLS, TDI	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 25-45mm, up to 1060kg Axle Load Rear Lowered Height: 20-40mm, up to 1010kg Axle Load Wheel spacers may be required for some wheel/tire combinations Check which applies
Volkswagen Jetta	Years	2003	Submodels	GL, GLI, GLS, GLX, TDI, Wolfsburg Edition	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 25-45mm, up to 1060kg Axle Load Rear Lowered Height: 20-40mm, up to 1010kg Axle Load Wheel spacers may be required for some wheel/tire combinations Check which applies
Volkswagen Jetta	Years	2002	Submodels	GL, GLI, GLS, GLX, TDI	Position	Front and rear	Drive / body / engine	All	Notes	—
Volkswagen Jetta	Years	2001	Submodels	GL, GLS, GLX, TDI, Wolfsburg Edition	Position	Front and rear	Drive / body / engine	All	Notes	—
Volkswagen Jetta	Years	2000	Submodels	GL, GLS, GLX, TDI	Position	Front and rear	Drive / body / engine	All	Notes	—
Volkswagen Jetta	Years	1999	Submodels	GL, GLS, GLX	Position	Front and rear	Drive / body / engine	All	Notes	Body code: A4 Front Lowered Height: 25-45mm, up to 1060kg Axle Load Rear Lowered Height: 20-40mm, up to 1010kg Axle Load Wheel spacers may be required for some wheel/tire combinations Check which applies
Volkswagen Jetta	Years	1999	Submodels	TDI	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 25-45mm, up to 1060kg Axle Load Rear Lowered Height: 20-40mm, up to 1010kg Axle Load Wheel spacers may be required for some wheel/tire combinations Check which applies

Specifications

As Bilstein publishes them.

Internal Design: Monotube
Finish: Dampers: Zinc Plated Front Yellow Rear/Springs: Blue
Front Main Spring Rate (lbs/in): 405
Front Main Spring Type: Linear
Rear Main Spring Rate (lbs/in): 509
Rear Main Spring Type: Linear
Front Tender Spring Rate (lbs/in): 114
Rear Tender Spring Rate (lbs/in): N/A
Spanner Wrench Set: E4-XS1-Z001A00

Installation & warranty

Bilstein installation instructions (PDF)

Limited 5-Year Warranty · Warranty terms (PDF)

100% genuine Bilstein, from authorized North American distribution.

BILSTEIN is a trademark of thyssenkrupp Bilstein GmbH. Eskimo is an independent retailer.
