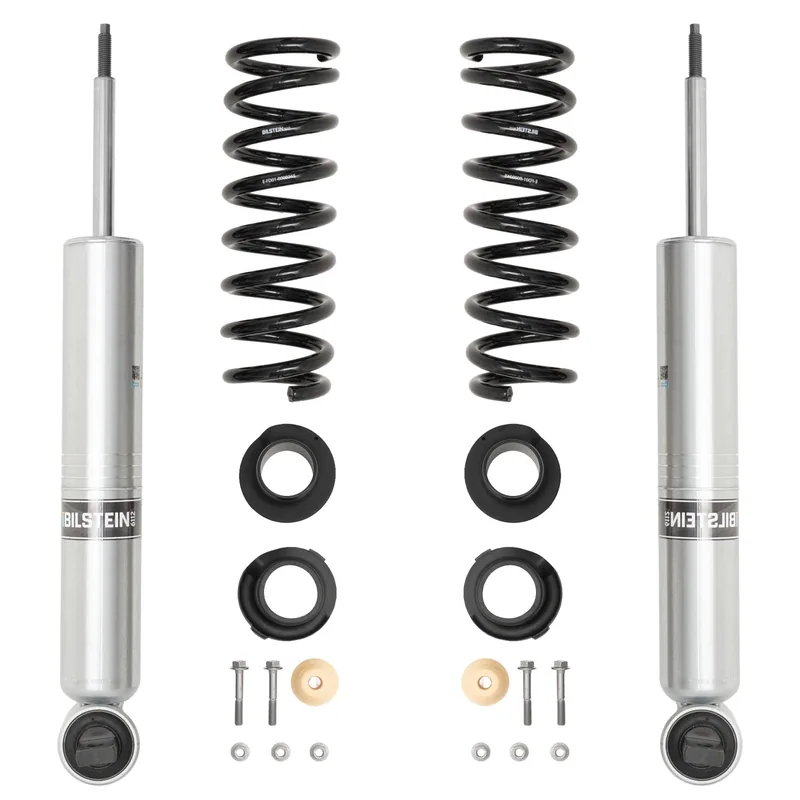

Bilstein 47-336261 B8 6112 Suspension Kit
Sold each · 2 per axle
Call (780) 473-2424
We reply to price requests within one business day.
Will it fit your vehicle?
- Country of origin
- United States
- Box
- Ships in Bilstein's own box (about 60 × 30 × 30 cm, 23.7 kg)
100% genuine Bilstein, from authorized North American distribution.
Fitment
9 vehicles, newest years first
| Vehicle | Years | Submodels | Position | Drive / body / engine | Notes |
|---|---|---|---|---|---|
| Ford Ranger | 2024–2026 | Lariat, XL, XLT | Front | L4 2.3L |
|
| Ford Ranger | 2024–2026 | Lariat, XLT | Front | 4WD · V6 2.7L |
|
Specifications
As Bilstein publishes them.
- Extended Length (in)
- 21.3
- Collapsed Length (in)
- 16.90
- Extended Length (mm)
- 541.1
- Collapsed Length (mm)
- 429.3
- Body Diameter (od)
- 2.65 in.
- Piston Diameter
- 60mm
- Shaft Diameter
- 18mm
- Body Design
- Snap Ring Grooved Body (Coilover)
- Internal Design
- Monotube
- Finish
- Dampers: Zinc Plated/Springs: Black
- Reservoir
- No
- Boot Included
- No
- Spring Seat Included
- Yes
- Stroke/travel Length (in)
- 4.40
- Front Main Spring Rate (lbs/in)
- 488
Installation & warranty
Bilstein installation instructions (PDF)
Limited Lifetime Warranty · Warranty terms (PDF)
100% genuine Bilstein, from authorized North American distribution.
