BestB14 coilovers

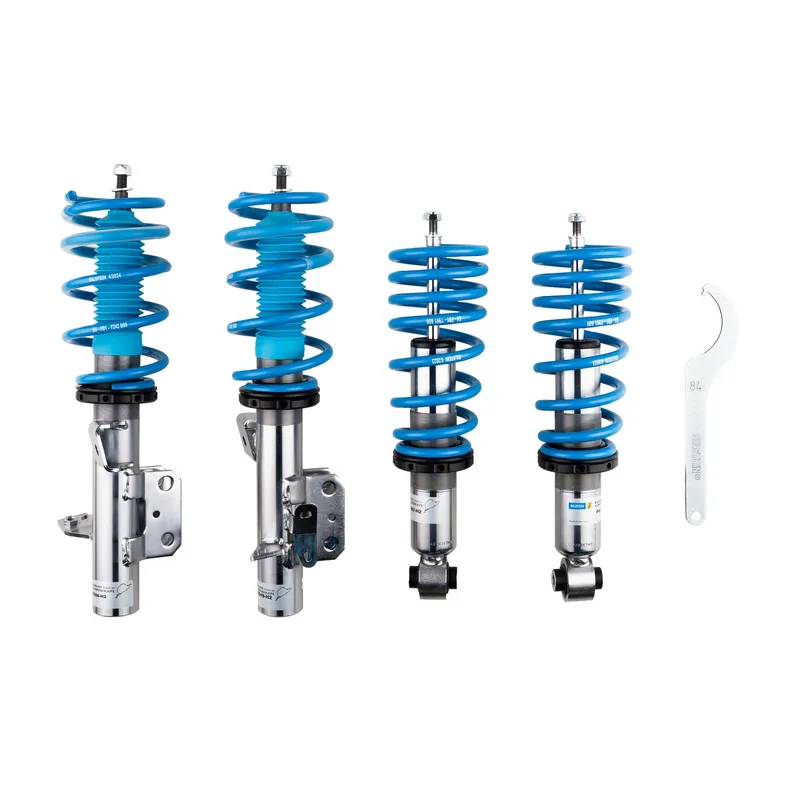

Bilstein 47-330733 B14 PSS Suspension Kit

Sold each

Call (780) 473-2424

We reply to price requests within one business day.

Will it fit your vehicle?

Want it installed?Eskimo Auto Repair installs Bilstein suspension in Edmonton.

Replaces Bilstein: 47-228337
Country of origin: Germany
Box: Ships in Bilstein's own box (about 58 × 29 × 29 cm, 21.5 kg)

100% genuine Bilstein, from authorized North American distribution.

Fitment

61 vehicles, newest years first

Vehicle	Years	Submodels	Position	Drive / body / engine	Notes
Scion FR-S	Years	2013–2016	Submodels	Base	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 10-30mm, up to 876kg Axle Load Rear Lowered Height: 10-30mm, up to 943kg Axle Load Check which applies
Subaru BRZ	Years	2026	Submodels	Limited, Series.Yellow, TS	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 10-30mm, up to 876kg Axle Load Rear Lowered Height: 10-30mm, up to 943kg Axle Load Check which applies
Subaru BRZ	Years	2024–2025	Submodels	Limited, Premium, TS	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 10-30mm, up to 876kg Axle Load Rear Lowered Height: 10-30mm, up to 943kg Axle Load Check which applies
Subaru BRZ	Years	2022–2023	Submodels	Limited, Premium	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 10-30mm, up to 876kg Axle Load Rear Lowered Height: 10-30mm, up to 943kg Axle Load Check which applies
Subaru BRZ	Years	2020	Submodels	Limited, TS	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 10-30mm, up to 876kg Axle Load Rear Lowered Height: 10-30mm, up to 943kg Axle Load Check which applies
Subaru BRZ	Years	2019	Submodels	Limited, Premium, Series.Gray	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 10-30mm, up to 876kg Axle Load Rear Lowered Height: 10-30mm, up to 943kg Axle Load Check which applies
Subaru BRZ	Years	2018	Submodels	Limited, Premium, TS	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 10-30mm, up to 876kg Axle Load Rear Lowered Height: 10-30mm, up to 943kg Axle Load Check which applies
Subaru BRZ	Years	2017	Submodels	Limited, Premium	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 10-30mm, up to 876kg Axle Load Rear Lowered Height: 10-30mm, up to 943kg Axle Load Check which applies
Subaru BRZ	Years	2016	Submodels	Limited, Premium, Series.HyperBlue	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 10-30mm, up to 876kg Axle Load Rear Lowered Height: 10-30mm, up to 943kg Axle Load Check which applies
Subaru BRZ	Years	2015	Submodels	Limited, Premium, Series.Blue	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 10-30mm, up to 876kg Axle Load Rear Lowered Height: 10-30mm, up to 943kg Axle Load Check which applies
Subaru BRZ	Years	2013–2014	Submodels	Limited, Premium	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 10-30mm, up to 876kg Axle Load Rear Lowered Height: 10-30mm, up to 943kg Axle Load Check which applies
Toyota 86	Years	2020	Submodels	Base, GT, Hakone Edition	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 10-30mm, up to 876kg Axle Load Rear Lowered Height: 10-30mm, up to 943kg Axle Load Check which applies
Toyota 86	Years	2019	Submodels	Base, GT, TRD Special Edition	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 10-30mm, up to 876kg Axle Load Rear Lowered Height: 10-30mm, up to 943kg Axle Load Check which applies
Toyota 86	Years	2018	Submodels	Base, GT	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 10-30mm, up to 876kg Axle Load Rear Lowered Height: 10-30mm, up to 943kg Axle Load Check which applies
Toyota 86	Years	2017	Submodels	Base, Special Edition	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 10-30mm, up to 876kg Axle Load Rear Lowered Height: 10-30mm, up to 943kg Axle Load Check which applies
Toyota GR86	Years	2026	Submodels	Base, Premium, Yuzu Edition	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 10-30mm, up to 876kg Axle Load Rear Lowered Height: 10-30mm, up to 943kg Axle Load Check which applies
Toyota GR86	Years	2025	Submodels	Base, Hakone Edition, Premium	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 10-30mm, up to 876kg Axle Load Rear Lowered Height: 10-30mm, up to 943kg Axle Load Check which applies
Toyota GR86	Years	2024	Submodels	Base, Premium, TRUENO Edition	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 10-30mm, up to 876kg Axle Load Rear Lowered Height: 10-30mm, up to 943kg Axle Load Check which applies
Toyota GR86	Years	2023	Submodels	10th Anniversary Special Edition, Base, Premium	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 10-30mm, up to 876kg Axle Load Rear Lowered Height: 10-30mm, up to 943kg Axle Load Check which applies
Toyota GR86	Years	2022	Submodels	Base, Premium	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 10-30mm, up to 876kg Axle Load Rear Lowered Height: 10-30mm, up to 943kg Axle Load Check which applies

Specifications

As Bilstein publishes them.

Internal Design: Monotube
Finish: Dampers: Zinc/Springs: Blue
Front Main Spring Rate (lbs/in): 257
Front Main Spring Type: Progressive
Rear Main Spring Rate (lbs/in): 378
Rear Main Spring Type: Progressive
Front Tender Spring Rate (lbs/in): N/A
Rear Tender Spring Rate (lbs/in): N/A
Spanner Wrench Set: E4-XS1-Z001A00

Installation & warranty

Bilstein installation instructions (PDF)

Limited 5-Year Warranty · Warranty terms (PDF)

100% genuine Bilstein, from authorized North American distribution.
