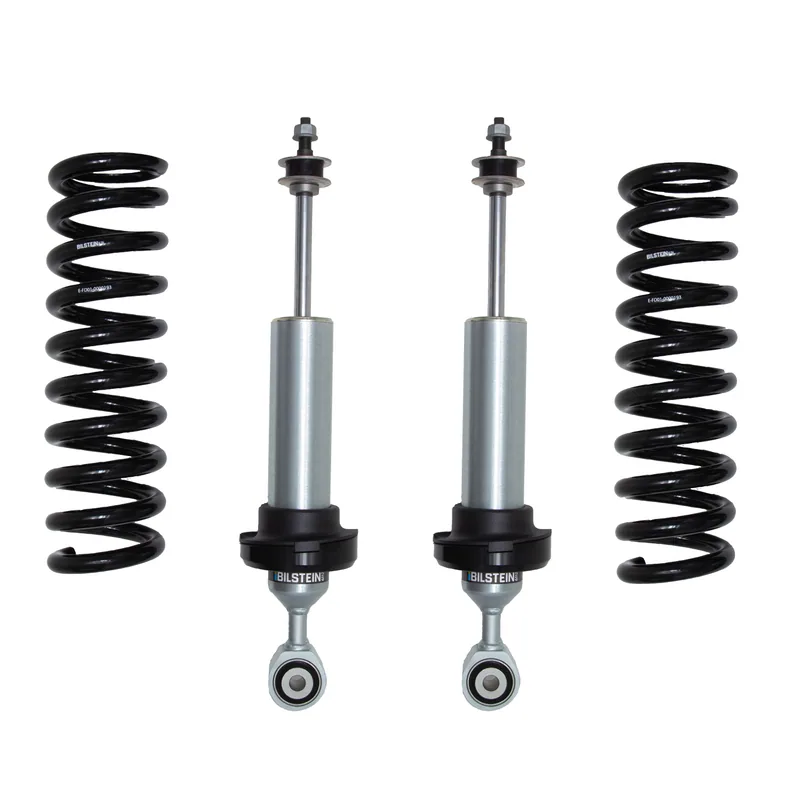

Bilstein 47-329232 B8 6112 Suspension Kit
BestB8 6112

Bilstein 47-329232 B8 6112 Suspension Kit

Sold each · 2 per axle

Call (780) 473-2424

We reply to price requests within one business day.

Will it fit your vehicle?

Want it installed?Eskimo Auto Repair installs Bilstein suspension in Edmonton.
Country of origin
United States
Box
Ships in Bilstein's own box (about 64 × 32 × 32 cm, 28.4 kg)

100% genuine Bilstein, from authorized North American distribution.

Fitment

48 vehicles, newest years first

Toyota Sequoia2025–20261794 Edition, Capstone, Limited, Platinum, SR5FrontAll
  • Provides 2.1-3.1" Front Lift
  • Provides 2.1-3.1" Front Lift
  • Without Adaptive Variable Suspension (AVS)
  • Check which applies
Toyota Sequoia2023–2024Capstone, Limited, Platinum, SR5FrontAll
  • Provides 2.1-3.1" Front Lift
  • Provides 2.1-3.1" Front Lift
  • Without Adaptive Variable Suspension (AVS)
  • Check which applies
Toyota Tundra2022–20261794 Edition, PlatinumFront4WD
  • Provides 0-2.2" Front Lift
  • Provides 0-2.2" Front Lift without TRD Sport package
  • Provides 1-3" Front Lift with TRD Sport package
  • Provides 0-2.2" Front Lift
  • Without Adaptive Variable Suspension (AVS)
  • Check which applies
Toyota Tundra2022–2026Capstone, Limited, SR, SR5Front4WD · Crew Cab Pickup
  • Provides 0-2.2" Front Lift
  • Provides 0-2.2" Front Lift without TRD Sport package
  • Provides 1-3" Front Lift with TRD Sport package
  • Provides 0-2.2" Front Lift
  • Without Adaptive Variable Suspension (AVS)
  • Check which applies

Specifications

As Bilstein publishes them.

Extended Length (in)
20.14
Collapsed Length (in)
15.71
Extended Length (mm)
511.5
Collapsed Length (mm)
399.0
Body Diameter (od)
2.65 in.
Piston Diameter
60mm
Shaft Diameter
18mm
Body Design
Snap Ring Grooved Body (Coilover)
Internal Design
Monotube
Finish
Dampers: Zinc Plated/Springs: Black
Reservoir
No
Adjustable Damping
Non-Adjustable
Boot Included
No
Spring Seat Included
Yes
Stroke/travel Length (in)
4.43
Front Main Spring Rate (lbs/in)
742

Installation & warranty

Bilstein installation instructions (PDF)
Limited Lifetime Warranty · Warranty terms (PDF)

100% genuine Bilstein, from authorized North American distribution.
