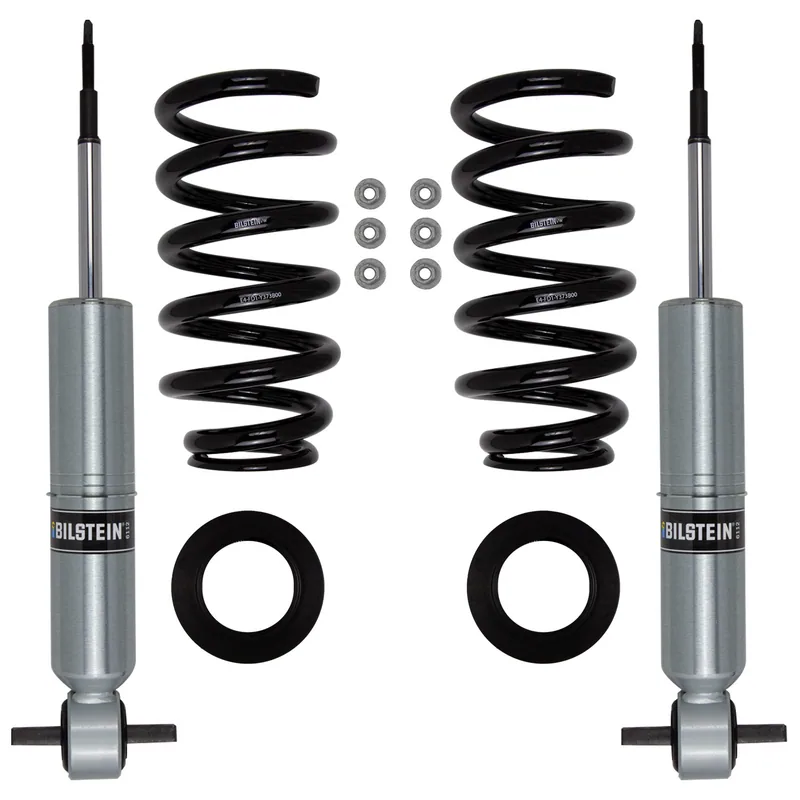

Bilstein 47-325753 B8 6112 Suspension Kit

Sold each · 2 per axle

Call (780) 473-2424

We reply to price requests within one business day.

Will it fit your vehicle?

Want it installed?Eskimo Auto Repair installs Bilstein suspension in Edmonton.

Country of origin: United States
Box: Ships in Bilstein's own box (about 62 × 31 × 31 cm, 25.8 kg)

100% genuine Bilstein, from authorized North American distribution.

Fitment

48 vehicles, newest years first

Vehicle	Years	Submodels	Position	Drive / body / engine	Notes
Chevrolet Silverado 1500	Years	2018	Submodels	Custom, High Country, LTZ	Position	Front	Drive / body / engine	4WD · V8 5.3L	Notes	Provides 1.85-2.75" Front Lift Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304676 recommended Provides 1.85-2.75" Front Lift Without Magnetic Ride Control Suspension Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304676 recommended Check which applies
Chevrolet Silverado 1500	Years	2018	Submodels	High Country, LTZ	Position	Front	Drive / body / engine	4WD · V8 6.2L	Notes	Provides 1.85-2.75" Front Lift Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304676 recommended Provides 1.85-2.75" Front Lift Without Magnetic Ride Control Suspension Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304676 recommended Check which applies
Chevrolet Silverado 1500	Years	2018	Submodels	LS, LT, WT	Position	Front	Drive / body / engine	4WD · Crew Cab Pickup · V8 5.3L	Notes	Provides 1.85-2.75" Front Lift Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304676 recommended Provides 1.85-2.75" Front Lift Without Magnetic Ride Control Suspension Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304676 recommended Check which applies
Chevrolet Silverado 1500	Years	2018	Submodels	LS, LT, WT	Position	Front	Drive / body / engine	4WD · Extended Cab Pickup · V8 5.3L	Notes	Provides 1.85-2.75" Front Lift Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304676 recommended Provides 1.85-2.75" Front Lift Without Magnetic Ride Control Suspension Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304676 recommended Check which applies
Chevrolet Silverado 1500	Years	2017	Submodels	Custom, High Country, LTZ	Position	Front	Drive / body / engine	4WD · V8 5.3L	Notes	Provides 1.85-2.75" Front Lift Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304676 recommended Check which applies
Chevrolet Silverado 1500	Years	2017	Submodels	High Country, LTZ	Position	Front	Drive / body / engine	4WD · V8 6.2L	Notes	Provides 1.85-2.75" Front Lift Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304676 recommended Check which applies
Chevrolet Silverado 1500	Years	2017	Submodels	LS, LT, WT	Position	Front	Drive / body / engine	4WD · Crew Cab Pickup · V8 5.3L	Notes	Provides 1.85-2.75" Front Lift Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304676 recommended Check which applies
Chevrolet Silverado 1500	Years	2017	Submodels	LS, LT, WT	Position	Front	Drive / body / engine	4WD · Extended Cab Pickup · V8 5.3L	Notes	Provides 1.85-2.75" Front Lift Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304676 recommended Check which applies
Chevrolet Silverado 1500	Years	2016	Submodels	Custom, High Country, LTZ	Position	Front	Drive / body / engine	4WD · V8 5.3L	Notes	Provides 1.85-2.75" Front Lift Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304669 or 51-304676 recommended depending on OE arm style - see catalog for details Check which applies
Chevrolet Silverado 1500	Years	2015–2016	Submodels	LS, LT, WT	Position	Front	Drive / body / engine	4WD · Crew Cab Pickup · V8 5.3L	Notes	Provides 1.85-2.75" Front Lift Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304669 or 51-304676 recommended depending on OE arm style - see catalog for details Check which applies
Chevrolet Silverado 1500	Years	2015–2016	Submodels	LS, LT, WT	Position	Front	Drive / body / engine	4WD · Extended Cab Pickup · V8 5.3L	Notes	Provides 1.85-2.75" Front Lift Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304669 or 51-304676 recommended depending on OE arm style - see catalog for details Check which applies
Chevrolet Silverado 1500	Years	2014–2016	Submodels	High Country, LTZ	Position	Front	Drive / body / engine	4WD · V8 6.2L	Notes	Provides 1.85-2.75" Front Lift Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304669 or 51-304676 recommended depending on OE arm style - see catalog for details Check which applies
Chevrolet Silverado 1500	Years	2014–2015	Submodels	High Country, LTZ	Position	Front	Drive / body / engine	4WD · V8 5.3L	Notes	Provides 1.85-2.75" Front Lift Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304669 or 51-304676 recommended depending on OE arm style - see catalog for details Check which applies
Chevrolet Silverado 1500	Years	2014	Submodels	LT, WT	Position	Front	Drive / body / engine	4WD · Crew Cab Pickup · V8 5.3L	Notes	Provides 1.85-2.75" Front Lift Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304669 or 51-304676 recommended depending on OE arm style - see catalog for details Check which applies
Chevrolet Silverado 1500	Years	2014	Submodels	LT, WT	Position	Front	Drive / body / engine	4WD · Extended Cab Pickup · V8 5.3L	Notes	Provides 1.85-2.75" Front Lift Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304669 or 51-304676 recommended depending on OE arm style - see catalog for details Check which applies
Chevrolet Silverado 1500 LD	Years	2019	Submodels	Custom, LT, WT	Position	Front	Drive / body / engine	4WD · V8 5.3L	Notes	Provides 1.85-2.75" Front Lift Without Magnetic Ride Control Suspension For Silverado 1500 LD only – same as 2014-2018 body style. Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304676 recommended Check which applies
GMC Sierra 1500	Years	2017–2018	Submodels	SLT	Position	Front	Drive / body / engine	4WD · V8 5.3L	Notes	Provides 1.85-2.75" Front Lift Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304676 recommended Check which applies
GMC Sierra 1500	Years	2017–2018	Submodels	SLT	Position	Front	Drive / body / engine	4WD · V8 6.2L	Notes	Provides 1.85-2.75" Front Lift Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304676 recommended Check which applies
GMC Sierra 1500	Years	2017–2018	Submodels	Base, SLE	Position	Front	Drive / body / engine	4WD · Crew Cab Pickup · V8 5.3L	Notes	Provides 1.85-2.75" Front Lift Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304676 recommended Check which applies
GMC Sierra 1500	Years	2017–2018	Submodels	Base, SLE	Position	Front	Drive / body / engine	4WD · Extended Cab Pickup · V8 5.3L	Notes	Provides 1.85-2.75" Front Lift Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304676 recommended Check which applies
GMC Sierra 1500	Years	2015–2016	Submodels	SLT	Position	Front	Drive / body / engine	4WD · V8 5.3L	Notes	Provides 1.85-2.75" Front Lift Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304669 or 51-304676 recommended depending on OE arm style - see catalog for details Check which applies
GMC Sierra 1500	Years	2015–2016	Submodels	SLT	Position	Front	Drive / body / engine	4WD · V8 6.2L	Notes	Provides 1.85-2.75" Front Lift Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304669 or 51-304676 recommended depending on OE arm style - see catalog for details Check which applies
GMC Sierra 1500	Years	2014–2016	Submodels	Base, SLE	Position	Front	Drive / body / engine	4WD · Crew Cab Pickup · V8 5.3L	Notes	Provides 1.85-2.75" Front Lift Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304669 or 51-304676 recommended depending on OE arm style - see catalog for details Check which applies
GMC Sierra 1500	Years	2014–2016	Submodels	Base, SLE	Position	Front	Drive / body / engine	4WD · Extended Cab Pickup · V8 5.3L	Notes	Provides 1.85-2.75" Front Lift Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304669 or 51-304676 recommended depending on OE arm style - see catalog for details Check which applies
GMC Sierra 1500	Years	2014	Submodels	Denali, SLT	Position	Front	Drive / body / engine	4WD · V8 5.3L	Notes	Provides 1.85-2.75" Front Lift Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304669 or 51-304676 recommended depending on OE arm style - see catalog for details Check which applies
GMC Sierra 1500	Years	2014	Submodels	Denali, SLT	Position	Front	Drive / body / engine	4WD · V8 6.2L	Notes	Provides 1.85-2.75" Front Lift Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304669 or 51-304676 recommended depending on OE arm style - see catalog for details Check which applies
GMC Sierra 1500 Limited	Years	2019	Submodels	Base	Position	Front	Drive / body / engine	V8 5.3L	Notes	Provides 1.85-2.75" Front Lift Without Magnetic Ride Control Suspension For Sierra 1500 Limited only – same as 2014-2018 body style Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304676 recommended Check which applies
GMC Sierra 1500 Limited	Years	2019	Submodels	SLE	Position	Front	Drive / body / engine	4WD · V8 5.3L	Notes	Provides 1.85-2.75" Front Lift Without Magnetic Ride Control Suspension For Sierra 1500 Limited only – same as 2014-2018 body style Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304676 recommended Check which applies

Specifications

As Bilstein publishes them.

Extended Length (in): 19.65
Collapsed Length (in): 14.96
Extended Length (mm): 499.1
Collapsed Length (mm): 380.0
Body Diameter (od): 2.65 in.
Piston Diameter: 60mm
Shaft Diameter: 18mm
Body Design: Snap Ring Grooved Body (Coilover)
Internal Design: Monotube
Finish: Dampers: Zinc Plated/Springs: Black
Reservoir: No
Adjustable Damping: Non-Adjustable
Boot Included: No
Spring Seat Included: Yes
Stroke/travel Length (in): 4.69
Replacement Mounting Kit: B4-KT1-Z317A00
Front Main Spring Rate (lbs/in): 750
Aftermarket Upper Arms Required: Yes

Installation & warranty

Bilstein installation instructions (PDF)

Limited Lifetime Warranty · Warranty terms (PDF)
