BestB8 6112

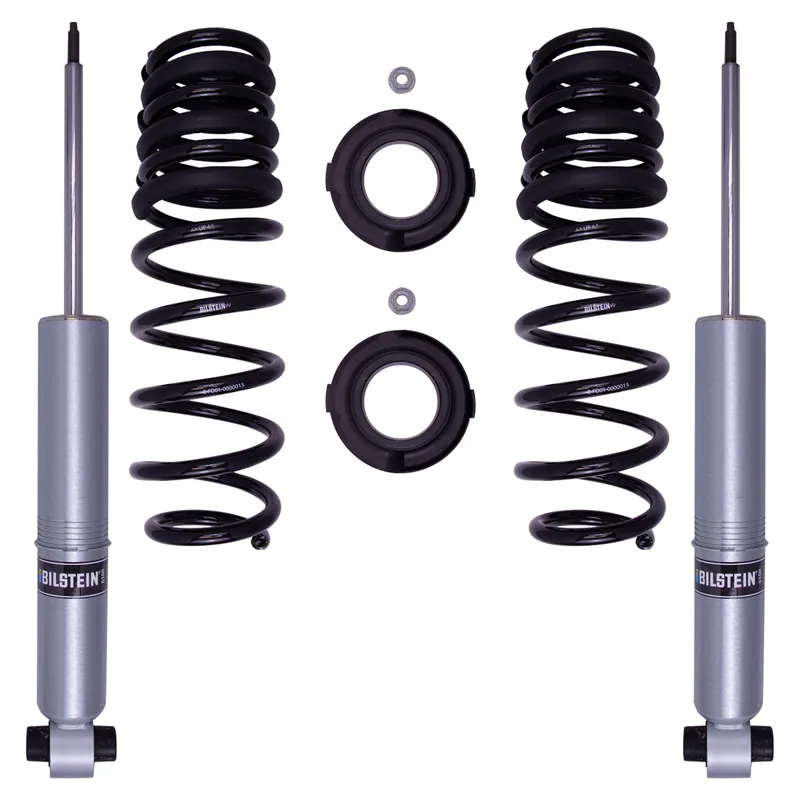

Bilstein 47-314009 B8 6112 Suspension Kit

Sold each · 2 per axle

Call (780) 473-2424

We reply to price requests within one business day.

Will it fit your vehicle?

Want it installed?Eskimo Auto Repair installs Bilstein suspension in Edmonton.

Country of origin: United States
Box: Ships in Bilstein's own box (about 60 × 30 × 30 cm, 25.5 kg)

100% genuine Bilstein, from authorized North American distribution.

Fitment

38 vehicles, newest years first

Vehicle	Years	Submodels	Position	Drive / body / engine	Notes
Ford Bronco	Years	2025–2026	Submodels	Badlands, Base, Big Bend, Heritage Edition, Outer Banks	Position	Rear	Drive / body / engine	All	Notes	Doors: 4 Door Provides 0.3-1.4" Rear Lift Provides 1.8-2.8" Rear Lift Without Sasquatch Package 0.3-1.4" Rear Lift With Sasquatch Package Without HOSS 3.0 Package Provides 1.2-2.3" Rear Lift Without Sasquatch Package 0.3-1.4" Rear Lift With Sasquatch Package Check which applies
Ford Bronco	Years	2024	Submodels	Badlands, Big Bend, Black Diamond, Everglades, Heritage Edition, Heritage Limited Edition, Outer Banks	Position	Rear	Drive / body / engine	All	Notes	Doors: 4 Door Provides 0.3-1.4" Rear Lift Provides 1.2-2.3" Rear Lift Without Sasquatch Package 0.3-1.4" Rear Lift With Sasquatch Package Provides 1.8-2.8" Rear Lift Without Sasquatch Package 0.3-1.4" Rear Lift With Sasquatch Package Check which applies
Ford Bronco	Years	2023	Submodels	Badlands, Base, Big Bend, Black Diamond, Everglades, Heritage Edition, Heritage Limited Edition, Outer Banks	Position	Rear	Drive / body / engine	All	Notes	Doors: 4 Door Provides 0.3-1.4" Rear Lift Provides 1.2-2.3" Rear Lift Without Sasquatch Package 0.3-1.4" Rear Lift With Sasquatch Package Provides 1.8-2.8" Rear Lift Without Sasquatch Package 0.3-1.4" Rear Lift With Sasquatch Package Check which applies
Ford Bronco	Years	2022	Submodels	Badlands, Base, Big Bend, Black Diamond, Outer Banks, Wildtrak	Position	Rear	Drive / body / engine	All	Notes	Doors: 4 Door Provides 0.3-1.4" Rear Lift Provides 1.2-2.3" Rear Lift Without Sasquatch Package 0.3-1.4" Rear Lift With Sasquatch Package Provides 1.8-2.8" Rear Lift Without Sasquatch Package 0.3-1.4" Rear Lift With Sasquatch Package Check which applies
Ford Bronco	Years	2021	Submodels	Badlands, Base, Big Bend, Black Diamond, First Edition, Outer Banks, Wildtrak	Position	Rear	Drive / body / engine	All	Notes	Doors: 4 Door Provides 0.3-1.4" Rear Lift Provides 1.2-2.3" Rear Lift Without Sasquatch Package 0.3-1.4" Rear Lift With Sasquatch Package Provides 1.8-2.8" Rear Lift Without Sasquatch Package 0.3-1.4" Rear Lift With Sasquatch Package Check which applies

Specifications

As Bilstein publishes them.

Extended Length (in): 25.56
Collapsed Length (in): 17.11
Extended Length (mm): 649.3
Collapsed Length (mm): 434.6
Body Diameter (od): 2.65 in.
Piston Diameter: 60mm
Shaft Diameter: 18mm
Body Design: Snap Ring Grooved Body (Coilover)
Internal Design: Monotube
Finish: Dampers: Zinc Plated/Springs: Black
Reservoir: No
Adjustable Damping: Non-Adjustable
Boot Included: No
Spring Seat Included: Yes
Stroke/travel Length (in): 8.45
Replacement Mounting Kit: B4-KT1-Z472A00
Rear Main Spring Rate (lbs/in): 288

Installation & warranty

Bilstein installation instructions (PDF)

Limited Lifetime Warranty · Warranty terms (PDF)

100% genuine Bilstein, from authorized North American distribution.
