BestB8 6112

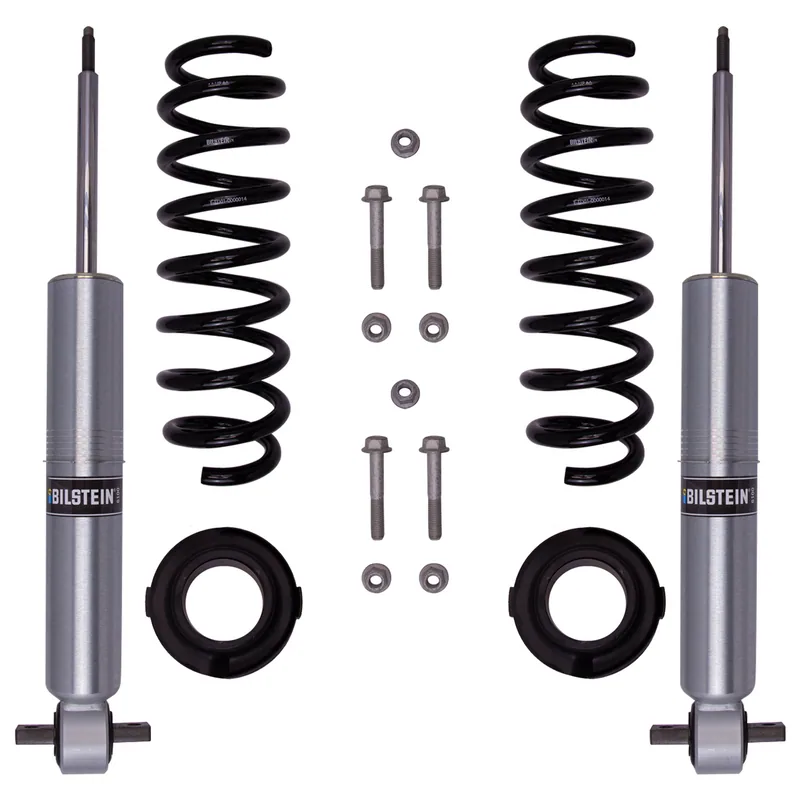

Bilstein 47-313996 B8 6112 Suspension Kit

Sold each · 2 per axle

Call (780) 473-2424

We reply to price requests within one business day.

Will it fit your vehicle?

Want it installed?Eskimo Auto Repair installs Bilstein suspension in Edmonton.

Country of origin: United States
Box: Ships in Bilstein's own box (about 60 × 30 × 30 cm, 24 kg)

100% genuine Bilstein, from authorized North American distribution.

Fitment

38 vehicles, newest years first

Vehicle	Years	Submodels	Position	Drive / body / engine	Notes
Ford Bronco	Years	2025–2026	Submodels	Badlands, Base, Big Bend, Heritage Edition, Outer Banks	Position	Front	Drive / body / engine	All	Notes	Doors: 4 Door Provides 0-1.7" Front Lift Provides 1.9-3.4" Front Lift Without Sasquatch Package 0-1.7" Front Lift With Sasquatch Package Aftermarket upper control arms recommended for lift heights greater than 2.5" Without HOSS 3.0 Package Provides 1.4-3.0" Front Lift Without Sasquatch Package 0-1.7" Front Lift With Sasquatch Package Aftermarket upper control arms recommended for lift heights greater than 2.5" Check which applies
Ford Bronco	Years	2024	Submodels	Badlands, Big Bend, Black Diamond, Everglades, Heritage Edition, Heritage Limited Edition, Outer Banks	Position	Front	Drive / body / engine	All	Notes	Doors: 4 Door Provides 0-1.7" Front Lift Provides 1.4-3.0" Front Lift Without Sasquatch Package 0-1.7" Front Lift With Sasquatch Package Aftermarket upper control arms recommended for lift heights greater than 2.5" Provides 1.9-3.4" Front Lift Without Sasquatch Package 0-1.7" Front Lift With Sasquatch Package Aftermarket upper control arms recommended for lift heights greater than 2.5" Check which applies
Ford Bronco	Years	2023	Submodels	Badlands, Base, Big Bend, Black Diamond, Everglades, Heritage Edition, Heritage Limited Edition, Outer Banks	Position	Front	Drive / body / engine	All	Notes	Doors: 4 Door Provides 0-1.7" Front Lift Provides 1.4-3.0" Front Lift Without Sasquatch Package 0-1.7" Front Lift With Sasquatch Package Aftermarket upper control arms recommended for lift heights greater than 2.5" Provides 1.9-3.4" Front Lift Without Sasquatch Package 0-1.7" Front Lift With Sasquatch Package Aftermarket upper control arms recommended for lift heights greater than 2.5" Check which applies
Ford Bronco	Years	2022	Submodels	Badlands, Base, Big Bend, Black Diamond, Outer Banks, Wildtrak	Position	Front	Drive / body / engine	All	Notes	Doors: 4 Door Provides 0-1.7" Front Lift Provides 1.4-3.0" Front Lift Without Sasquatch Package 0-1.7" Front Lift With Sasquatch Package Aftermarket upper control arms recommended for lift heights greater than 2.5" Provides 1.9-3.4" Front Lift Without Sasquatch Package 0-1.7" Front Lift With Sasquatch Package Aftermarket upper control arms recommended for lift heights greater than 2.5" Check which applies
Ford Bronco	Years	2021	Submodels	Badlands, Base, Big Bend, Black Diamond, First Edition, Outer Banks, Wildtrak	Position	Front	Drive / body / engine	All	Notes	Doors: 4 Door Provides 0-1.7" Front Lift Provides 1.4-3.0" Front Lift Without Sasquatch Package 0-1.7" Front Lift With Sasquatch Package Aftermarket upper control arms recommended for lift heights greater than 2.5" Provides 1.9-3.4" Front Lift Without Sasquatch Package 0-1.7" Front Lift With Sasquatch Package Aftermarket upper control arms recommended for lift heights greater than 2.5" Check which applies

Specifications

As Bilstein publishes them.

Extended Length (in): 22.80
Collapsed Length (in): 16.62
Extended Length (mm): 579.2
Collapsed Length (mm): 422.2
Body Diameter (od): 2.65 in.
Piston Diameter: 60mm
Shaft Diameter: 18mm
Body Design: Snap Ring Grooved Body (Coilover)
Internal Design: Monotube
Finish: Dampers: Zinc Plated/Springs: Black
Reservoir: No
Adjustable Damping: Non-Adjustable
Boot Included: No
Spring Seat Included: Yes
Stroke/travel Length (in): 6.18
Replacement Mounting Kit: B4-KT1-Z471A00
Front Main Spring Rate (lbs/in): 374
Aftermarket Upper Arms Required: Yes

Installation & warranty

Bilstein installation instructions (PDF)

Limited Lifetime Warranty · Warranty terms (PDF)

100% genuine Bilstein, from authorized North American distribution.

BILSTEIN is a trademark of thyssenkrupp Bilstein GmbH. Eskimo is an independent retailer.
