BestB8 6112

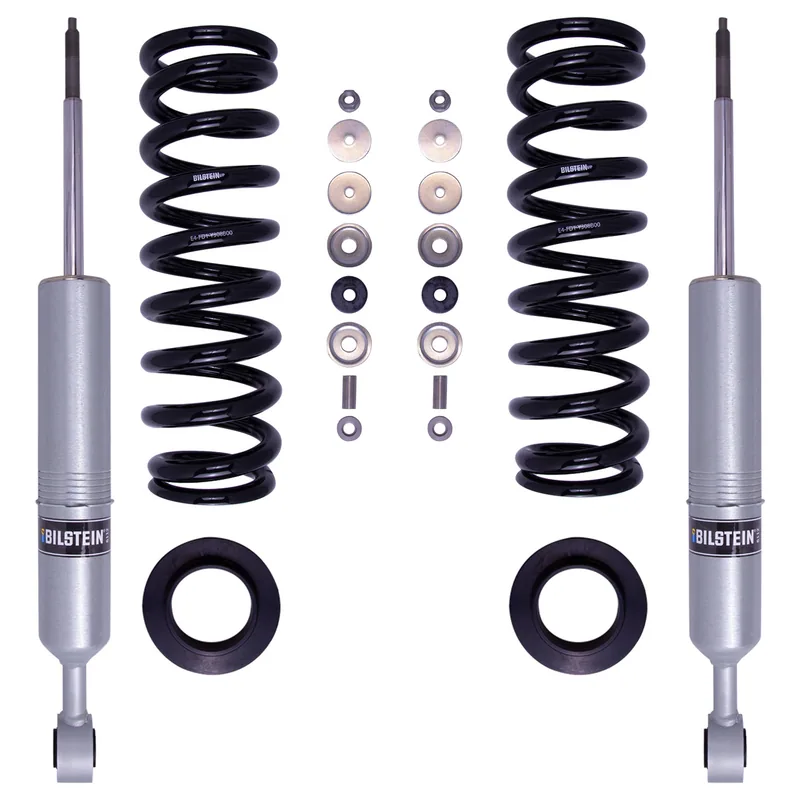

Bilstein 47-311145 B8 6112 Suspension Kit
Sold each · 2 per axle
Call (780) 473-2424
We reply to price requests within one business day.
Will it fit your vehicle?
- Replaces Bilstein
- 47-273146
- Country of origin
- United States
- Box
- Ships in Bilstein's own box (about 58 × 29 × 29 cm, 22.2 kg)
100% genuine Bilstein, from authorized North American distribution.
Fitment
15 vehicles, newest years first
| Vehicle | Years | Submodels | Position | Drive / body / engine | Notes |
|---|---|---|---|---|---|
| Toyota Land Cruiser | 2020–2021 | Base, Heritage Edition | Front | All |
|
| Toyota Land Cruiser | 2013–2019 | Base | Front | All |
|
| Toyota Land Cruiser | 2008–2011 | Base | Front | All |
|
Specifications
As Bilstein publishes them.
- Extended Length (in)
- 23.78
- Collapsed Length (in)
- 17.11
- Extended Length (mm)
- 604.0
- Collapsed Length (mm)
- 434.5
- Body Diameter (od)
- 2.65 in.
- Piston Diameter
- 60mm
- Shaft Diameter
- 18mm
- Body Design
- Snap Ring Grooved Body (Coilover)
- Internal Design
- Monotube
- Finish
- Dampers: Zinc Plated/Springs: Black
- Reservoir
- No
- Boot Included
- No
- Spring Seat Included
- Yes
- Stroke/travel Length (in)
- 6.67
- Front Main Spring Rate (lbs/in)
- 650
Installation & warranty
Bilstein installation instructions (PDF)
Limited Lifetime Warranty · Warranty terms (PDF)
100% genuine Bilstein, from authorized North American distribution.
BILSTEIN is a trademark of thyssenkrupp Bilstein GmbH. Eskimo is an independent retailer.
