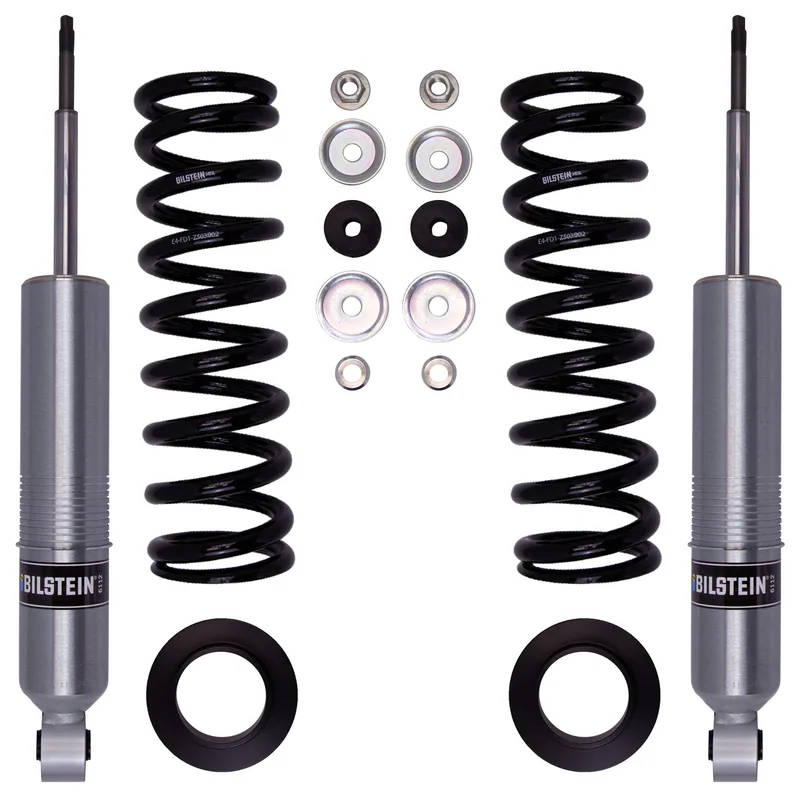

Bilstein 47-310896 B8 6112 Suspension Kit

Sold each · 2 per axle

Call (780) 473-2424

We reply to price requests within one business day.

Will it fit your vehicle?

Want it installed?Eskimo Auto Repair installs Bilstein suspension in Edmonton.

Replaces Bilstein: 47-267558
Country of origin: United States
Box: Ships in Bilstein's own box (about 58 × 29 × 29 cm, 21.3 kg)

100% genuine Bilstein, from authorized North American distribution.

Fitment

24 vehicles, newest years first

Vehicle	Years	Submodels	Position	Drive / body / engine	Notes
Toyota Tacoma	Years	2001–2004	Submodels	Pre Runner	Position	Front	Drive / body / engine	Crew Cab Pickup	Notes	Provides 0-1.8" Front Lift Provides 0-1.9" Front Lift Provides 0-2.4" Front Lift Provides 0-2.8" Front Lift Provides 0.8-3.1" Front Lift Check which applies
Toyota Tacoma	Years	2001–2004	Submodels	Pre Runner	Position	Front	Drive / body / engine	Extended Cab Pickup	Notes	Provides 0-1.8" Front Lift Provides 0-1.9" Front Lift Provides 0-2.4" Front Lift Provides 0-2.8" Front Lift Provides 0.8-3.1" Front Lift Check which applies
Toyota Tacoma	Years	2001–2004	Submodels	Base	Position	Front	Drive / body / engine	4WD · Crew Cab Pickup · V6 3.4L	Notes	Provides 0-1.8" Front Lift Provides 0-1.9" Front Lift Provides 0-2.4" Front Lift Provides 0-2.8" Front Lift Provides 0.8-3.1" Front Lift Check which applies
Toyota Tacoma	Years	2001–2004	Submodels	Base	Position	Front	Drive / body / engine	4WD · Extended Cab Pickup · V6 3.4L	Notes	Provides 0-1.8" Front Lift Provides 0-1.9" Front Lift Provides 0-2.4" Front Lift Provides 0-2.8" Front Lift Provides 0.8-3.1" Front Lift Check which applies
Toyota Tacoma	Years	2001–2004	Submodels	Base	Position	Front	Drive / body / engine	4WD · Standard Cab Pickup · L4 2.7L	Notes	Provides 0-1.8" Front Lift Provides 0-1.9" Front Lift Provides 0-2.4" Front Lift Provides 0-2.8" Front Lift Provides 0.8-3.1" Front Lift Check which applies
Toyota Tacoma	Years	1998–2000	Submodels	Limited	Position	Front	Drive / body / engine	All	Notes	Provides 0-1.8" Front Lift Provides 0-1.9" Front Lift Provides 0-2.4" Front Lift Check which applies
Toyota Tacoma	Years	1998–2000	Submodels	Pre Runner	Position	Front	Drive / body / engine	Extended Cab Pickup	Notes	Provides 0-1.8" Front Lift Provides 0-1.9" Front Lift Provides 0-2.4" Front Lift Check which applies
Toyota Tacoma	Years	1998–2000	Submodels	Base, SR5	Position	Front	Drive / body / engine	4WD · Extended Cab Pickup · V6 3.4L	Notes	Provides 0-1.8" Front Lift Provides 0-1.9" Front Lift Provides 0-2.4" Front Lift Check which applies
Toyota Tacoma	Years	1998–2000	Submodels	Base	Position	Front	Drive / body / engine	4WD · Standard Cab Pickup · L4 2.7L	Notes	Provides 0-1.8" Front Lift Provides 0-1.9" Front Lift Provides 0-2.4" Front Lift Check which applies
Toyota Tacoma	Years	1996–1997	Submodels	SR5	Position	Front	Drive / body / engine	4WD · Extended Cab Pickup	Notes	Provides 0-1.9" Front Lift Provides 0-2.4" Front Lift Check which applies
Toyota Tacoma	Years	1996–1997	Submodels	Base	Position	Front	Drive / body / engine	4WD · Extended Cab Pickup · V6 3.4L	Notes	Provides 0-1.9" Front Lift Provides 0-2.4" Front Lift Check which applies
Toyota Tacoma	Years	1996–1997	Submodels	Base	Position	Front	Drive / body / engine	4WD · Standard Cab Pickup · L4 2.7L	Notes	Provides 0-1.9" Front Lift Provides 0-2.4" Front Lift Check which applies

Specifications

As Bilstein publishes them.

Extended Length (in): 18.54
Collapsed Length (in): 13.56
Extended Length (mm): 471.0
Collapsed Length (mm): 344.5
Body Diameter (od): 2.65 in.
Piston Diameter: 60mm
Shaft Diameter: 18mm
Body Design: Snap Ring Grooved Body (Coilover)
Internal Design: Monotube
Finish: Dampers: Zinc Plated/Springs: Black
Reservoir: No
Boot Included: No
Spring Seat Included: Yes
Stroke/travel Length (in): 4.98
Front Main Spring Rate (lbs/in): 450

Installation & warranty

Bilstein installation instructions (PDF)

Limited Lifetime Warranty · Warranty terms (PDF)
