Bilstein 47-310872 B8 6112 Suspension Kit
BestB8 6112

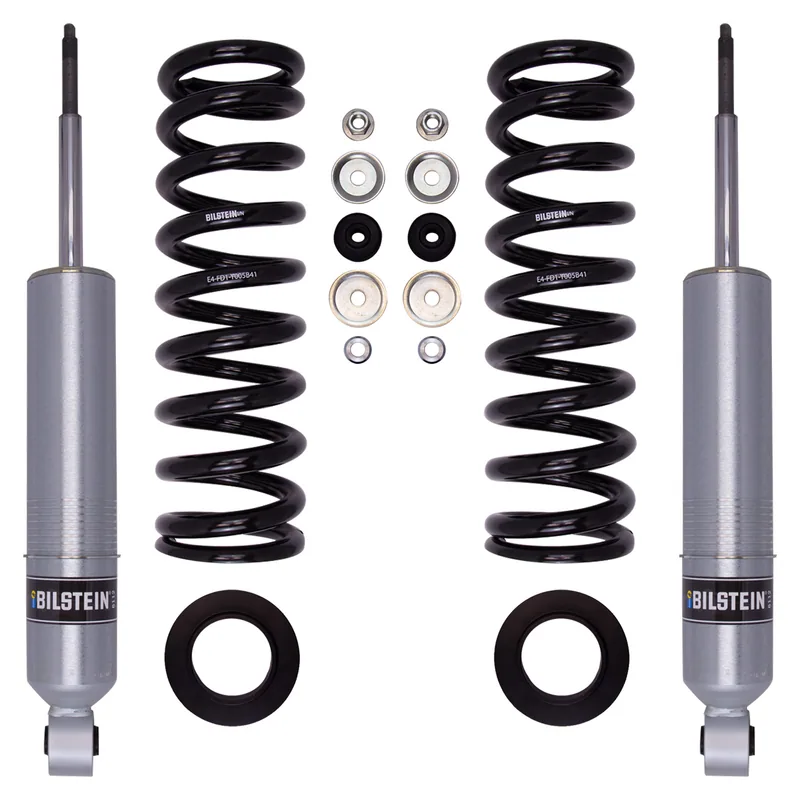

Bilstein 47-310872 B8 6112 Suspension Kit

Sold each · 2 per axle

Call (780) 473-2424

We reply to price requests within one business day.

Will it fit your vehicle?

Want it installed?Eskimo Auto Repair installs Bilstein suspension in Edmonton.
Replaces Bilstein
47-258624
Country of origin
United States
Box
Ships in Bilstein's own box (about 56 × 28 × 28 cm, 18.5 kg)

100% genuine Bilstein, from authorized North American distribution.

Fitment

15 vehicles, newest years first

Toyota 4Runner2002Limited, SR5Front4WD · V6 3.4L
  • Provides 0-2.3" Front Lift
  • Provides 1-2.6" Front Lift
  • Check which applies
Toyota 4Runner2002Limited, SR5FrontRWD · V6 3.4L
  • Provides 0-2.3" Front Lift
  • Provides 1-2.6" Front Lift
  • Check which applies
Toyota 4Runner2001Base, Limited, SR5Front4WD · V6 3.4L
  • Provides 0-2.3" Front Lift
  • Provides 1-2.6" Front Lift
  • Check which applies
Toyota 4Runner2001Base, Limited, SR5FrontRWD · V6 3.4L
  • Provides 0-2.3" Front Lift
  • Provides 1-2.6" Front Lift
  • Check which applies
Toyota 4Runner1997–2000Limited, SR5Front4WD · V6 3.4L
  • Provides 0-2.3" Front Lift
  • Provides 1-2.6" Front Lift
  • Check which applies
Toyota 4Runner1997–2000Limited, SR5FrontRWD · V6 3.4L
  • Provides 0-2.3" Front Lift
  • Provides 1-2.6" Front Lift
  • Check which applies
Toyota 4Runner1996LimitedFrontV6 3.4L
  • Provides 0-2.3" Front Lift
  • Provides 1-2.6" Front Lift
  • Check which applies
Toyota 4Runner1996SR5Front4WD · V6 3.4L
  • Provides 0-2.3" Front Lift
  • Provides 1-2.6" Front Lift
  • Check which applies
Toyota 4Runner1996SR5FrontRWD · V6 3.4L
  • Provides 0-2.3" Front Lift
  • Provides 1-2.6" Front Lift
  • Check which applies

Specifications

As Bilstein publishes them.

Extended Length (in)
18.31
Collapsed Length (in)
13.52
Extended Length (mm)
465.0
Collapsed Length (mm)
343.5
Body Diameter (od)
2.65 in.
Piston Diameter
60mm
Shaft Diameter
18mm
Body Design
Snap Ring Grooved Body (Coilover)
Internal Design
Monotube
Finish
Dampers: Zinc Plated/Springs: Black
Reservoir
No
Boot Included
No
Spring Seat Included
Yes
Stroke/travel Length (in)
4.78
Replacement Mounting Kit
B4-KT1-Z303A02
Front Main Spring Rate (lbs/in)
550

Installation & warranty

Bilstein installation instructions (PDF)
Limited Lifetime Warranty · Warranty terms (PDF)

100% genuine Bilstein, from authorized North American distribution.
