BestB8 6112

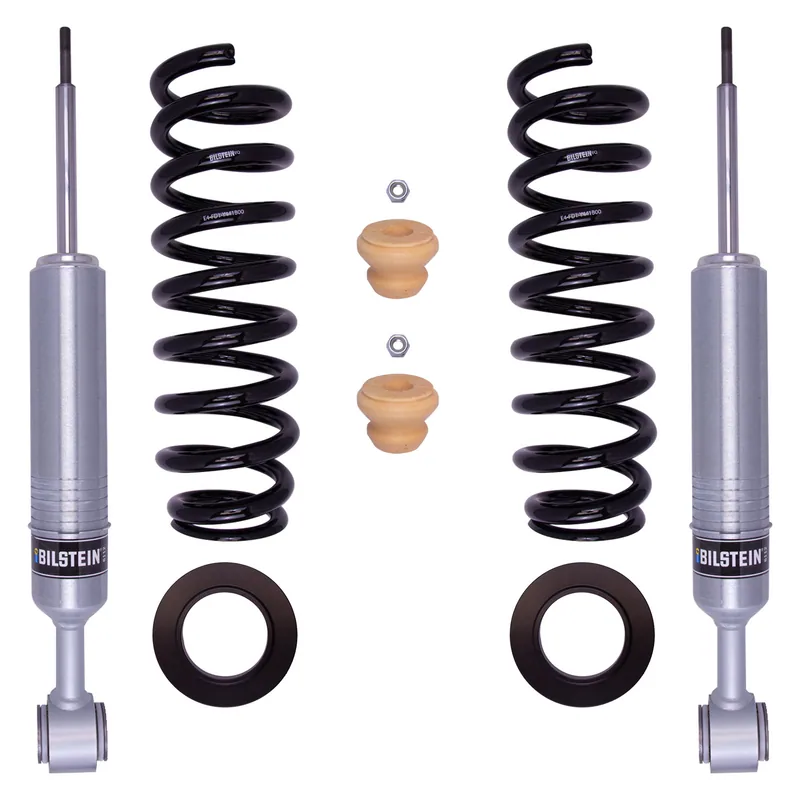

Bilstein 47-310780 B8 6112 Suspension Kit

Sold each · 2 per axle

Call (780) 473-2424

We reply to price requests within one business day.

Will it fit your vehicle?

Want it installed?Eskimo Auto Repair installs Bilstein suspension in Edmonton.

Replaces Bilstein: 47-244566
Country of origin: United States
Box: Ships in Bilstein's own box (about 60 × 30 × 30 cm, 24.2 kg)

100% genuine Bilstein, from authorized North American distribution.

Fitment

32 vehicles, newest years first

Vehicle	Years	Submodels	Position	Drive / body / engine	Notes
Ford F-150	Years	2008	Submodels	THE 60TH ANNIVERSARY EDITION, XL, XLT	Position	Front	Drive / body / engine	4WD · Crew Cab Pickup · V8 5.4L	Notes	Provides 0-2" Front Lift Provides 0.25-2.25" Front Lift Check which applies
Ford F-150	Years	2008	Submodels	THE 60TH ANNIVERSARY EDITION, XL, XLT	Position	Front	Drive / body / engine	4WD · Extended Cab Pickup · V8 5.4L	Notes	Provides 0-2" Front Lift Provides 0.25-2.25" Front Lift Check which applies
Ford F-150	Years	2008	Submodels	Limited	Position	Front	Drive / body / engine	AWD	Notes	Provides 0-2" Front Lift Provides 0.25-2.25" Front Lift Check which applies
Ford F-150	Years	2006–2008	Submodels	Harley-Davidson Edition, King Ranch, Lariat	Position	Front	Drive / body / engine	4WD	Notes	Provides 0-2" Front Lift Provides 0.25-2.25" Front Lift Check which applies
Ford F-150	Years	2004–2008	Submodels	FX4	Position	Front	Drive / body / engine	Crew Cab Pickup	Notes	Provides 0-2" Front Lift Provides 0.25-2.25" Front Lift Check which applies
Ford F-150	Years	2004–2008	Submodels	FX4	Position	Front	Drive / body / engine	Extended Cab Pickup	Notes	Provides 0-2" Front Lift Provides 0.25-2.25" Front Lift Check which applies
Ford F-150	Years	2004–2007	Submodels	XLT	Position	Front	Drive / body / engine	4WD · Crew Cab Pickup · V8 5.4L	Notes	Provides 0-2" Front Lift Provides 0.25-2.25" Front Lift Check which applies
Ford F-150	Years	2004–2007	Submodels	XL, XLT	Position	Front	Drive / body / engine	4WD · Extended Cab Pickup · V8 5.4L	Notes	Provides 0-2" Front Lift Provides 0.25-2.25" Front Lift Check which applies
Ford F-150	Years	2005	Submodels	King Ranch, Lariat	Position	Front	Drive / body / engine	4WD	Notes	Provides 0-2" Front Lift Provides 0.25-2.25" Front Lift Check which applies
Ford F-150	Years	2004	Submodels	Lariat	Position	Front	Drive / body / engine	4WD	Notes	Provides 0-2" Front Lift Provides 0.25-2.25" Front Lift Check which applies
Lincoln Mark LT	Years	2006–2008	Submodels	Base	Position	Front	Drive / body / engine	4WD	Notes	Provides 0.25-2.25" Front Lift

Specifications

As Bilstein publishes them.

Extended Length (in): 22.36
Collapsed Length (in): 16.61
Extended Length (mm): 568.0
Collapsed Length (mm): 422.0
Body Diameter (od): 2.65 in.
Piston Diameter: 60mm
Shaft Diameter: 18mm
Body Design: Snap Ring Grooved Body (Coilover)
Internal Design: Monotube
Finish: Dampers: Zinc Plated/Springs: Black
Reservoir: No
Boot Included: No
Spring Seat Included: Yes
Stroke/travel Length (in): 5.75
Front Main Spring Rate (lbs/in): 500

Installation & warranty

Bilstein installation instructions (PDF)

Limited Lifetime Warranty · Warranty terms (PDF)

100% genuine Bilstein, from authorized North American distribution.

BILSTEIN is a trademark of thyssenkrupp Bilstein GmbH. Eskimo is an independent retailer.
