BestB8 6112

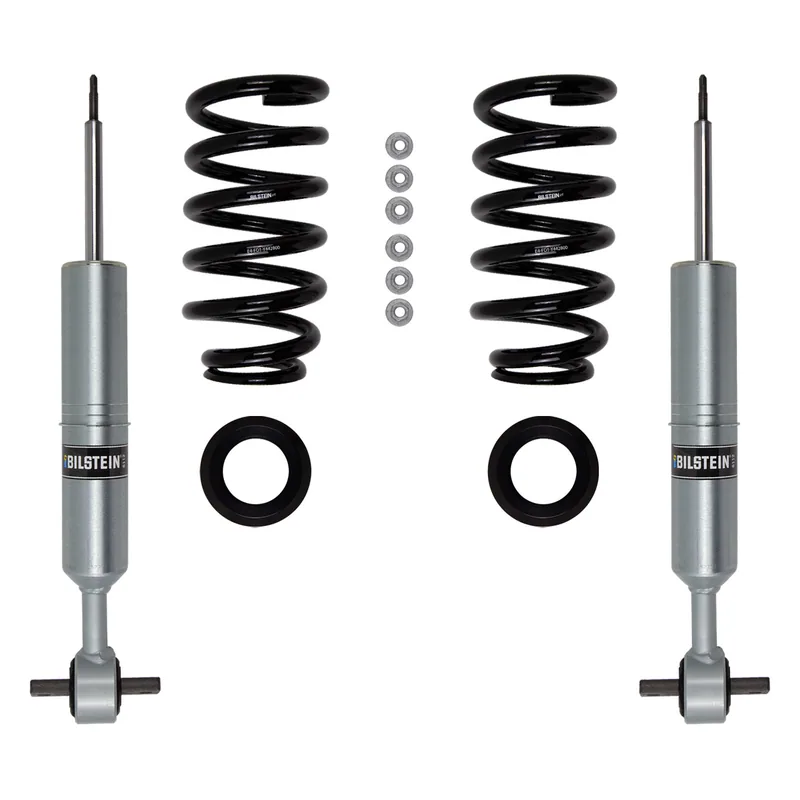

Bilstein 47-309524 B8 6112 Suspension Kit
Sold each · 2 per axle
Call (780) 473-2424
We reply to price requests within one business day.
Will it fit your vehicle?
- Country of origin
- United States
- Box
- Ships in Bilstein's own box (about 62 × 31 × 31 cm, 26 kg)
100% genuine Bilstein, from authorized North American distribution.
Fitment
24 vehicles, newest years first
| Vehicle | Years | Submodels | Position | Drive / body / engine | Notes |
|---|---|---|---|---|---|
| Chevrolet Silverado 1500 | 2022–2026 | Custom Trail Boss, LT Trail Boss | Front | L6 3.0L |
|
| Chevrolet Silverado 1500 | 2019–2026 | Custom Trail Boss, LT Trail Boss | Front | V8 5.3L |
|
| GMC Sierra 1500 | 2020–2026 | AT4 | Front | L6 3.0L |
|
| GMC Sierra 1500 | 2019–2021 | AT4 | Front | V8 5.3L |
|
Specifications
As Bilstein publishes them.
- Extended Length (in)
- 21.97
- Collapsed Length (in)
- 17.78
- Extended Length (mm)
- 558.0
- Collapsed Length (mm)
- 451.6
- Body Diameter (od)
- 2.65 in.
- Piston Diameter
- 60mm
- Shaft Diameter
- 18mm
- Body Design
- Snap Ring Grooved Body (Coilover)
- Internal Design
- Monotube
- Finish
- Dampers: Zinc Plated/Springs: Black
- Reservoir
- No
- Boot Included
- No
- Spring Seat Included
- Yes
- Stroke/travel Length (in)
- 4.19
- Replacement Mounting Kit
- B4-KT1-Z317A00
- Front Main Spring Rate (lbs/in)
- 600
Installation & warranty
Bilstein installation instructions (PDF)
Limited Lifetime Warranty · Warranty terms (PDF)
100% genuine Bilstein, from authorized North American distribution.
BILSTEIN is a trademark of thyssenkrupp Bilstein GmbH. Eskimo is an independent retailer.
