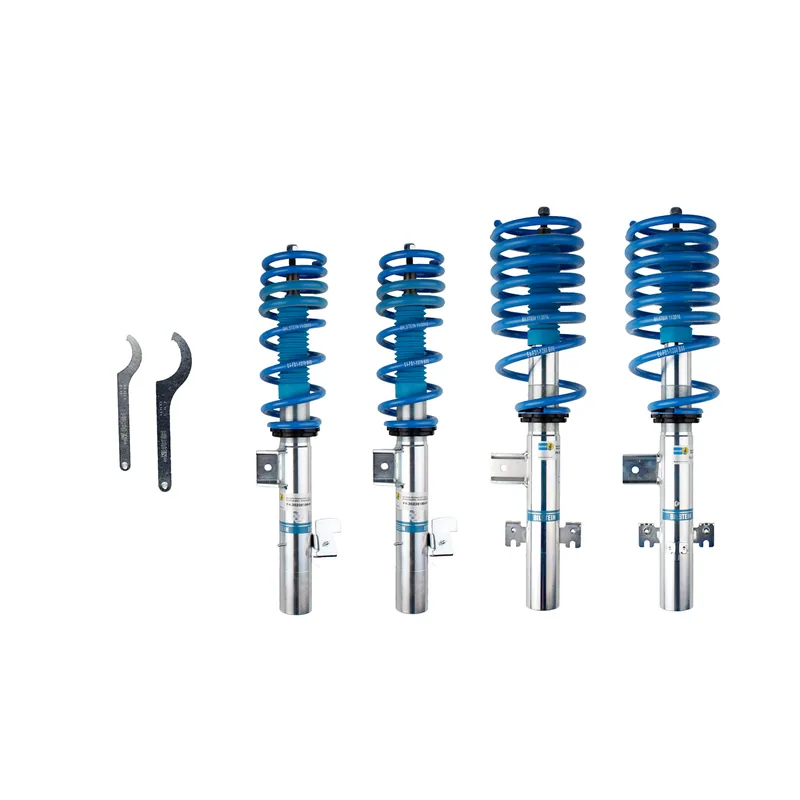

Bilstein 47-276246 B14 PSS Suspension Kit
BestB14 coilovers

Bilstein 47-276246 B14 PSS Suspension Kit

Sold each

Call (780) 473-2424

We reply to price requests within one business day.

Will it fit your vehicle?

Want it installed?Eskimo Auto Repair installs Bilstein suspension in Edmonton.
Country of origin
Germany
Box
Ships in Bilstein's own box (about 68 × 34 × 34 cm, 35.5 kg)

100% genuine Bilstein, from authorized North American distribution.

Fitment

6 vehicles, newest years first

Land Rover Range Rover Evoque2017–2019SE DynamicFront and rearAll
  • Front Lowered Height: 30-50mm, up to 1370kg Axle Load
  • Rear Lowered Height: 30-50mm, up to 1190kg Axle Load
  • Without Electronic Suspension
  • Without Active Stabilizer Control
  • Check which applies
Land Rover Range Rover Evoque2017–2019HSE DynamicFront and rearConvertible
  • Front Lowered Height: 30-50mm, up to 1370kg Axle Load
  • Rear Lowered Height: 30-50mm, up to 1190kg Axle Load
  • Without Electronic Suspension
  • Without Active Stabilizer Control
  • Check which applies

Specifications

As Bilstein publishes them.

Internal Design
Monotube
Finish
Dampers: Zinc/Springs: Blue
Front Main Spring Rate (lbs/in)
400
Front Main Spring Type
Progressive
Rear Main Spring Rate (lbs/in)
400
Rear Main Spring Type
Progressive
Front Tender Spring Rate (lbs/in)
N/A
Rear Tender Spring Rate (lbs/in)
N/A
Spanner Wrench Set
E4-XS1-Z001A00

Installation & warranty

Bilstein general installation instructions (PDF)
Limited 5-Year Warranty · Warranty terms (PDF)

100% genuine Bilstein, from authorized North American distribution.
