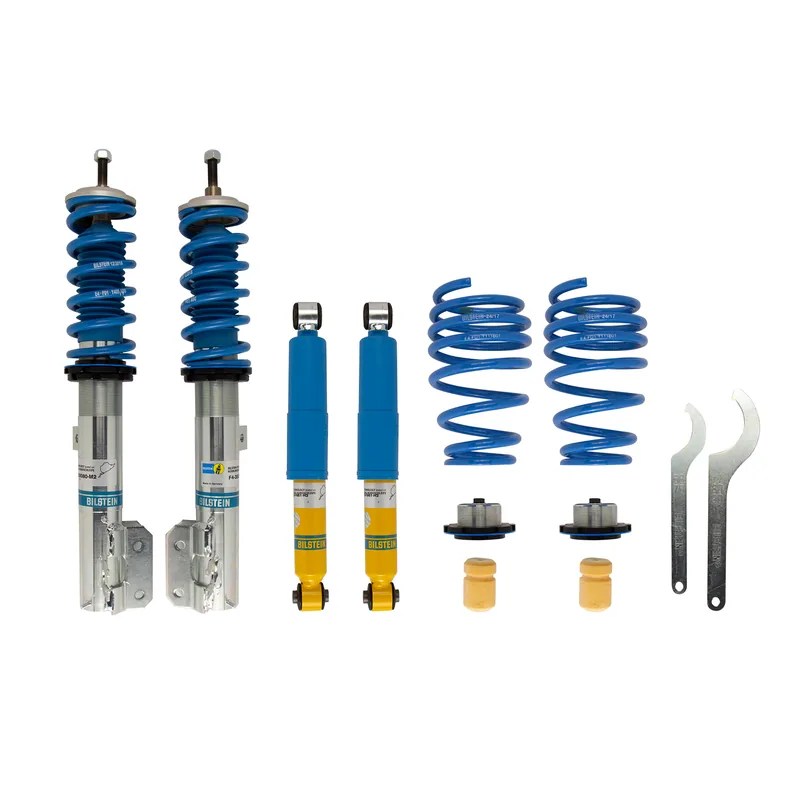

Bilstein 47-270176 B14 PSS Suspension Kit

Sold each

Call (780) 473-2424

We reply to price requests within one business day.

Will it fit your vehicle?

Want it installed?Eskimo Auto Repair installs Bilstein suspension in Edmonton.

Replaces Bilstein: 47-228078
Country of origin: Germany
Box: Ships in Bilstein's own box (about 56 × 28 × 28 cm, 20 kg)

100% genuine Bilstein, from authorized North American distribution.

Fitment

60 vehicles, newest years first

Vehicle	Years	Submodels	Position	Drive / body / engine	Notes
Fiat 500	Years	2019	Submodels	1957 Retro Edition, Abarth, Abarth Cabrio, Lounge, Pop, c Lounge, c Pop	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 20-40mm, up to 830kg Axle Load Rear Lowered Height: 20-40mm, up to 640kg Axle Load Check which applies
Fiat 500	Years	2017–2018	Submodels	Abarth, Abarth Cabrio, Lounge, Pop, c Lounge, c Pop	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 20-40mm, up to 830kg Axle Load Rear Lowered Height: 20-40mm, up to 640kg Axle Load Check which applies
Fiat 500	Years	2016	Submodels	Abarth, Abarth Cabrio, Easy, Lounge, Pop, Sport, Turbo, c Easy, c Lounge, c Pop	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 20-40mm, up to 830kg Axle Load Rear Lowered Height: 20-40mm, up to 640kg Axle Load Check which applies
Fiat 500	Years	2014–2015	Submodels	Abarth, Abarth Cabrio, Lounge, Pop, Sport, Turbo, c Lounge, c Pop	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 20-40mm, up to 830kg Axle Load Rear Lowered Height: 20-40mm, up to 640kg Axle Load Check which applies
Fiat 500	Years	2013	Submodels	Abarth, Lounge, Pop, Sport, Turbo, c Lounge, c Pop	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 20-40mm, up to 830kg Axle Load Rear Lowered Height: 20-40mm, up to 640kg Axle Load Check which applies
Fiat 500	Years	2012	Submodels	Abarth, Gucci, Lounge, Pop, Sport, c Gucci, c Lounge, c Pop	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 20-40mm, up to 830kg Axle Load Rear Lowered Height: 20-40mm, up to 640kg Axle Load Check which applies

Specifications

As Bilstein publishes them.

Internal Design: Monotube
Finish: Dampers: Zinc Front Yellow Rear/Springs: Blue
Front Main Spring Rate (lbs/in): 286
Front Main Spring Type: Linear
Rear Main Spring Rate (lbs/in): 217
Rear Main Spring Type: Progressive
Front Tender Spring Rate (lbs/in): N/A
Rear Tender Spring Rate (lbs/in): N/A
Spanner Wrench Set: E4-XS1-Z001A00

Installation & warranty

Bilstein installation instructions (PDF)

Limited 5-Year Warranty · Warranty terms (PDF)

100% genuine Bilstein, from authorized North American distribution.
