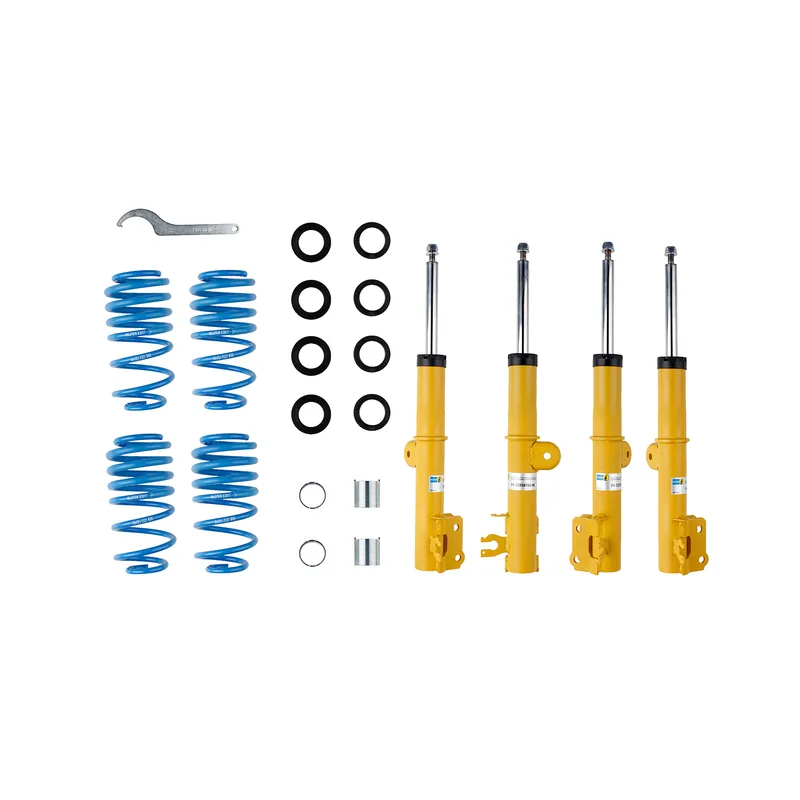

Bilstein 47-259751 B14 PSS Suspension Kit
BestB14 coilovers

Bilstein 47-259751 B14 PSS Suspension Kit

Sold each

Call (780) 473-2424

We reply to price requests within one business day.

Will it fit your vehicle?

Want it installed?Eskimo Auto Repair installs Bilstein suspension in Edmonton.
Country of origin
Germany
Box
Ships in Bilstein's own box (about 64 × 32 × 32 cm, 30.1 kg)

100% genuine Bilstein, from authorized North American distribution.

Fitment

16 vehicles, newest years first

Fiat 500X2017–2018Lounge, Pop, Sport, Trekking, UrbanaFront and rearFWD
  • Front Lowered Height: 20-40mm, up to 1050kg Axle Load
  • Rear Lowered Height: 20-40mm, up to 1050kg Axle Load
  • Check which applies
Fiat 500X2016PopFront and rearAll
  • Front Lowered Height: 20-40mm, up to 1050kg Axle Load
  • Rear Lowered Height: 20-40mm, up to 1050kg Axle Load
  • Check which applies
Fiat 500X2016Easy, Lounge, Sport, Trekking, Trekking PlusFront and rearFWD
  • Front Lowered Height: 20-40mm, up to 1050kg Axle Load
  • Rear Lowered Height: 20-40mm, up to 1050kg Axle Load
  • Check which applies

Specifications

As Bilstein publishes them.

Internal Design
Twintube
Finish
Dampers: Yellow/Springs: Blue
Front Main Spring Rate (lbs/in)
293
Front Main Spring Type
Progressive
Rear Main Spring Rate (lbs/in)
221
Rear Main Spring Type
Progressive
Front Tender Spring Rate (lbs/in)
N/A
Rear Tender Spring Rate (lbs/in)
N/A

Installation & warranty

Bilstein installation instructions (PDF)
Limited 5-Year Warranty · Warranty terms (PDF)

100% genuine Bilstein, from authorized North American distribution.
